Circuit with two batteries and three resistors - Find current

2 replies · 5K views · last reply
jperentosh
Messages
8
Reaction score
0

Homework Statement



Find the current through R1, R2, and R3 for the attached diagram.

Homework Equations



Ohm's Law
V=IR
I=V/R
etc.

Attachments

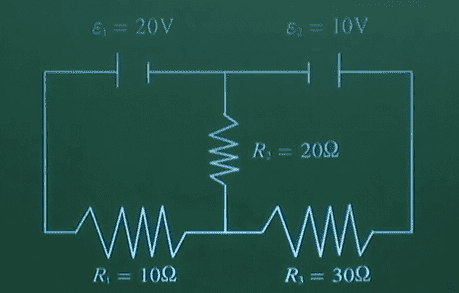

  • Circuit schematic with two batteries, ε1 = 20V and ε2 = 10V, on top, and three resistors: R1 = 10Ω on the left bottom branch, R2 = 20Ω in the middle vertical branch, and R3 = 30Ω on the right bottom branch.
    24.4 KB · Views: 1,195
jperentosh, you'll have to make an attempt, or at least lay out your thoughts on how to proceed, so that we can determine how to help you.

2. Homework Equations

Ohm's Law
V=IR
I=V/R

KVL?
KCL?

Simultaneous equations.
