# Control Systems, State space to Transfer Function

• k87
In summary, The conversation is about converting a dynamics system from a state space representation to a transfer function. The participants are at the stage of solving for the transfer function and are seeking help with the next step. They have a pictorial representation and corresponding transfer functions, but are unsure how to obtain the numerators.
k87
Hi guys,

Need a little help with an example my tutor and I are trying to work through.

We're converting a dynamics system from a state space representation to a transfer function.

This is where we are at so far...

[s^2 + (C/Mb)S + (K1/Mb), -((C)S + K1)/Mb; -((C)S + K1)/Mw, S^2 + (C/Mw)S + (K1+K2)/Mw] [X3;X4] = [0; k2/mW]*Zr(.)

Zr(.) being the differential of Zr which in this case is velocity.

We have what we think is the next step but I'm still not entirely certain so would appreciate some help

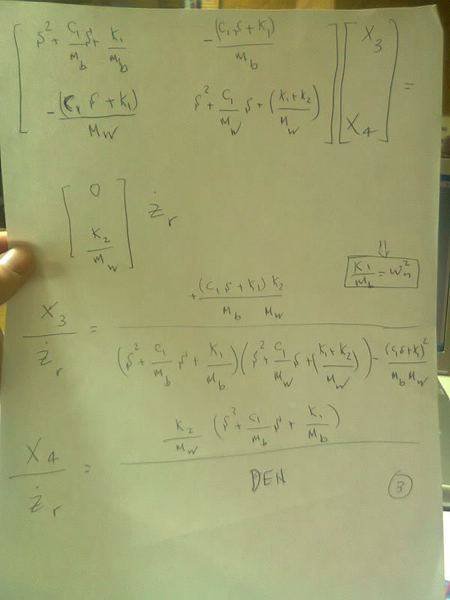

This is it in pictoral form and the corresponding transfer functions, I don't understand how to get the numerators though
