Engineering Determining the Bragg plane spacing from diffraction pattern

  • Thread starter Thread starter baseballfan_ny
  • Start date Start date
  • Tags Tags
    Diffraction pattern
Click For Summary
The discussion focuses on determining the Bragg plane spacing from a diffraction pattern exhibiting 4-fold rotational symmetry. The user is struggling to measure the horizontal spacing between adjacent lattice points, denoted as d*, due to the non-uniform separation of spots along the horizontal axis. Despite the varying distances, the user observes a regular pattern in the spacing. They also inquire about the diameter of the film disc, which may impact their measurements. Accurate measurement of d* is essential for calculating the repeat distance in the crystal using Bragg's law.
baseballfan_ny
Messages
92
Reaction score
23
Homework Statement
Figure 1 shows a single 2D slice of a 3D diffraction pattern. The wavelength used is 0.975 Å and the distance between the crystal and detector is 13.7 cm.
1.1) What symmetry and symmetry axes do you see in this diffraction pattern? Please identify by specifying the type of symmetry (e.g. 3-fold rotation symmetry) and the direction of the axis (e.g. 3-fold rotation symmetry along the horizontal axis).
1.2) The diffraction pattern can be described as a 3D lattice with spots at lattice points of varying intensity. Measure the distance between adjacent lattice points along the horizontal axis?
1.3) Using Bragg’s Law to calculate, what is the repeat distance in the crystal that gives rise to the lattice spacing between diffraction spots along the horizontal axis?
Relevant Equations

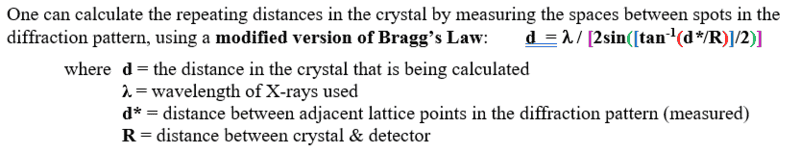

Modified Bragg's Law (given, also shown below)
$$ d = \frac {\lambda} {2\sin[ \frac {(\tan^{-1}(\frac {d^*} {R}))} {2}] } $$
##d## = distance in crystal
##\lambda## = wavelength used
##d^*## = measured distance between adjacent lattice points in the diffraction pattern
##R## = distance between crystal and detector



1.1) I see 4-fold rotational symmetry about the axis going through the center of the diffraction pattern perpendicular to the plane of the page

1.2) and 1.3) This is where I'm stuck. Once I get the horizontal spacing between adjacent lattice points, ##d^*##, the repeat distance in the crystal ##d## would be relatively straightforward to calculate using the above version of Bragg's law in 1.3. However, I'm confused about measuring ##d^*## along the horizontal axis of the diffraction pattern in 1.2. The separation between any two spots in the diffraction-pattern along the horizontal axis is not uniform, so how do I measure "the distance between adjacent lattice points" along the horizontal axis if its constantly varying?

Edit: LaTeX delimiters

Physics news on Phys.org
Not all of the spots are the same strength but the spacing looks pretty regular to me. What is the diameter of the film disc?
