Have You Calculated the Maximum Bending Moment Yet?

Thread starter Ashish181
Start date Mar 7, 2020
Tags

Bending Bending moment Maximum Moment

1 reply · 1K views · last reply Mar 7, 2020

Ashish181

Thread starter
Mar 7, 2020

#1

Homework Statement: Show by using static equilibrium equations that maximum bending moment occurs at mid-span when the beam is loaded as shown in the figure .

Relevant Equations: Summation of Moment at either of the support =0
Sum of vertical forces = 0

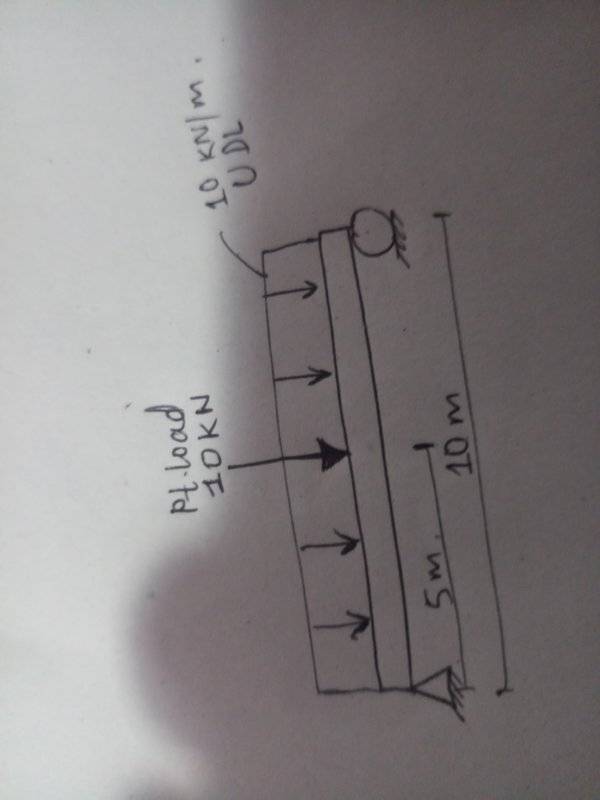

Hand-drawn beam diagram, rotated sideways: a simply supported beam 10 m long with a pin support at the left end and a roller at the right, loaded by a 10 kN point load at 5 m and a 10 kN/m UDL on the top surface, with arrows pointing down onto the beam.

Discussion

Lnewqban

Homework Helper

Gold Member

Mar 7, 2020

#2

Welcome, ashish181!

What work have you done so far?
Any schematic with magnitudes and directions of forces as described in the problem?
