How Do You Determine Voltage at a Node Using KCL?

  • Thread starter Chandasouk
  • Start date
  • Tags
    Voltage
In summary, the conversation discusses the steps for solving a homework problem involving KCL equations and resistors. The participants are trying to determine the correct KCL equation for node e and the placement of + and - signs on the resistors. They also consider the current entering and leaving node e and the path of current through the circuit.
  • #1
Chandasouk
165
0

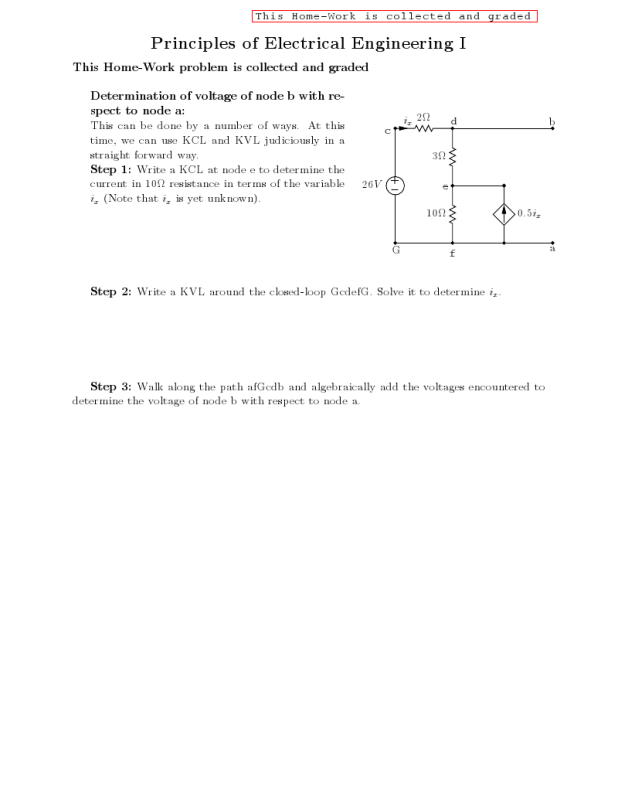

http://img.photobucket.com/albums/v405/RagingCamel/viewer.png

I'm trying to answer the steps on this homework but have no idea what i am doing.

For the first step, at node e the KCL equation would just be ix+0.5ix=0?

Since ix and 0.5ix are both entering the node of e?

Also, where are the + and - signs placed on the resistors?

Physics news on Phys.org
  • #2
Chandasouk said:
http://img.photobucket.com/albums/v405/RagingCamel/viewer.png

For the first step, at node e the KCL equation would just be ix+0.5ix=0?

Since ix and 0.5ix are both entering the node of e?

No, this is not right. Sum of currents entering a node = Sum of currents leaving a node. 1.5ix=current passing the 10ohm resistor which is not zero.

  • #3
How do I find what is entering/leaving node e?

From node c i see current i_x goes through 2 ohms, reaches node d and splits into two paths, one heading towards node b and the other across resistor 3 ohms. So, the current through 3 ohms is entering node e?

I'm pretty lost as to what to do
