Looking for help improving 3d printed sharpie-shooter design

  • Thread starter Thread starter gmuir593
  • Start date Start date
  • Tags Tags
    Design Mechanism
AI Thread Summary
The discussion focuses on improving a 3D-printed Sharpie shooter design, specifically addressing issues with the clamping mechanism that fails to hold the Sharpie securely. The user seeks a more reliable release mechanism and increased shooting power while maintaining a compact size of no more than 17mm. Currently, the shooter can launch the Sharpie about 2 feet vertically, but the goal is to extend this range to 4 feet without compromising the integrity of the assembly. Suggestions for alternative or more efficient mechanisms are requested to enhance performance. The thread was ultimately closed due to unrelated comments and recommendations for different activities.
gmuir593
Messages
2
Reaction score
0
TL;DR Summary

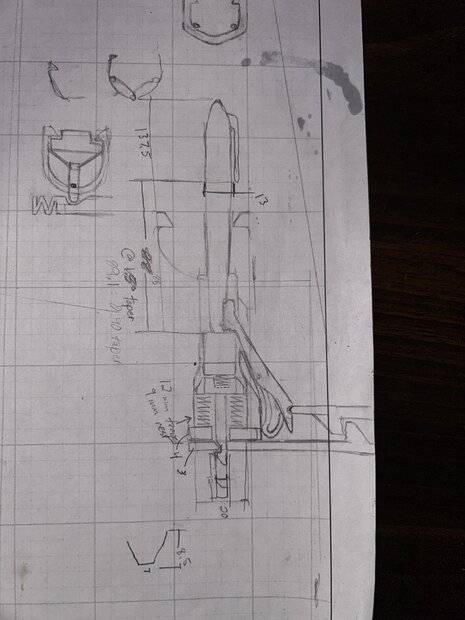

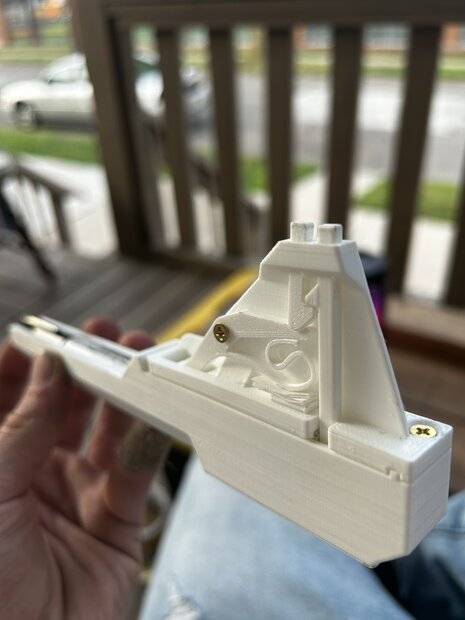

I’m printing a small carrying case for art supplies and want to incorporate a sharpie dispenser/launcher. A spring loaded mechanism with two buttons for easy dispensing or missile launching the sharpie. I have a prototype but I feel like it could be improved. Apologies for the pictures and their awful display of the contraption’s insides.

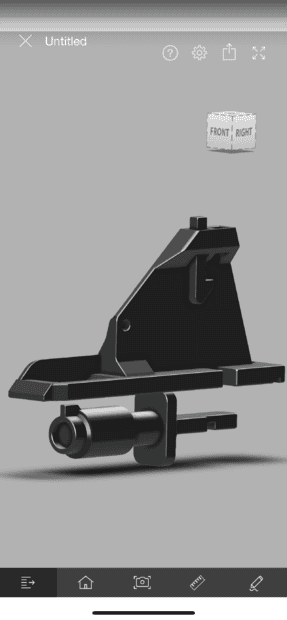

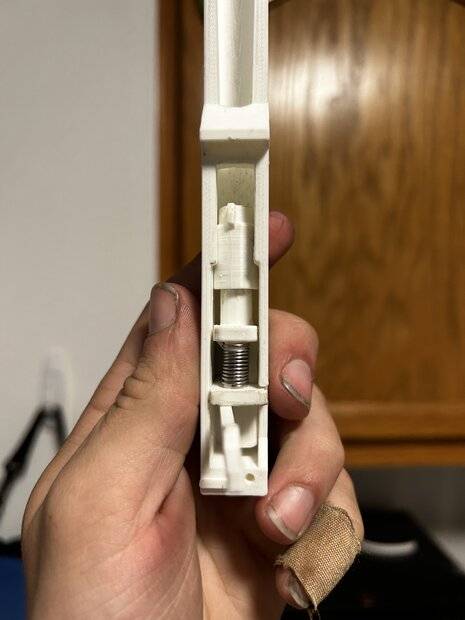

The first button releases the front slider which slides through a key way in the lever while it unclamps the sharpie - the lever is supposed to clamp down on the sharpie but just doesn’t. The first slider has a spring inside and is released in the second picture. The second button pushes down on the first and releases the two bigger springs along with the front slider.

I’m mainly looking for a more robust and reliable releasing mechanism and maybe a way to make more power in the shooting mechanism without the whole assembly being more than 17mm. It can shoot about 2ft straight up and I want to get that to 4ft without things breaking (it’s a gift for my dad so I want him to be able to shoot my younger siblings from reasonable distances). It can be as long or as tall as it needs to be. Any ideas on different or more efficient mechanisms would be greatly appreciated!

Engineering news on Phys.org


This may help


  • Like
Likes gmuir593
gmuir593 said:
(it’s a gift for my dad so I want him to be able to shoot my younger siblings from reasonable distances)
Sounds like a loving family. I'd recommend taking up paintball competitions instead as a family activity. Due to several reports, this thread will be closed now.
