Matlab -- how to make a smooth contour plot?

In summary, the conversation was about representing data with 2 variables in a 2D format using the contourf function in MATLAB. The speaker was experiencing coarse-granularity in their current plot and wanted to know if there was a way to make the contour color vary smoothly. They had tried using imagec but it was not working and were considering generating denser data or using a different software. The expert suggested using the "shading interp" option in MATLAB or using interpolation functions such as interp2() or griddedInterpolant() to generate more data points.
  • #1
kelvin490
Gold Member
228
3
I want to represent data with 2 variables in 2D format. The value is represented by color and the 2 variables as the 2 axis. I am using the contourf function to plot my data:

load('data.mat')
cMap=jet(256);
F2=figure(1);

[c,h]=contourf(xrow,ycol,BDmatrix);
set(h, 'edgecolor','none');

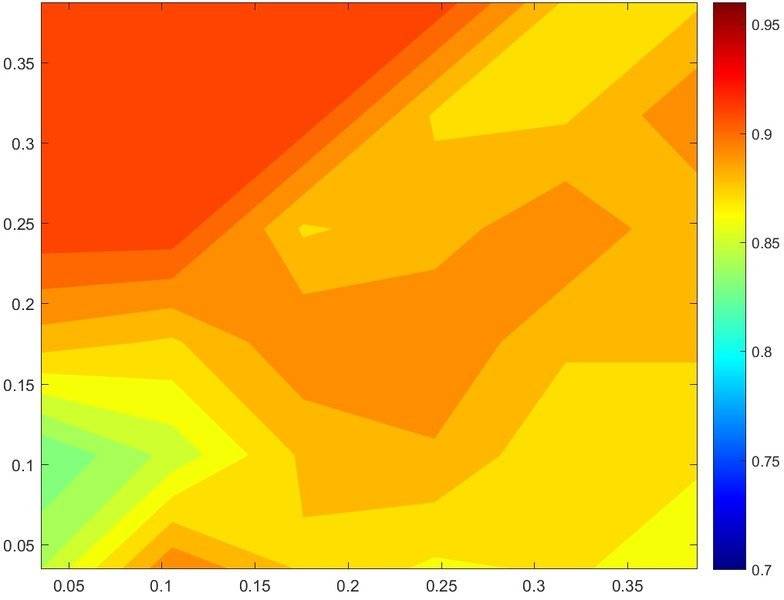

Both xrow and ycol are 6x6 matrices representing the coordinates. BDmatrix is the 6x6 matrix representing the corresponding data. However, what I got the picture as attached.

Would it be possible for the contour color to vary smoothly rather than appearing as straight lines joining the data points? The problem of this figure is the coarse-granularity which is not appealing. I have tried to replace contourf with imagec but it seems not working. I am using MATLAB R2015b.


Attachments

  • BD.jpg
    25 KB · Views: 1,901
Physics news on Phys.org
  • #2
You are seeing the effects of plotting on just a 6x6 grid. The contours would look smooth if your data were on, say, a 200x200 grid. I don't know what to do except to generate denser data or maybe look for software that uses different contour generation methods.

  • #4
Try using interp2() or griddedInterpolant() to make more data point locations before passing the image to contourf().
