Predicting the electron domain and molecular geometries

[Joe20]

Homework Statement

Predict the electron domain and molecular geometries around the oxygen atom of molecule A using VSEPR.

Relevant Equations

The answer for electron domain is tetrahedral and molecular geometry is bent/ v-shaped.

I would like to know how can we determine or tell from the diagram that the electron domain is tetrahedral and molecular geometry is bent/ v-shaped?

thanks



[berkeman]

Homework Statement: Predict the electron domain and molecular geometries around the oxygen atom of molecule A using VSEPR.
Relevant Equations: The answer for electron domain is tetrahedral and molecular geometry is bent/ v-shaped.

I would like to know how can we determine or tell from the diagram that the electron domain is tetrahedral and molecular geometry is bent/ v-shaped?

Since this is a schoolwork question, please tell us what you think the answers are and why. Thanks.



[chemisttree]

Homework Statement: Predict the electron domain and molecular geometries around the oxygen atom of molecule A using VSEPR.
Relevant Equations: The answer for electron domain is tetrahedral and molecular geometry is bent/ v-shaped.

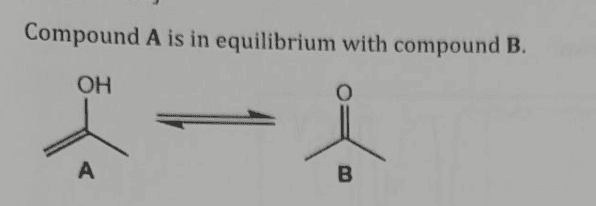

View attachment 326883

I would like to know how can we determine or tell from the diagram that the electron domain is tetrahedral and molecular geometry is bent/ v-shaped?

thanks

Trick question.
