Refrigeration - Explain the picture please

In summary, the conversation is about a picture of a lab setup with a remote sensing bulb attached to a condenser. The person is asking for an explanation of why the bulb is there and if the wire sticking out is a capillary tube. The responder clarifies that the wire is indeed the capillary tube and the remote sensing bulb is part of the expansion valve/capillary tube.
  • #1
Altairs
127
0

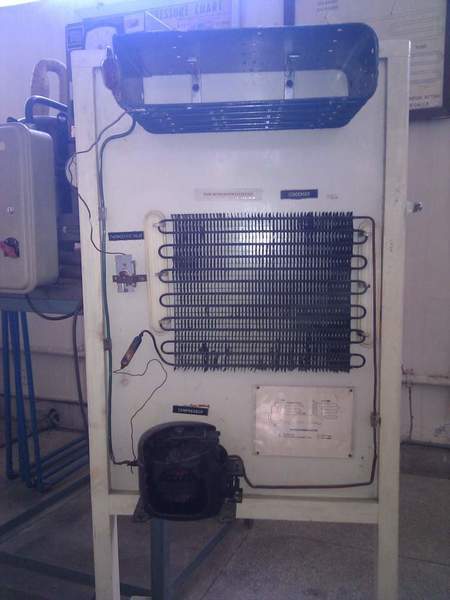

Can someone please explain the picture attached below ? It has been taken from a lab where the supervisor actually failed to tell what is the remote sensing bulb doing attached to a condenser. I would like to know that why is it there and is the wire that is sticking out a capillary tube? If not then where is it or where should it be and what is that wire for ?

My knowledge is that a capillary tube is what goes between a condenser and an evaporator and the remote sensing bulb is a part of the expansion valve/ capillary tube.

Please correct.


Attachments

  • IMG_20100921_090636.jpg
    27.7 KB · Views: 439
Engineering news on Phys.org
  • #2
That wire is the capillary tube
