Solving Circuit Analysis Problem: Finding R and V(t) for Given Conditions

Click For Summary
SUMMARY

The discussion focuses on solving a circuit analysis problem involving a capacitor and resistors to determine the resistance R and the voltage v(t) at specific time intervals. The initial conditions are given as Vc(0)=3V and ic(t)=e^-50t for t>0. The approach involves applying Kirchhoff's Voltage Law in two loops: one with a 2-ohm resistor and the capacitor, and the other with resistors R and 2 ohms. The use of Thevenin equivalents is suggested to analyze the resistance seen by the capacitor.

PREREQUISITES
  • Understanding of Kirchhoff's Voltage Law
  • Familiarity with capacitor current equations
  • Knowledge of Thevenin equivalents in circuit analysis
  • Basic concepts of time constants in RC circuits
NEXT STEPS
  • Study Kirchhoff's Voltage Law applications in circuit analysis
  • Learn about Thevenin's Theorem and its practical applications
  • Explore time constant calculations in RC circuits
  • Investigate the relationship between capacitor current and voltage in transient analysis
USEFUL FOR

Electrical engineering students, circuit designers, and anyone involved in analyzing transient responses in electrical circuits.

whatphysics
Messages
29
Reaction score
2
✱✱ member reminded to use the 3-header homework template provided ✱✱
There is a question I am not sure of how I should start/approach. Any help would be appreciated, thanks.

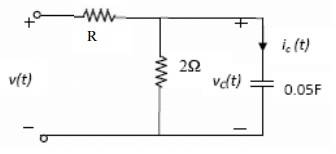

Vc(0)=3V and ic(t)=e^-50t for t>0 and t=0. Find the value of R and voltage v(t) for t>0 and t=0


Attachments

  • Untitled.jpg
    4.2 KB · Views: 446
  • Like
Likes   Reactions: CWatters
Physics news on Phys.org
Apply Kirchhoff' Voltage rule in the two loops ,
first in the loop with 2 ohm resis. and capacitor to find voltage
and then in the loop with 2 resistors (R and 2 ohm) to find R !

I might start by examining the form of the capacitor current. There's a time constant that will have to involve the value of R in some way... Are you familiar with Thevenin equivalents? What resistance will the capacitor "see" when it's following ic(t)=e^-50t ? Can you disentangle R from that?
