Visualize Electromagnetic Fields from Dipole Antennas

AI Thread Summary
A real-time web-based simulation has been developed to visualize the electric and magnetic fields radiated by dipole antennas. Users are experiencing access issues due to an "unmatching security certificate" on the original link. The creator acknowledges the problem and believes it has been addressed. A new link has been provided for better access to the simulation. The discussion highlights the importance of resolving security certificate issues for user accessibility.
Rotem Tsafrir
Messages
5
Reaction score
5
TL;DR Summary
Hey everyone!
I recently built a real-time web-based simulation to help visualize the electric and magnetic fields radiated by dipole antennas:

https://antennasim.com


The simulation lets you:

• Add multiple dipole antennas anywhere on the canvas

• Set antenna phase and frequency

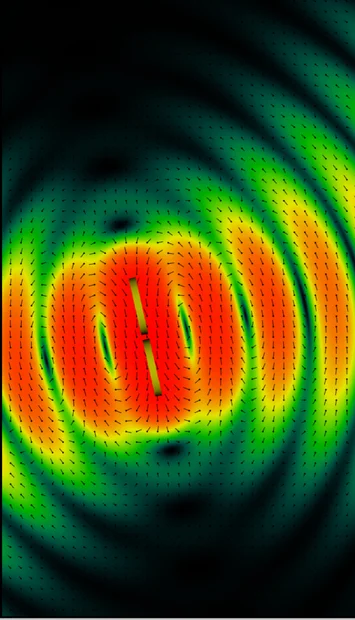

• Visualize the E-field, B-field, and Poynting vector in 2D

• Observe near-field and far-field interactions

Engineering news on Phys.org
Rotem Tsafrir said:
I recently built a real-time web-based simulation to help visualize the electric and magnetic fields radiated by dipole antennas:

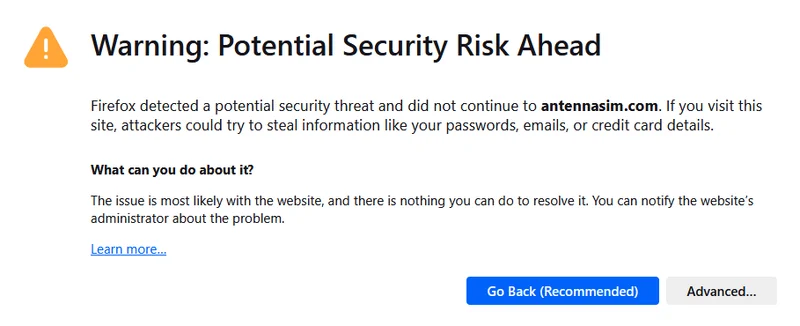

My web protection software blocks access to your link because it has an "unmatching security certificate".

Reply
  • Like
Likes Rotem Tsafrir
renormalize said:
My web protection software blocks access to your link because it has an "unmatching security certificate".
Yeah, I'm getting the same error/warning.


Reply
  • Like
Likes Rotem Tsafrir
