What Are Corona Rings on High Voltage Insulators?

  • Thread starter Thread starter DaveE
  • Start date Start date
  • Tags Tags
    Insulators
AI Thread Summary
Corona rings are devices used on high voltage insulators to reduce the electric field strength at the insulator's ends, thereby minimizing the risk of corona discharge. They help maintain a long creepage path, which is essential for preventing electrical breakdown. The term "corona ring" is used to describe these components, which are often implemented in high voltage applications like voltage multipliers. Research indicates that corona rings can help equalize the electric field around circuits, enhancing overall performance and safety. Understanding their function is crucial for effective high voltage system design.
DaveE
Science Advisor
Gold Member
2024 Award
Messages
4,390
Reaction score
4,048

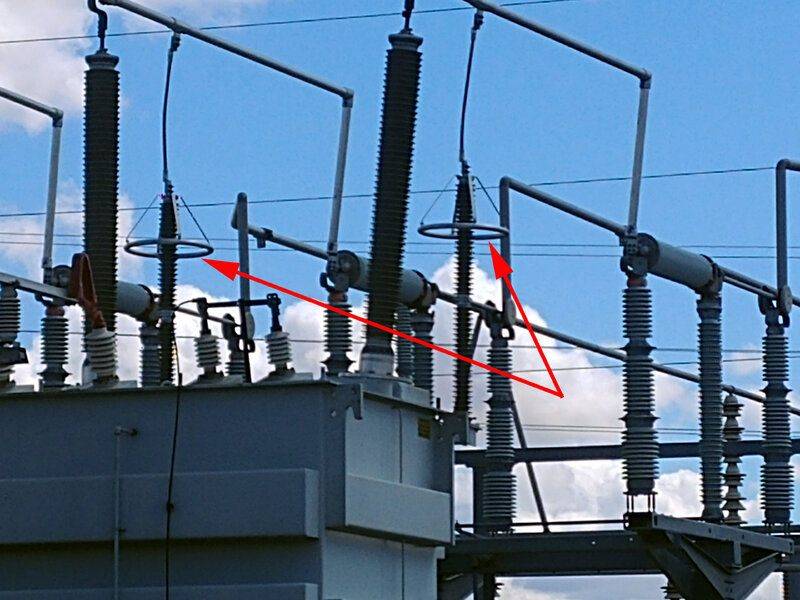

Please explain what these things are for. I'm guessing they reduce the e-field strength at the end of the insulator while maintaining a long creepage path, maybe? Or something about reducing corona discharge?

What are they called? I can't seem to get a good search term.


Engineering news on Phys.org
Found it. It's a "corona ring". More than I really wanted to know in this paper. Although there are some things I still don't really have a good feel for.

https://www.researchgate.net/figure/230-kV-three-dimension-model-of-clean-insulator-with-corona-ring_fig1_303737136

Reply
  • Like
  • Informative
Likes artis, Rive, nsaspook and 2 others

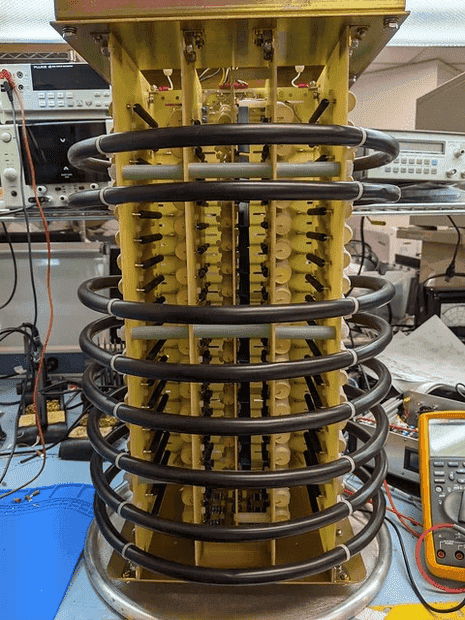

200kV voltage multiplier with corona rings to help equalize the electric field around the circuits.

Reply
  • Like
  • Wow
Likes artis, Klystron, DaveE and 1 other person
