What is the suitable capacitor value for a three level flying capacitor?

  • Thread starter Thread starter JermziePV
  • Start date Start date
  • Tags Tags
    Capacitor Flying
Click For Summary
SUMMARY

The suitable capacitor value for a three-level flying capacitor inverter operating at 500V with a load resistance of 1K ohm, inductance of 0.1H, and a switching frequency of 10KHz is determined by the output ripple requirements and load currents. The discussion highlights the importance of understanding the relationship between capacitance, current, and voltage to calculate the appropriate capacitor size. A reference tutorial from Analog Devices provides foundational knowledge on capacitor sizing for similar applications. Additionally, simulation results from a related NPC inverter setup indicate a capacitance of 2200 µF, which may serve as a benchmark for the flying capacitor design.

PREREQUISITES
  • Understanding of three-phase inverter systems
  • Familiarity with capacitor sizing and ripple voltage calculations
  • Knowledge of PSIM simulation software for circuit analysis
  • Basic principles of power electronics and switching frequency impacts
NEXT STEPS
  • Research "Capacitor sizing for three-phase inverters" to understand design considerations
  • Learn about "PSIM simulation for power electronics" to analyze inverter performance
  • Study "Output ripple voltage calculations" to determine acceptable limits for capacitor selection
  • Explore "Three-level NPC inverter design" for comparative analysis with flying capacitor inverters
USEFUL FOR

Electrical engineers, power electronics designers, and students studying inverter technology will benefit from this discussion, particularly those focused on optimizing capacitor values in three-phase inverter applications.

JermziePV
Messages
7
Reaction score
0
Hi All,

I would like to know what is the suitable capacitor value to be used in a three level flying capacitor(three-phase) with the input of voltage = 500V and resistance(load)=1K ohm while the inductance(load)=0.1H and also the switching frequency is 10KHz?

Can someone brief me on how to calculate the capacitor value? Sorry for the troubles,many thanks.:redface:

Engineering news on Phys.org
Sorry --- need more info --- Is this a tripler? Is it feeding 1K in series with 0.1H? What output ripple do you want to maintain.

The output ripple requirements, switching frequency, and load currents generally drive the capacitor size based on the basic relationship between capacitance, current, and voltage.

There are numerous tutorials on the considerations, starting with doublers. For example http://www.analog.com/static/imported-files/tutorials/ptmsect4.pdf

But, maybe you are asking about something else entirely.

Last edited by a moderator:

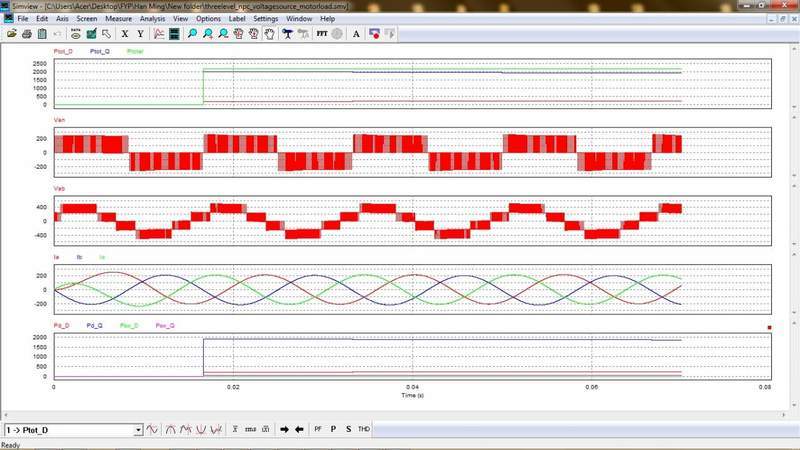

hereby i attached the waveform picture of npc inverter. here is the parameters that use for npc inveter.
__________________________________________________________________________________
DC Bus Voltage : 500 Vdc
AC Output : 250 V (line-line, rms), 60 Hz, 0.8 power factor (lagging)
Switching Frequency : 8 kHz
Capacitance : 2200 µF
Resistance : 1 Ω
Squirrel-cage Ind. M. : default
Mechanical Load : default
__________________________________________________________________________________

and here is the result that i get from simulation for npc inverter.
__________________________________________________________________________________
The following losses results are obtained from the PSIM simulation:
Diode Conduction Losses : 0236.54 W
Diode Switching Losses : 000.060 W
Diode Total Losses : 0236.60 W
Transistor Conduction Losses : 1868.69 W
Transistor Switching Losses : 0067.90 W
Transistor Total Losses : 1936.60 W
Total Losses per Module : 2173.20 W
Line to neutral voltage : 256 V
Line to line voltage : 499 V
Output current line A : 56.63 A
__________________________________________________________________________________

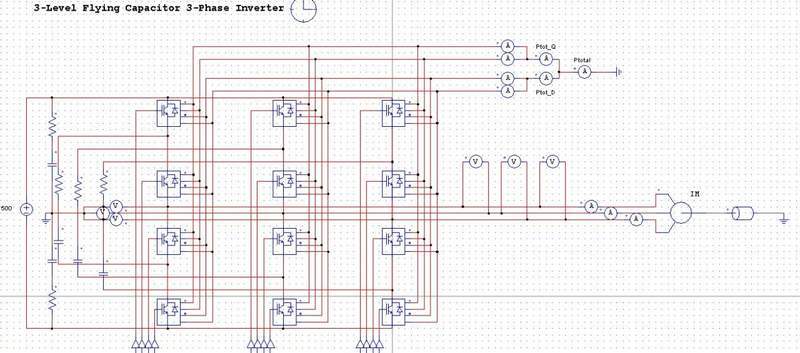

is it possible for me to get the exact waveform like 3 level npc 3 phase inverter, but using 3 level flying capacitor 3 phase inverter method? what would be the value for the capacitor and others? i also attached the schematic for 3 level flying capacitor 3 phase inverter. what should i put the value for all component?


Attachments

  • npc.jpg
    53.7 KB · Views: 655
  • flyingcapacitor.jpg
    44 KB · Views: 692
oh btw mr. meBigGuy, flying capacitor is for convert dc to ac, not stepping up voltage. :)

I know nothing about them. Sorry

  • Like
Likes   Reactions: 1 person
nah, it's okay bro. thank u for ur time! :)
