What's in an electronics hobbyist's toolbox?

  • Thread starter Thread starter MATLABdude
  • Start date Start date
  • Tags Tags
    Electronics
AI Thread Summary
The discussion revolves around essential tools and components for an electronics hobbyist's toolbox. Key items mentioned include multimeters, various screwdrivers, soldering stations, and a range of hand tools like pliers and tweezers. Participants emphasize the importance of having a good collection of components, such as resistors, capacitors, and integrated circuits, along with power supplies and breadboards for prototyping. Many contributors also highlight the value of specialized tools like magnifying glasses and oscilloscopes for detailed work and troubleshooting. Overall, the conversation underscores the necessity of a well-rounded toolkit for effective electronics experimentation and repair.
  • #101
Pretty nifty rig! My bad, VR Voltage regulator.. since they often come in the TO220 package

Engineering news on Phys.org
  • #102
Rx7man said:
Pretty nifty rig! My bad, VR Voltage regulator.. since they often come in the TO220 package
no, not voltage regulators and other IC's
they are complex devices with multiple semiconductors and other parts

  • #103
jedishrfu said:
One more cool tool for the toolbox with long lasting batteries:

http://sliderulemuseum.com/Archive/XXX_Concise_300.jpg

and still manufactured by Concise:

http://www.concise.co.jp/en/products/detail.php?product_id=8

and someone even wrote a manual for it:

https://www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=5&ved=0ahUKEwiv2ar6tsjOAhUOx2MKHeTmA-wQFgg4MAQ&url=https://hobbyutil.googlecode.com/files/Concise300_7Sep2012.pdf&usg=AFQjCNGtrbC_UZQ1beZk-t6RnJZS0gn8_A&sig2=9HYp3w5QY-hmFEvLYhTDaQ&bvm=bv.129759880,d.eWE
I have a really nice linear slide rule.. about all I can do with it is multiply/divide though.. it's got about 20 darned scales on it for everything from trig, logs, roots, and a bunch of stuff I'm not sure what it is

  • #105
Thanks, though its been sitting in it's case for 20 years, I suspect it'll sit there for 20 more years.

Good link, I've bookmarked it so I can come back to it in 2050 :P... I'd like to learn it just for curiosities sake

  • #106
Rx7man said:
Thanks, though its been sitting in it's case for 20 years, I suspect it'll sit there for 20 more years.

Good link, I've bookmarked it so I can come back to it in 2050 :P... I'd like to learn it just for curiosities sake

The numbers might fade away as do so many things when they are no longer wanted. :-(

Cheerup, Mr Slide Rule! We have hope that your owner will reconsider his insensitive and uncaring view of your worth while he browses this post with his superfast and really cool smart phone.

PS: Actually its more likely the web page will vanish.

  • #107
Has anybody said coffee/Red Bull yet?

  • #108
RaulTheUCSCSlug said:
Has anybody said coffee/Red Bull yet?
LOL. But what's wrong with that suggestion if you do rework on your SMT circuits under a binocular microscope?

:smile:

  • #109
Two small additions:

- nail polish. Handily packaged universal coating material.
- flux were already mentioned several times - however: what I pack is some real 'rosin' gel flux. I admit it's old fashioned, but we had some hard time once when we discovered that the common OA fluxes are actually not very good and quite moist sensitive when it comes to insulation...

  • #110
I use a ESD mat and grounded wrist clip when working with more static sensitive parts including the assembly of circuit board based prototypes.

  • #111
Inventive said:
grounded wrist clip
if you home-brew one be sure to include about a megohm resistor to limit current through your wrist. You don't want it to become the preferred path for accidental fault current.

  • Like
Likes NTL2009 and nsaspook
  • #112
Thanks Jim, I have a ground system that I bought that has a 1 Mega ohm resistor in the wire from my wrist strap to a eyelet on my mat. From that point it is connected to Earth ground via a receptacle. The 1 Mega ohm resistor should safely limit the current to 2ma or so if a 2Kv potential was present at my wrist. Since my matt is also at Earth ground, the charge should be carried away from ESD sensitive parts on the mat itself. I invite any further comments or suggestions that you may have

  • #113
Inventive said:
I invite any further comments or suggestions that you may have

Good job. You explained it well.
If your finger gets into 120 VAC housepower in something you're working on , you won't have a dead short to ground through your wrist. Your clothes and shoes will provide some protection.

The wristband is a drain for miniscule static currents not a personnel safety ground. It protects the electronic parts on your bench, not you.
Never bypass that 1 meg resistor .

Thanks for considering my comment - helps an old guy feel useful.

old jim

  • #114
jim hardy said:
If your finger gets into 120 VAC housepower in something you're working on , you won't have a dead short to ground through your wrist. Your clothes and shoes will provide some protection.

Since possible shock via mains AC has been mentioned, I'd make a further recommendation for anyone regularly working on devices that require mains AC. In my case, it's guitar amplifiers, but it could be any audio or household appliance. The recommendation is this:

1) Assuming you have a bench with a line of outlets running above it, replace the outlet closest to the circuit breaker with a GFCI outlet; wire it up so that the outlets further outboard are a load on that GFCI outlet, thus all outlets are protected. Be prepared to test regularly since eventually these can get tired, just like a breaker can get tired.

2) If you travel to work on mains AC appliances, consider getting (a) a portable GFCI outlet, and (b) whatever you consider adequate for testing for incorrectly wired outlets - you want to be able to rule out no ground, bootlegged, or reverse-bootlegged, etc. I'm tired at the moment otherwise I'd look up all the conditions. To really test them all you need a pretty expensive tool that I am blanking on at the moment, but you can test most of the conditions with a simple neon proximity voltage tester - one of those pen-like devices - if you know how. I carry one in my toolbox along with instructions on how to use it for such purposes.

People may not like GFCI since you can occasionally have a false trip; but it is far safer than relying on a 15A or 20A breaker to kill AC before you can get badly hurt. Of course it can't help with other issues, e.g. if you are working with high voltage DC and decide to interpose some part of your body into the circuit; but still worth it. Lots of appliances, amplifiers, etc., are built such that bare AC terminals inside the box are quite near things you might want to be working on. There are work procedures to make this less unsafe, but it's still nice to have a backup safety measure.

  • #115
UsableThought said:
To really test them all you need a pretty expensive tool that I am blanking on at the moment,

around eight bucks at Walmart

  • #116

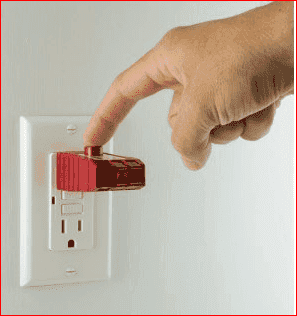

jim hardy said:
View attachment 113298
around eight bucks at Walmart

I'm surprised you would recommend this, given that you're an EE and probably have about 5,000 times the knowledge I do about circuits, instruments etc.? Based on extensive reading & discussion with EE's, shop techs, etc. on other forums, I'd suggest that the cheapie detectors are perhaps the worst of the available choices. They miss the most dangerous scenario, the reverse bootleg, plus at least one other. And they might tell you that your ground is OK when it's not.

The expensive gadget I referred to is the one that can actually check the quality of a ground in a meaningful way; I just went and re-looked it up. It's called an "earth-ground resistance tester" and mostly the only people who need it are field technicians. A nice selection of models can be found on Amazon, from $92 up to $1,529. However it's only for a very specific and limited use; and besides it's possible in most ordinary homes to check ground quality through more ordinary means. I think the field techs are probably sussing out industrial situations and also can't afford to waste time.

Here's links on this topic, varying in quality; the one I like best is the "Shock Zone", second link; it shows how to use the neon voltage proximity tester to check specifically for bootleg. And obviously you can use a DMM; plus inspect; etc. etc. You don't have to buy the super-expensive gadget, but you can do better than the $8 thingie.

https://en.wikipedia.org/wiki/Receptacle_tester#Safety

http://livesoundadvice.com/shock-a/noshockzone-rpbg-dangers/

http://www.thecircuitdetective.com/outlet_tester_readings.htm

http://www.thecircuitdetective.com/test.htm

And there are other sources of expert info as well if one wants to spend the time, e.g. electrical inspectors write about this sort of thing with varying degrees of authority.

From the Wikipedia article -
Simple three light testers cannot detect two potentially serious house wiring errors: (1) neutral and ground reversed at the receptacle. (2) a bootleg ground, where the neutral and ground pins have been connected together at the receptacle. This may be done by someone fitting 3-prong receptacles on a circuit that has no ground wire.

Last edited:
  • #117
UsableThought said:
The expensive gadget I referred to is the one that can actually check the quality of a ground in a meaningful way; I just went and re-looked it up.

Thanks !

  • #118
UsableThought said:
I'm surprised you would recommend this, given that you're an EE and probably have about 5,000 times the knowledge I do about circuits, instruments etc.?
I use the same device, but will read your links when I have time. Thanks for posting them.

  • #119
berkeman said:
I use the same device

I was using it too, then via a forum w/ some EEs/guitar techs on it, heard about the potential issues.

I would be interested in hearing what other people think when they have a chance. I trust the materials I've read, and have done some thinking and experimenting; but I'm not myself an expert.

  • #120
UsableThought said:
I'd suggest that the cheapie detectors are perhaps the worst of the available choices.

OTOH they'll find 99% of anything an average homeowner can fix by himself.

And a RPBG, the dangerous mis-connection, will announce itself first time you touch an appliance that's plugged into it.

If a fellow's got an old house with only two wire Romex (no Earth conductor) and all his three prong outlets were "bootlegged"(a new term to me) by some unscrupulous prior owner, then as you say the cheapie won't show that. First receptacle he opens will make it obvious, though. Anybody sneaky enough to do that would probably do a good job so as to not get caught.

If the third prong isn't "bootlegged' the cheapie tester will find it.

My utility room is wired that way, no ground wire but not bootlegged.
That room was added, i found out, by a scalawag contractor forty years ago who'd got a pile of two wire romex sans ground real cheap.. Some of it wound up in my utility room. He just left the ground prong unconnected.
When i found that, which i did because the three light checker showed open ground, i replaced his three-prong/non-"bootlegged" outlets with old fashioned two prong ones and put in three-to-two cheaters. That way it's obviously a workaround for obsolete wiring that lacks an earthing conductor.


I grounded the washing machine to the copper water pipe . Noblesse Oblige.
Most electric tools and appliances nowadays are double insulated and come with two prong cords so the obsolete wiring in that one room isn't much of an inconvenience. Re-paneling that room is on the "Do List" , will rewire when walls are open for that .
Rest of the house, built around 1960, is 12/3 grounded. I did find more than one hot-neutrals swapped, though.

To check ground integrity i make a "poor man's test fixture",
consisting of a 100 watt lightbulb in a lamp socket,
center of socket connected (through a switch) to hot of course
and barrel of socket switchable(a separate switch) to either neutral or earthing conductor.
Lightbulb should light with neutral selected to neutral, of course,
and also should light with neutral switched to earthing conductor unless it's on a GFCI circuit.
Voltage measurements between Neutral and Earthing conductor give me a clue as to condition of those two paths.
I've found and fixed a lot of loose connections in old buildings that way.
But that's something you shouldn't try unless you're very familiar with electrical safety. So i think every homeowner ought to have one of those cheapie receptacle checkers in his toolbox or desk drawer and know how to use it.
It's not perfect but way better than not looking at all.

I got some 12/2 Romex sans ground by accident.
Found it's got the /U insulation for wet locations so am using it for low voltage lights out to the Barbecue/Tiki area.. That's all it's good for.

old jim

PS Thanks for those links they're real practical.
A fellow should print out that "Circuit Detective" one on how to use the three light tester and keep it with his tester.
In this day and age homeowners should understand household wiring.

Last edited:
  • #121
Thanks for the response at length, Jim.

jim hardy said:
To check ground integrity i make a "poor man's test fixture",
consisting of a 100 watt lightbulb in a lamp socket,
center of socket connected to hot and barrel of socket switchable to either neutral or earthing conductor.
Lightbulb should light with neutral selected to neutral, of course,
and also should light with neutral switched to earthing conductor unless it's on a GFCI circuit.
Voltage measurements between Neutral and Earthing conductor give me a clue as to condition of those two paths.
I've found and fixed a lot of loose connections in old buildings that way.
But that's something you shouldn't try unless you're very familiar with electrical safety.

Yes, this is one of "ordinary means" I was referring to; I agree with the caveat.

As for the plugin tester vs. other options, I really like the procedure that the Shock Zone guy describes for the neon light gadget. Ironically the neon light gadget gets more abuse than the plugin does. I now prefer the neon light (plus instructions), along with a DMM and whatever "ordinary means" make sense for the situation.

The bootleg situation becomes a concern if you're, say, a roadie helping your band set up at some venue. It becomes helpful to have a good way of detecting the worst problems quickly. I learned about this as an issue - including the various "shocking" incidents on stage that have now & then maimed and/or killed electric guitarists - via a forum, http://www.thegearpage.net, that has a very active sub-forum on guitar amp building, modifying, and repair. I've done a fair amount of hobbyist work w/ amps over the past few years, so workshop & home electrical safety have become important for me.

  • #122
UsableThought said:
I really like the procedure that the Shock Zone guy describes for the neon light gadget.

That's indeed a good article. All of those links are good.

When things get confusing I revert to the voltmeter to Earth method he describes. I use a cheap analog meter because it's not very sensitive so draws enough current , about a millliamp, to not get confused by stray capacitance.

I never thought about musical stage setups for i was just never was around them. I'll bet you have seen a LOT of near misses and have some great experiences you could relate.

old jim

  • #123
Thanks Jim and usablethough for your input

  • #124
Can't see this one mentioned:

Magnetic trays. The kind auto-mechanics use. Annoying when you brush a bunch of carefully laid out screws everywhere, and you wanted them to go back into the holes they came out of. I prefer pushing screws into foam, but trays are useful when working in awkward positions.

  • #126
I began my electronics hobby at age 10.
By age 18 I had built an oscilloscope. I couldn't afford to buy one ready-made but I found it indispensable for the hobby.
Likewise a capacitance bridge (nowadays cheap capacitance meters are available via eBay).
And I built a transistor tester at age 14 (ditto above).

Recently I treated myself to a cheap SILICONE RUBBER SHEET 3MM THICK A4 SIZE.
http://www.ebay.co.uk/itm/271226312255

I wish they'd been available when I was a boy. It would have saved me from a lot of spankings resulting from burned table tops!

Also, when I began doing repairs, I built an ESR meter kit. An ESR meter is absolutely essential for detecting those failed electrolytics! It has saved me many hours of heartache. A professional TV repairer friend didn't believe that my $20 ESR meter could beat his $100 capacitance meter until I used it to diagnose a fault in a VCR that he'd had on the bench for a week. Not only did it locate a faulty electrolytic (which his meter had pronounced OK) but it did so without even the need to desolder the little beast!

  • Like
Likes jim hardy, UsableThought and berkeman
  • #127
About those resistor kits. About a year ago I bought one of the Chinese resistor kits and then filled out the selection with "brand name" (forget which one) from a major USA mail-order outfit. I decided to spot-check the values. Good thing I did. The Chinese kit had about 3% of the resistors either out-of-tolerance or marked with the wrong value. The "brand name" had just under 1% out-of-tolerance. And yes, I took into account meter tolerance and accuracy.

  • #128
I would also include an Arduino (or any other board):smile:!

  • #129
ISamson said:
I would also include an Arduino (AND any other board):smile:!
Fixed it for you :P
I have a bunch of Arduino Pro Minis, a large assortment of different STM32's, R-Pi, etc

  • #132
dlgoff said:
I can't wait to see some images, so please purchase it. :approve:
My house is old and will likely horrify you with it's inefficiency :biggrin:

  • #133
My buddy just got a new phone from CAT with FLIR capability.. it's pretty nifty, but expensive of course.. on the screen you can swipe up/down to switch between standard camera and FLIR, and can take simultaneous pictures with both...

  • #134
Greg Bernhardt said:
Looking at buying one of these iphone thermal imagers next fall when I winterize
https://www.amazon.com/dp/B071Z63RSL/?tag=pfamazon01-20
We have used one of those (I think that same brand) for studying hot spots and heat flow in our new circuit designs. Pretty handy device! :smile:

  • #135
ISamson said:
I would also include an Arduino (or any other board):smile:!

Arduino has their own engineering kit now.

https://store.arduino.cc/usa/arduino-engineering-kit

  • Like
Likes Stavros Kiri, dlgoff, berkeman and 1 other person
  • #137
Rx7man said:
https://www.ebay.com/itm/MUSTOOL-MT...e=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649
Interesting! Can you post a link to a datasheet? What is its bandwidth?

  • #138
berkeman said:
Interesting! Can you post a link to a datasheet? What is its bandwidth?
With that link, you know as much as I know about it!.. haven't played with it much yet but I did get a nice sine wave out of my wall socket..

  • #139
The ADC sample speed is 200ksps so it's only useful for audio range stuff.

Analog Bandwidth: DC AC ~ 10kHz
The maximum real-time sampling rate: 200ksps
128X64 high contrast LCD with LED backlighting.

Not going into my toolbox.:cool:

  • Like
Likes Rx7man and dlgoff
  • #140
I'm going to be using it for troubleshooting on automotive stuff.. for example I have weird shift problems on my truck, I can probe the TPS sensor (responsible in part for shifting) and see if it's glitchy.
Maybe someday I'll get something more capable.. I am looking at getting one of these logic analysers which can help me with multichannel stuff
https://www.ebay.com/itm/LHT00SU1-Virtual-Oscilloscope-Logic-Analyzer-I2C-SPI-CAN-Uart-New/172570014287Here's something I also just added to the toolbox, hot air rework and solder station with 15V power supply... seems well optioned and is cheap enough I can take a chance on it.. After seeing Louis Rossmann's tirade on the idiocy of Hakko stations for >10x the price I'll give it a shot
https://www.ebay.com/itm/3-in-1-853...e=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649

  • #141
A Hickory hatchet is a good addition to the tool box.

  • Like
  • Haha
Likes davenn, jim hardy and jedishrfu
  • #142
If only all projects were so challenging.

  • #143
that hv coil from the transformer would make a handy search coil for detecting ac magnetic fields around your house.
Hook to an AC meter set for lowest scale , maybe 200 mv

see if you can find any.

I used in the power plant ten turns encircling 1/10th square meter
only in vicinity of huge ac currents was my measurement useful
i got two volts a couple feet from a bus carrying 20 kiloamps

that coil has thousands of turns but encircles only perhaps 1/40th of a square meter
volts per turn e = dΦ / dt
check my arithmetic
at 60 hz you'd get 377/40 X nturns volts per Tesla ?
If nturns is 1000 that'd be 45 millivolts per microTesla?
check my arithmetic
i expect there's way more than a thousand turns on that coil probably closer to 5,000.

anyhow - a reason to be gentle with the hatchet...

ahhhh I'm distractible to a fault. OTOH in this age of fascinating gizmos there's no excuse to be bored..

old jim

  • Like
Likes dlgoff and nsaspook
  • #144
242030

  • Like
  • Haha
Likes swampwiz, Nathi ORea, diogenesNY and 2 others
  • #146
I wouldn't bother with PCBs and etching solutions. There are a few places that offer quick turn around prototype manufacturing, making your own just doesn't make sense. For a very rough prototype, use a vector board, if you want something that works well, then there is no substitute for a 'real' PCB.
Some of those vendors provide software for PCB design, other require Gerber files. A few companies offer free or low cost PCB design software.

The important things to have are: an oscilloscope and a signal generator.
Sounds expensive, but if you look around you might pick up a second-hand unit for a very reasonable price.

Next, a few BNC cables.

At least one power supply with variable voltage and current limit (in addition to standard 5 V, +/- 15 V ones)

Good isolating tape. (I have Kapton)

flux

q-tips and isopropyl alcohol (to clean the flux)

Good lighting

Last edited by a moderator:
  • #147
I agree about making your own PCBs. There are plenty of 'free' for hobbyist design programs like Eagle that do a great job of transferring schematic design into board design with vendor build files generated with one mouse click.

This was a recent project to make a automation SECS/GEM host emulator with a 8-bit controller. The first prototype was built on a vector board using a surface mount adapter for the controller.


Using the verified circuit design from that board in Eagle a few two layer board spins were made by a local quick turn around vendor in a few weeks for a hand soldered (with a SMD hot air gun for controller) production host controller PCB with a external optional display for operational testing.


Left: first board layout test prototype, Right: final board design.

  • Like
Likes swampwiz, anorlunda, berkeman and 1 other person
  • #148
Debugging hints on the PCB are also sometimes a good idea when the circuit is confusing.

  • Haha
Likes TonyStewart, Rx7man and berkeman
  • #149
My electrical hobbyisting is more or less limited to restoring & maintaining a herd of pinball machines, of both the electromechanical and digital vintage, and I typically take the attitude of buying a new remanufactured circuit board whenever an the OEM board fails the rudimentary test that techs would go through to figure out if it needed to be swapped out - or failing that, aside from checking individual resistors, diodes, transistors and capacitors that appear a possible cause of failure, shipping it out to someone to repair it; I consider any chip to be a "black box" and don't fool with it. I work on a few other basic things like a vintage lamp or traffic signal, but this is all pretty basic. I once diagnosed that the soldered in fuses on the circuit board on my Kill-A-Watt were blown, so I fixed that. Also, one time I got a remanufactured fuse/power board for one my machines that was all screwed up, and I had to modify it by hand, cutting some board lines and soldering in jumpers, but what was a real pain was having to reseat the pin connections (the guy making them claimed that the pinball parts retailer gave him the wrong specs, but it was pretty obvious that this idiot had looked at the drawing upside down).

As for my toolkit, I have a 120W pistol solder gun, and a variable (up to 50W) ice-pick solder, and all the regular accoutrements thereof, but the solder vacuum I have is this beautiful piece of engineering, and worth the 6X price from the standard ones:

https://www.amazon.com/dp/B002MJMXD4/?tag=pfamazon01-20

For wire, I had originally bought a rainbow of 25-foot spools of 18 Ga hookup wire, and I still have some of that remaining. I've also bought a rainbow 22 Ga wire (1-foot sections) for the few times when I have leads that are too small for the 18 Ga. I rarely need a wire for more than 10A (which the 18 Ga wire handles), and for the few times I need more, I just double up. I also have some wire harnesses scavenged from a few machines, and lately I've been using that.

I have for my main multimeter the Ideal 61-361, which has a wonderful rubber case that seems to make it near indestructible (I would post a link to it, but Amazon doesn't seem to have it anymore). The only problem is that it doesn't have a good range for capacitors, so I bought another multimeter that has a good range, and it serves as a spare.

I have over 2 dozen different models of fuses (mainly 6 x 30 mm appliance-style), for seemingly every possible amperage, fast & slow blow, etc., and try to keep at least 5 on hand in case I have to attrit them to solve the problem.

I think I have about a dozen pairs in various colors of alligator clip jump wires that appear to be 20 Ga (I guess I should measure the resistance to back out the Ga), but I have some 14 Ga ones that I use for high current applications. I'd like to be able to buy more good ones in different colors. I've been thinking about making my own.

I've got some wire strippers, and a Molex crimper (which I had to use extensively to replace about 100 total wires in a bunch of harnesses).

I've got a bunch of flat-edge connectors (male & female) that are supposed to be for 14-18 Ga, a bunch of eyehole connectors for 16-22 Ga, and the whole gamut of thimble connectors in their standard colors (grey/blue/orange/yellow/red in ascending size) - which I always prefer to use instead of soldering whenever possible. I seem to use the blue a lot, and will soon be buying another pack of that.

I have DeOxit contact cleaner, which is the best I've come across, and Brasso and a steel or brass brush for the really caked up contacts. I also use 0000 steel wool sometimes, but one has to be careful to clean up all the little hairs!

  • Like
Likes dlgoff, jedishrfu and Stavros Kiri
  • #150
swampwiz said:
My electrical hobbyisting is more or less limited to restoring & maintaining a herd of pinball machines, of both the electromechanical and digital vintage, and I typically take the attitude of buying a new remanufactured circuit board whenever an the OEM board fails the rudimentary test that techs would go through to figure out if it needed to be swapped out - or failing that, aside from checking individual resistors, diodes, transistors and capacitors that appear a possible cause of failure, shipping it out to someone to repair it; I consider any chip to be a "black box" and don't fool with it. I work on a few other basic things like a vintage lamp or traffic signal, but this is all pretty basic. I once diagnosed that the soldered in fuses on the circuit board on my Kill-A-Watt were blown, so I fixed that. Also, one time I got a remanufactured fuse/power board for one my machines that was all screwed up, and I had to modify it by hand, cutting some board lines and soldering in jumpers, but what was a real pain was having to reseat the pin connections (the guy making them claimed that the pinball parts retailer gave him the wrong specs, but it was pretty obvious that this idiot had looked at the drawing upside down).

As for my toolkit, I have a 120W pistol solder gun, and a variable (up to 50W) ice-pick solder, and all the regular accoutrements thereof, but the solder vacuum I have is this beautiful piece of engineering, and worth the 6X price from the standard ones:

https://www.amazon.com/dp/B002MJMXD4/?tag=pfamazon01-20

For wire, I had originally bought a rainbow of 25-foot spools of 18 Ga hookup wire, and I still have some of that remaining. I've also bought a rainbow 22 Ga wire (1-foot sections) for the few times when I have leads that are too small for the 18 Ga. I rarely need a wire for more than 10A (which the 18 Ga wire handles), and for the few times I need more, I just double up. I also have some wire harnesses scavenged from a few machines, and lately I've been using that.

I have for my main multimeter the Ideal 61-361, which has a wonderful rubber case that seems to make it near indestructible (I would post a link to it, but Amazon doesn't seem to have it anymore). The only problem is that it doesn't have a good range for capacitors, so I bought another multimeter that has a good range, and it serves as a spare.

I have over 2 dozen different models of fuses (mainly 6 x 30 mm appliance-style), for seemingly every possible amperage, fast & slow blow, etc., and try to keep at least 5 on hand in case I have to attrit them to solve the problem.

I think I have about a dozen pairs in various colors of alligator clip jump wires that appear to be 20 Ga (I guess I should measure the resistance to back out the Ga), but I have some 14 Ga ones that I use for high current applications. I'd like to be able to buy more good ones in different colors. I've been thinking about making my own.

I've got some wire strippers, and a Molex crimper (which I had to use extensively to replace about 100 total wires in a bunch of harnesses).

I've got a bunch of flat-edge connectors (male & female) that are supposed to be for 14-18 Ga, a bunch of eyehole connectors for 16-22 Ga, and the whole gamut of thimble connectors in their standard colors (grey/blue/orange/yellow/red in ascending size) - which I always prefer to use instead of soldering whenever possible. I seem to use the blue a lot, and will soon be buying another pack of that.

I have DeOxit contact cleaner, which is the best I've come across, and Brasso and a steel or brass brush for the really caked up contacts. I also use 0000 steel wool sometimes, but one has to be careful to clean up all the little hairs!
Do you follow Joe's classic arcade games on youtube? A lot of the old machines had very standard TTL/Cmos logic circuits that aren't too hard to fix.. really great channel https://www.youtube.com/@LyonsArcade

Back
Top
