When input voltage is high, capacitor is charging

  1. Feb 27, 2013 #1
    1. The problem statement, all variables and given/known data


    2. Relevant equations

    C=Q/V.
    T = RC


    3. The attempt at a solution

    Capacitance is found to be 334.6217 picoFarads (from previous part of question)

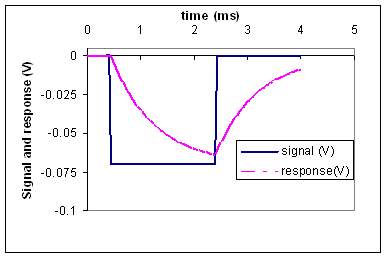

    When input voltage is high, capacitor is charging (falling pink line), then discharging thereafter

    Last edited: Feb 27, 2013
  2. jcsd
  3. Feb 27, 2013 #2

    Mute

    User Avatar
    Homework Helper

    Re: Estimating RC time constant from graph of input and out voltage vs

    As per the rules, you need to show us an attempt at the solution before we can help you. You should also fully describe the problem, rather than just presenting us with a graph. What have you tried so far?
