I would just like to know if i have worked out one cardiac cycle and heart rate correctly.

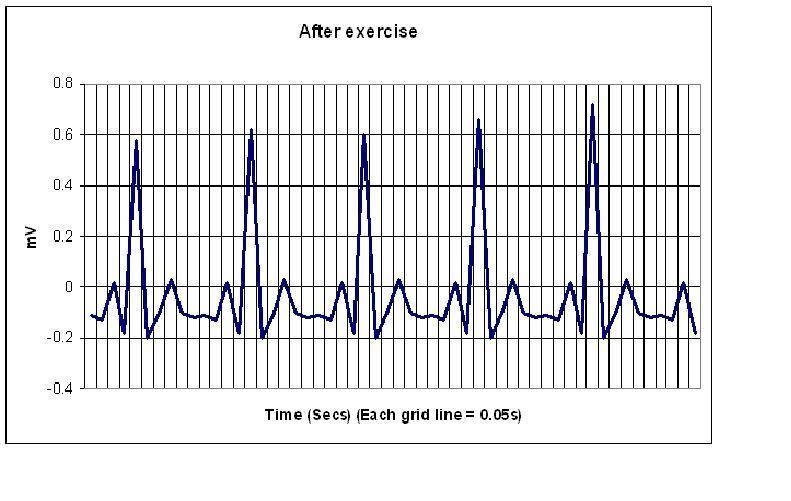

I have attached the image of the ecg called 'after exercise'

here are my workings out:

1. CARDIAC CYCLE:
there are 4 cycles so:
9 (grids) x 0.05 = 0.45
9x 0.05 = 0.45
9x 0.05 = 0.45
9x 0.05 = 0.45

average = 0.45 x 4/4 = 0.45

so cardiac cycle = 0.45 seconds

2. HEART RATE:
60/0.45 =133 bpm

are these worked out correctly?


Attachments

  • afterExercise.JPG
    49.2 KB · Views: 423
  • resting.png
    23.5 KB · Views: 469
Last edited:
Physics news on Phys.org
shadows122 said:
I would just like to know if i have worked out one cardiac cycle and heart rate correctly.
I have attached the image of the ecg called 'after exercise'

here are my workings out:

1. CARDIAC CYCLE:
there are 4 cycles so:
9 (grids) x 0.05 = 0.45
9x 0.05 = 0.45
9x 0.05 = 0.45
9x 0.05 = 0.45

average = 0.45 x 4/4 = 0.45

so cardiac cycle = 0.45 seconds

2. HEART RATE:
60/0.45 =133 bpm

are these worked out correctly?
I'm seeing one heartbeat every 10 grid lines. Are you sure about your 9 grid lines number?

berkeman said:
I'm seeing one heartbeat every 10 grid lines. Are you sure about your 9 grid lines number?

Oh, dammit i was counting the spaces between the lines.
So you have to count the lines? then yeah it should be 10.

so its:
1. CARDIAC CYCLE:
there are 4 cycles so:
10 (grids) x 0.05= 0.5
10x 0.05 = 0.5
10x 0.05 = 0.5
10x 0.05 = 0.5

average = 0.5 x 4/4 =0.5

so cardiac cycle = 0.5 seconds

2. HEART RATE:
60/0.5 = 120 bpm

is this right?? :smile:

shadows122 said:
Oh, dammit i was counting the spaces between the lines.
So you have to count the lines? then yeah it should be 10.

so its:
1. CARDIAC CYCLE:
there are 4 cycles so:
10 (grids) x 0.05= 0.5
10x 0.05 = 0.5
10x 0.05 = 0.5
10x 0.05 = 0.5

average = 0.5 x 4/4 =0.5

so cardiac cycle = 0.5 seconds

2. HEART RATE:
60/0.5 = 120 bpm

is this right?? :smile:
That's what I got as well. :smile:

berkeman said:
That's what I got as well. :smile:

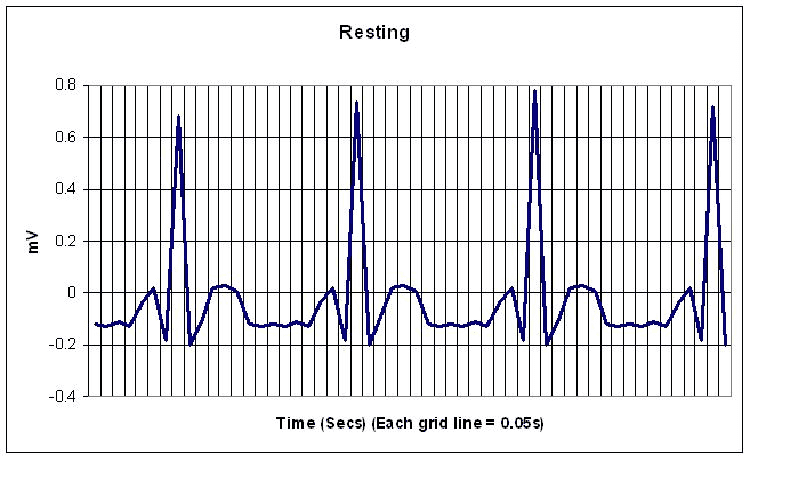

i just uploaded another ECG called 'resting' as i can't tell how many grids there are. I counted 15 ? for each cycle, what about you?

shadows122 said:
i just uploaded another ECG called 'resting' as i can't tell how many grids there are. I counted 15 ? for each cycle, what about you?
Yep, I get 15 as well.
