Design a series RLC filter for 10kHz

In summary, the conversation involves designing an RLC filter for 10kHz using an 0.01mF capacitor. The person asking the question also wanted to know how the circuit would look when drawn out and if there is a specific orientation of the resistor, capacitor, and inductor. The thread title was initially incorrect as it mentioned a power transformer, but it has been changed to accurately reflect the problem. The specification of the capacitor (in microfarads or millifarads) is not clear in the image provided, and it would be better if the work was typed out for easier interpretation by helpers.
  • #1
Kelsi_Jade
59
0

Homework Statement


Design a series RLC filter for 10kHz using an 0.01mF capacitor.

Homework Equations

/ 3. The Attempt at a Solution
how would the circuit actually look if drawn out here?
[/B]


Attachments

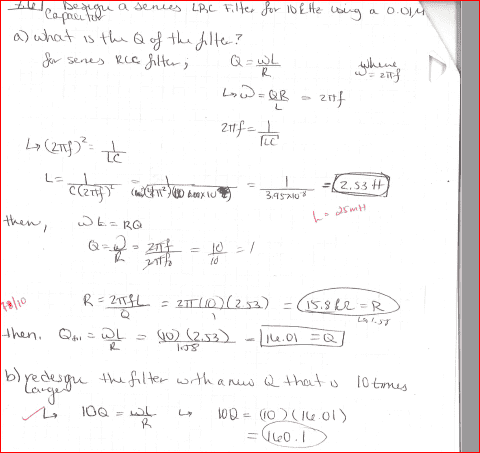

  • upload_2017-3-28_3-0-4.png
    6.3 KB · Views: 439

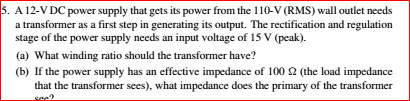

  • upload_2017-3-28_3-13-11.png
    21.3 KB · Views: 469
  • upload_2017-3-28_3-13-24.png
    21.3 KB · Views: 438
Physics news on Phys.org
  • #2
There are two different questions in this post. Please make two separate threads.

  • #3
Well, it's two parts of the same question I was just curious with the information I have how a circuit diagram would actually look.
e.g. is there a specific way the resistor, capacitor, and inductor must be oriented? Like, if it's RLC must they be designed Resistor first, then Inductor, then Capacitor?

  • #4
The thread title doesn't match the problem statement. Presumably the question is about designing an LRC filter and not about a power transformer?

  • #5
gneill said:
The thread title doesn't match the problem statement. Presumably the question is about designing an LRC filter and not about a power transformer?
Oh sorry! I must have written the title regarding the next problem. Yes, it is about designing an LRC filter!

  • #6
Kelsi_Jade said:
Oh sorry! I must have written the title regarding the next problem. Yes, it is about designing an LRC filter!
I'll change the thread title.

  • #7
Is your capacitor specified in microfarads (μF) or millifarads (mF)? It can't be made out in the image of your work. It would be better if you could type out your work. It makes it easier for helpers to interpret, quote, and comment on.


1. What is a series RLC filter?

A series RLC filter is an electronic circuit that is used to pass or block certain frequencies of an electrical signal. It is composed of a resistor (R), an inductor (L), and a capacitor (C) connected in series.

2. How does a series RLC filter work?

In a series RLC filter, the resistor, inductor, and capacitor interact with each other to create a frequency-dependent impedance. This impedance allows certain frequencies to pass through the circuit while filtering out others.

3. What is the purpose of designing a series RLC filter for 10kHz?

The purpose of designing a series RLC filter for 10kHz is to selectively filter out or reduce the amplitudes of signals with frequencies that are higher or lower than 10kHz. This can be useful in a variety of applications, such as audio amplifiers or radio frequency circuits.

4. How do I calculate the values for the components of a series RLC filter for 10kHz?

To design a series RLC filter for 10kHz, you will need to use the equations for calculating the resonant frequency, cutoff frequency, and quality factor. From there, you can determine the necessary values for the resistor, inductor, and capacitor based on the desired cutoff frequency and quality factor for your specific application.

5. Are there any limitations to using a series RLC filter for 10kHz?

Yes, there are some limitations to using a series RLC filter for 10kHz. One limitation is that the filter will only work within a certain frequency range, and may not be as effective at filtering out frequencies that are significantly higher or lower than 10kHz. Additionally, the filter may introduce some signal distortion or phase shifts at the cutoff frequency.
