Homework Statement

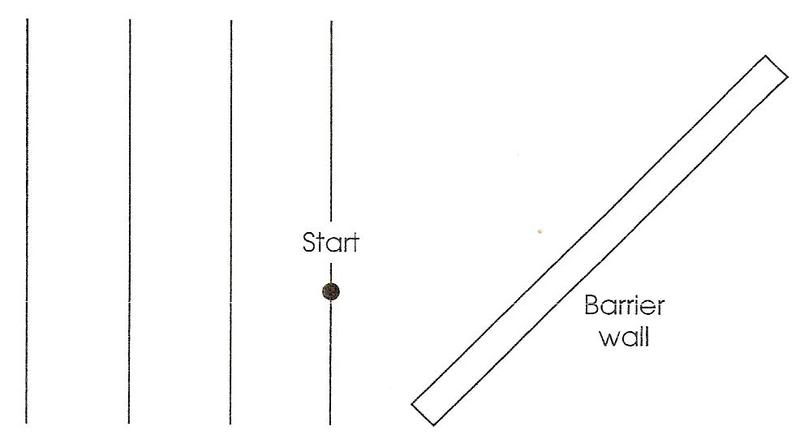

Look at the diagram. Draw the wavefronts as they would appear after the reflection. Draw and identify the following things on the diagram.

Incident ray
Normal
Reflected ray
Angle of Incidence
Angle of reflection

Homework Equations

n/a

The Attempt at a Solution

I'm not even sure where to start, I don't quite understand the diagram. . if anyone can help with a starter, that would be great! =)



[Mindscrape]

I think the lines are supposed to be the wavefronts. So they will hit the barrier, and some will transmit while others will reflect. I guess the barrier is supposed to be entirely reflective from the context of the problem, or you are supposed to ignore the transmittance, so make the wavefronts you would see if they were reflected.

This is really the most I can do for you because of the highly graphical nature of the problem.



[mjsd]

if the lines given are wavefronts then the rays would be perpendicular to these lines
