Drawing a heat curve of ice melting

  1. May 26, 2016 #1

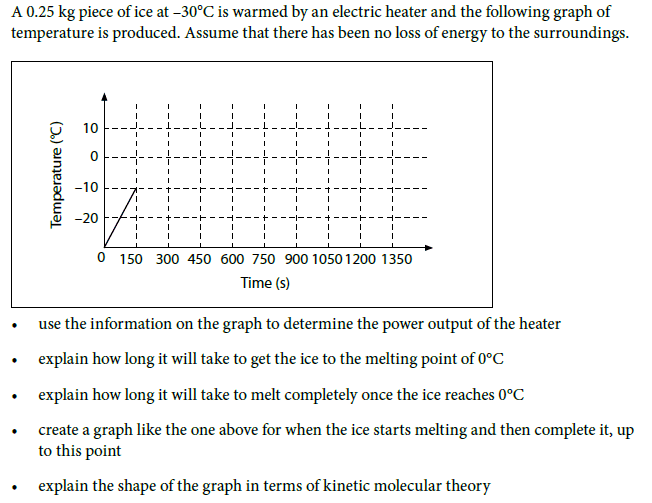

    1. The problem statement, all variables and given/known data

    2. Relevant equations
    equation with each part.

    3. The attempt at a solution

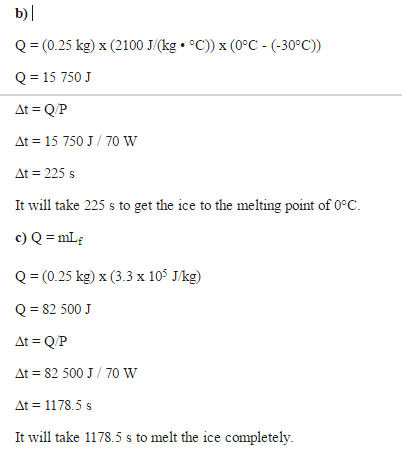

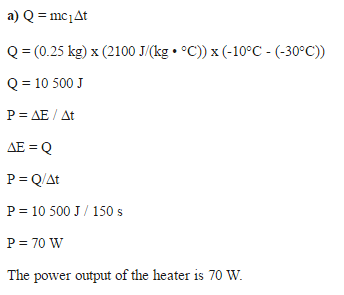

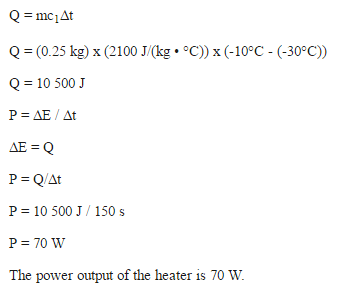

    I did part a) b) and c) on my own:


    Part d:
    I am having trouble at this part. I understand how to draw the heat curve but I am confused on what numbers I should use for the x-axis of the graph. I know that I have to start off with 225 s at 0°C, and then keep the line flat until about 1403 s, but I don't know what numbers to use from there...

    any help would be appreciated :)

    Attached Files:

  2. jcsd
  3. May 26, 2016 #2


    User Avatar
    Staff Emeritus
    Science Advisor
    Homework Helper

    After the ice has all melted, what does it become? If you keep adding heat to the melted ice, can't you continue to draw a curve of temperature versus time?
  4. May 26, 2016 #3
    It becomes, liquid (water), then boils, then turns to gas. I understand this part but what I don't get is what values of time should I put on the x-axis, like how long does it take for each phase to change. ex. from a water to boiling....
  5. May 26, 2016 #4


    User Avatar
    Staff Emeritus
    Science Advisor
    Homework Helper

    Well, what information do you need to complete the curve? Assume the heater is still putting out 70 W.
  6. May 27, 2016 #5
    I finally figured it out! :biggrin:
    Here is my graph:


    Thanks so much for the help! :smile:
