Finding resistance in a resistor?

  • Thread starter Thread starter ninjadrummer8
  • Start date Start date
  • Tags Tags
    Resistance Resistor
Click For Summary
SUMMARY

The discussion focuses on calculating resistance using the formula R=V/I, where V is voltage and I is current. Participants confirm that in a linear relationship between voltage and current, the slope of the voltage-current graph represents resistance. Specifically, as the current varies from 1 to 4 Amps, the slope of the best fit line directly indicates the resistance value in that range.

PREREQUISITES
  • Understanding of Ohm's Law (R=V/I)
  • Basic knowledge of linear equations and graph interpretation
  • Familiarity with voltage and current measurements
  • Experience with using voltmeters in circuit analysis
NEXT STEPS
  • Explore linear regression techniques for data analysis in electrical measurements
  • Learn about the characteristics of resistors in different circuit configurations
  • Investigate the impact of temperature on resistance in materials
  • Study the principles of variable voltage sources and their applications
USEFUL FOR

Students in physics or electrical engineering, educators teaching circuit analysis, and hobbyists experimenting with electronic components.

ninjadrummer8
Messages
24
Reaction score
0

Homework Statement

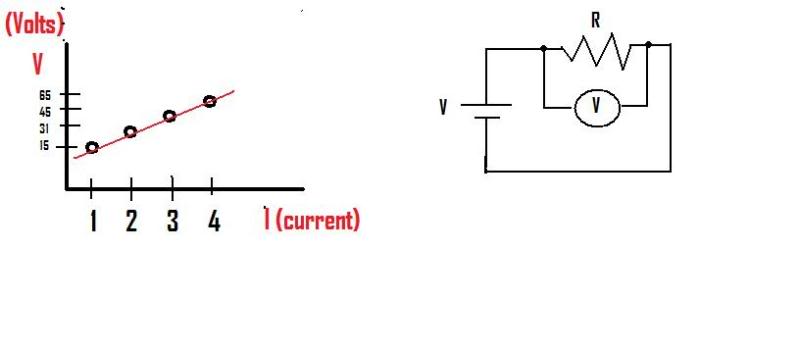

Basically, this "battery" is actually a variable voltage source. The current is raised and the voltmeter measures the voltage in the resistor. What is the resistance in the region that the current goes from 1-4 Amps? (BTW, the red line is a best fit line.)


Homework Equations


R=V/I


The Attempt at a Solution


Ok, well since this is linear, the slope of this line is actually V/I, so would the slope of the line be the resistance?

Physics news on Phys.org
ninjadrummer8 said:

The Attempt at a Solution


Ok, well since this is linear, the slope of this line is actually V/I, so would the slope of the line be the resistance?

Yes it would be the slope of the line.
