Help with home test questions 2, 5, and 6

  • Thread starter Marchese_alex
  • Start date
  • Tags Tags
    Home Test
6 replies · 2K views · last reply
Marchese_alex
Messages
54
Reaction score
0
Hello again!

I have to finish a home test for tomorrow (4pm). I am struggling basically with #2, #5 and #6. Why? because my professor is really old. just so you get an idea, she was the FIRST lady to graduate from EE from University Of Puerto Rico Mayaguez (no bull). She barely can walk or stand up. So what happened is that she got sick and after a month of no class she reappear with this home test. I will APPRECIATE GREATLY if anyone can help me answer the test. I will keep posting what I do so you can verify if what I am doing is correct. Already did #3 and doing right now #4.

Thanks for any help!

Attachments

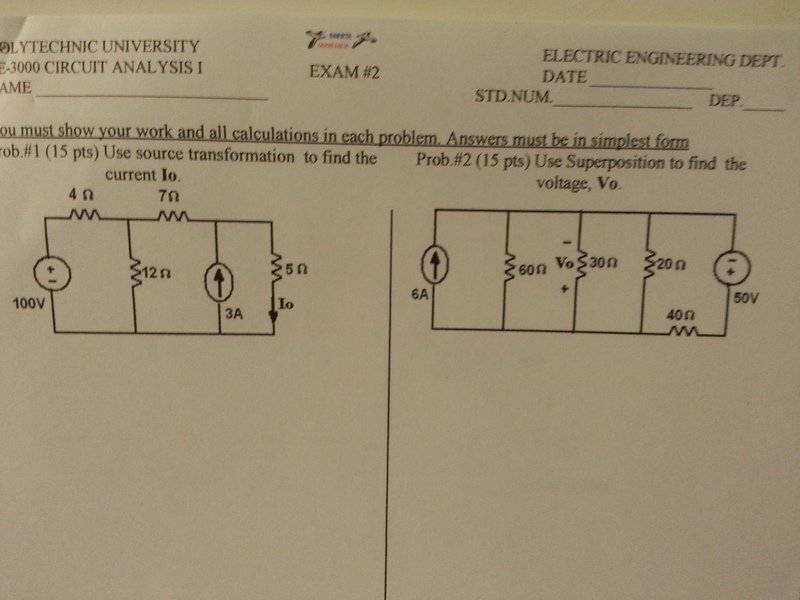

  • Exam sheet with two circuit problems: left, a source transformation circuit with a 100V source, 4 ohm, 12 ohm, 7 ohm and 5 ohm resistors, a 3A current source and current Io; right, a superposition circuit with a 6A source, 60, 30, 20 and 40 ohm resistors, a 50V source and voltage Vo.
    38.5 KB · Views: 485

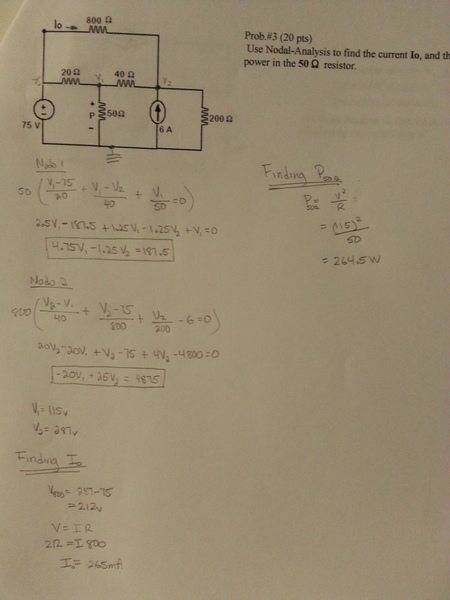

  • Handwritten nodal analysis of a circuit with a 75 V source, 6 A source, resistors 800, 20, 40, 50, and 200 ohm, solving for node voltages V1 and V2 and the power in the 50 ohm resistor.
    20 KB · Views: 479
  • Circuit schematic with 2 ohm, 1 ohm, 3 ohm, 4 ohm and 25 ohm resistors, 20 V and 10 V sources, and a dependent current source labelled 1 Vo 2 Vo, beside a printed problem statement.
    33 KB · Views: 457
the rest of the exercises

Attachments

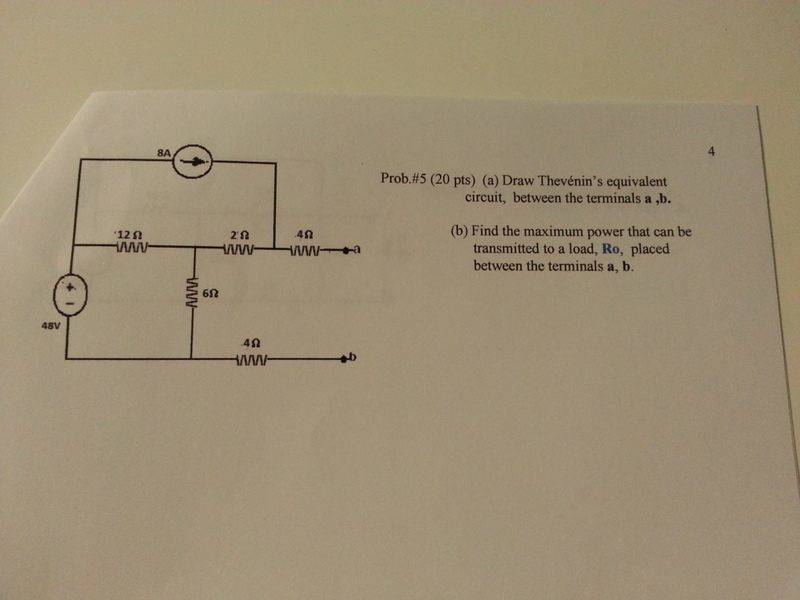

  • Circuit schematic with a 48V voltage source, an 8A current source, resistors of 12 Ω, 2 Ω, 6 Ω and two 4 Ω, and terminals a and b, with the printed problem text beside it asking for a Thevenin equivalent and maximum power transfer.
    30.1 KB · Views: 461

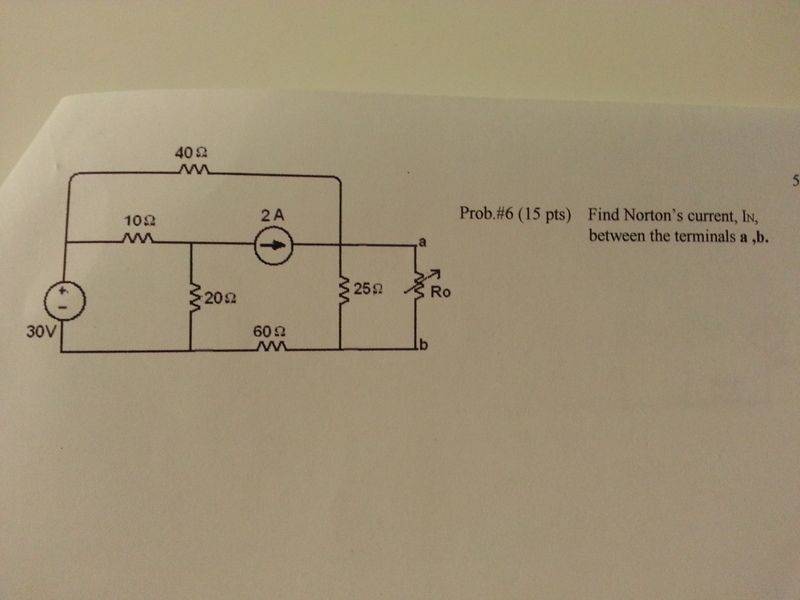

  • Circuit schematic with a 30V source on the left, resistors of 40Ω, 10Ω, 20Ω, 60Ω and 25Ω, a 2 A current source, terminals a and b on the right, and a variable load Ro; beside it, Prob. #6 (15 pts) asks to find Norton's current IN between terminals a and b.
    26.8 KB · Views: 490

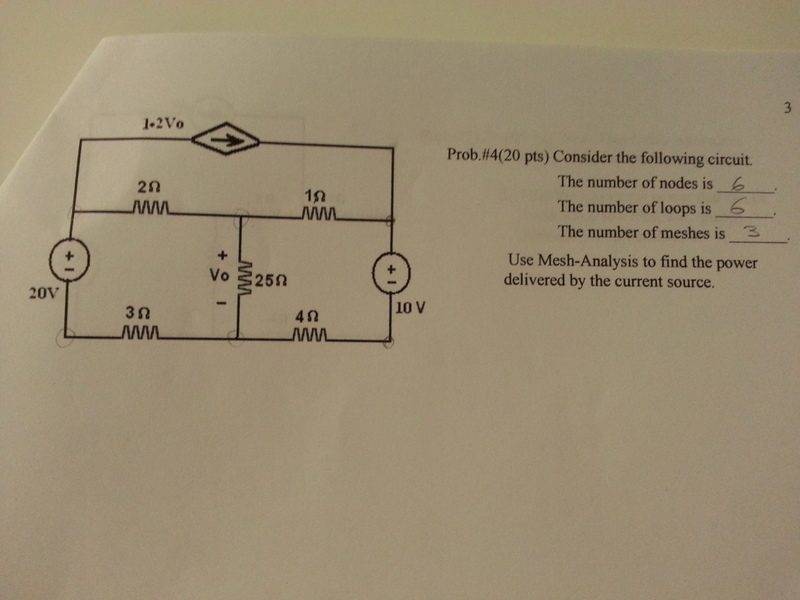

#4

I have little confusion. Dont know which one to use.

25I1-25I2 or 24I2-25I1 see attachment

Attachments

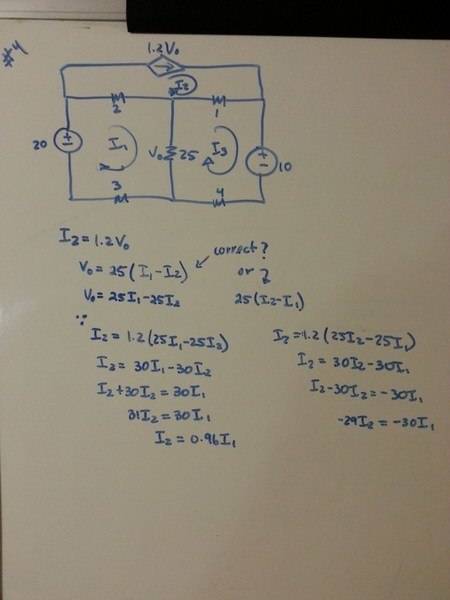

  • Handwritten circuit analysis on a whiteboard: a mesh circuit with a 1.2V0 dependent voltage source, a 20 V source, a 10 V source, a 25 ohm resistor, and mesh currents I1, I2, I3, beside handwritten equations I2 = 1.2V0, V0 = 25(I1 - I2) versus 25(I2 - I1), and algebra leading to I2 = 0.96I1.
    18.2 KB · Views: 493
excersice #4

1.can someone verify it?
2. How to calculate the power?

Attachments

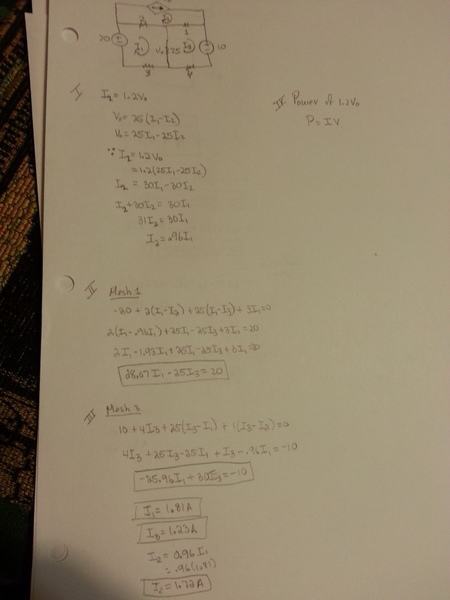

  • Handwritten circuit analysis on lined paper: a circuit schematic at top with 20 V and 10 V sources and labeled currents, followed by mesh current equations for Mesh 1, Mesh 2 and Mesh 3 and boxed solutions I1 = 1.81 A, I2 = 1.23 A, I3 = 0.96 I1 and I4 = 1.72 A.
    16.5 KB · Views: 438
