MHB How can I accurately create a 3D figure using given nets?

  • Thread starter Thread starter NehaAhuja
  • Start date Start date
  • Tags Tags
    Figure
AI Thread Summary
To create an accurate 3D figure from given nets, it's essential to analyze the top, side, and front views carefully. The user is struggling with part (d) of a problem, having successfully completed parts (a), (b), and (c). They initially proposed a triangular prism but noted discrepancies with the front view. Suggestions include using isometric grid paper to aid in visualizing the 3D structure. Accurate representation of the views is crucial for solving the problem effectively.
NehaAhuja
Messages
2
Reaction score
0

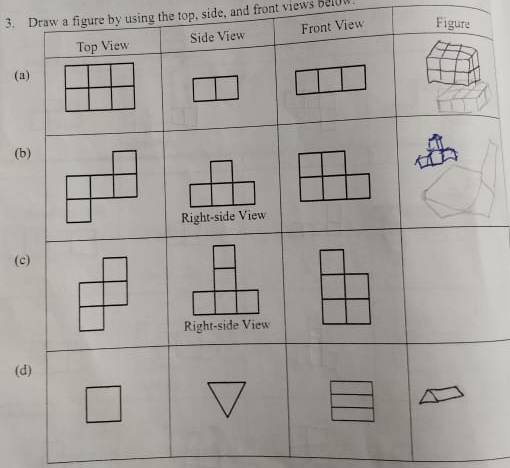

View attachment 9126

Hi
I need help with a problem on 'Nets'. I have attached an image , need help coming up with a 3D figure based on top, side and front views. The closest i could come to was a triangular prism but the front view does not seem to agree with the prism. Please help.
Thanks
Neha


Attachments

  • Maths Net problem.jpg
    Maths Net problem.jpg
    24.4 KB · Views: 119
Mathematics news on Phys.org
I have been able to solve parts a, b and c. It is part (d) that I am struggling with, sorry should have mentioned that! Thanks

NehaAhuja said:
I have been able to solve parts a, b and c. It is part (d) that I am struggling with, sorry should have mentioned that! Thanks

My sketch for (d) is a triangular prism ...
