How Do You Convert Images into Graphical Data?

Ahmad Hossain
Messages
28
Reaction score
2

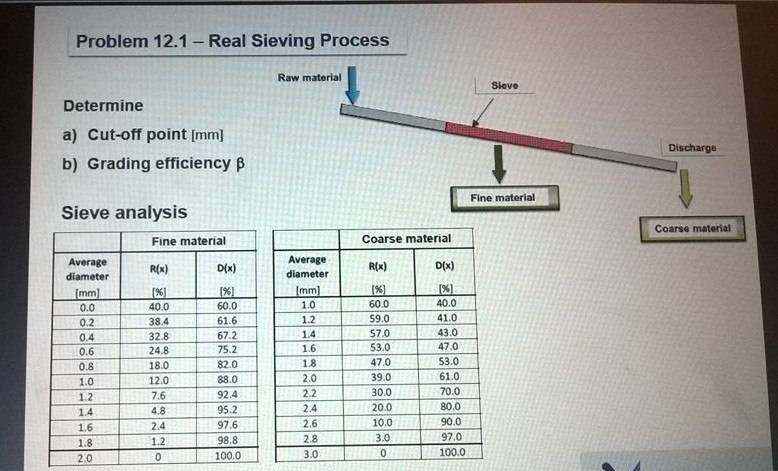

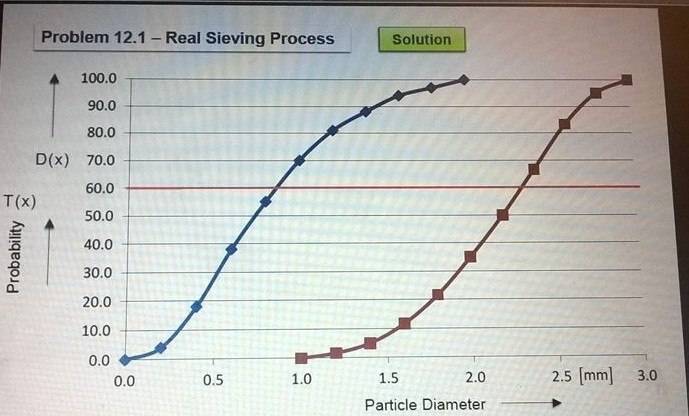

How to draw the graph from the picture. I solved 50% my self like grade Xcut-off point but I do not understand the graph below

Last edited by a moderator:
q


Attachments

  • qqq3.jpg
    53.4 KB · Views: 369
  • qqq1.jpg
    36.2 KB · Views: 400
Last edited:
