How does a voltage doubler work?

  • Thread starter Thread starter mjjaques
  • Start date Start date
  • Tags Tags
    Voltage Work
Click For Summary
A voltage doubler circuit increases the output voltage to approximately twice the input voltage when a jumper is inserted. This is achieved through the use of capacitors and diodes that store and transfer energy effectively. The circuit operates by charging a capacitor during one phase of the AC cycle and then discharging it to the output during another phase, effectively doubling the voltage. For a deeper understanding, reviewing resources like the Wikipedia article on voltage multipliers is recommended. Engaging with specific questions can further clarify any confusion regarding the circuit's operation.
mjjaques
Messages
9
Reaction score
0

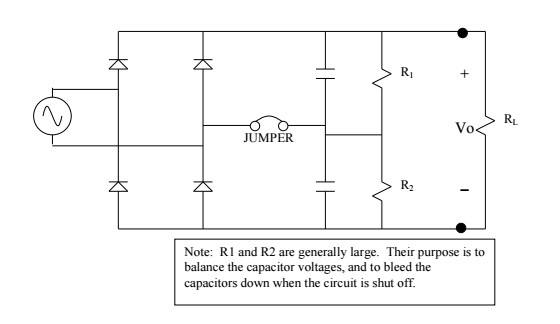

Hi, I have this voltage doubler circuit that we built in lab:



We're told that, with the jumper inserted, the output voltage is about twice as great as without the jumper. We didn't need to prove this theoretically, but for my own curiosity, I was wondering if someone could give a clear, thorough explanation of why this works. When I search online, I see circuits that are similar but not quite the same, and kind of short answers that I don't quite understand. Thanks!
