Is the electric scheme correctly redrawn?

  • Thread starter Thread starter kakadas
  • Start date Start date
  • Tags Tags
    Electric
Join the discussion
Registration is free. Ask a follow-up in this thread, or start your own.
Sign up Log in
2 replies · 2K views
kakadas
Messages
15
Reaction score
0

Homework Statement

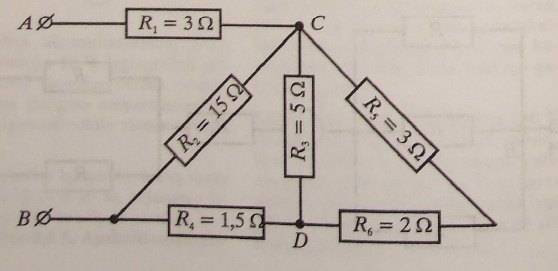

Original:

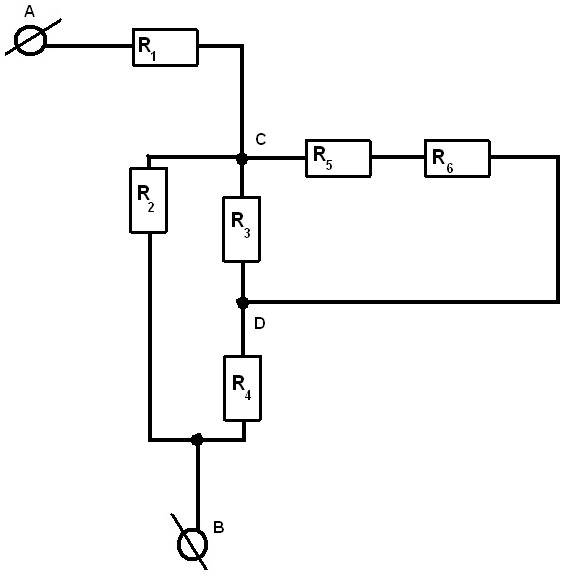

Redrawn:





Homework Equations



Is the electric scheme correctly redrawn?
Which of the resistors are in parallel and which are in series?

The Attempt at a Solution



Discussion

Physics news on Phys.org
It looks correctly redrawn. Now go ahead and answer the last part about series & parallel...

berkeman said:
It looks correctly redrawn. Now go ahead and answer the last part about series & parallel...
Yeah, that last question wasn't necessary for me. Now I don't know why I even bothered to ask it everything's clear here...

Oh and Thanks for the help.
