aryise
Messages
2
Reaction score
0

Homework Statement



Low-pass filter allows signals of low frequency to pass while attenuating high frequency signals; similarly, a high-pass filter allows signals of high frequency to pass while attenuating low frequency signals. The signals here can refer to voltage or current in the circuit. There is a link to a picture. I don't quite understand how to solve it.

Link: http://img198.imageshack.us/img198/5677/mathb.png

Homework Equations



I understand that Vin = Vc + Vr.
How do I use Laplace transform on Vin = Vc + Vr. AnD if Vout is the voltage across the resistor R.

The Attempt at a Solution



I am totally stuck.

Last edited by a moderator:
Physics news on Phys.org
Do you know how to represent circuits and basic components R, C, L in s domain?
This following link may help.
http://tintoretto.ucsd.edu/jorge/teaching/mae140/lectures/6sdomain.pdf


aryise said:

Homework Statement



Low-pass filter allows signals of low frequency to pass while attenuating high frequency signals; similarly, a high-pass filter allows signals of high frequency to pass while attenuating low frequency signals. The signals here can refer to voltage or current in the circuit. There is a link to a picture. I don't quite understand how to solve it.

Link: http://img198.imageshack.us/img198/5677/mathb.png

Homework Equations



I understand that Vin = Vc + Vr.
How do I use Laplace transform on Vin = Vc + Vr. AnD if Vout is the voltage across the resistor R.

The Attempt at a Solution



I am totally stuck.

Last edited by a moderator:
You will need the Laplace transform for the excitation voltage U(t)sin(wt). You also need to know how to express L, C and R in terms of their Laplace representations, as klondike points out.

Thank you! I finally solve it... :)

aryise said:
Thank you! I finally solve it... :)

Hey how did you solve it? i have a simillar question. Help would be greatly appreciated

Cfty said:
Hey how did you solve it? i have a simillar question. Help would be greatly appreciated

See my post of June 24.

rude man said:
See my post of June 24.

I can't understand. Argh.kNot so good in this.

I understand SinWt = iR + iC

Then i applied laplace : W/(s^2+w^2) = IR + IC.

Is this correct?

Cfty said:
I can't understand. Argh.kNot so good in this.

I understand SinWt = iR + iC

Then i applied laplace : W/(s^2+w^2) = IR + IC.

Is this correct?

sin(wt) = iR + iC is not correct. R and C are not the same type of impedance!
But you got the right transform for sin(wt).

rude man said:
sin(wt) = iR + iC is not correct. R and C are not the same type of impedance!
But you got the right transform for sin(wt).

I tried it with W/(S^2 + W^2) = IR + I/CS

Do i need to diffrentiate anywhere in this question?. I got the first two parts for the showing right. I can't seem to get the final part. I followed the laplace transform on top by making I the subject and doing partial fractions. Then when i found I i laplace inversed it to Find i. And Since Vout is VR : i took the i*R.

  • #10
Cfty said:
I tried it with W/(S^2 + W^2) = IR + I/CS
This is correct

Do i need to diffrentiate anywhere in this question?.
No.
I got the first two parts for the showing right. I can't seem to get the final part. I followed the laplace transform on top by making I the subject and doing partial fractions. Then when i found I i laplace inversed it to Find i.
That is correct.
And Since Vout is VR : i took the i*R.
Yes, if I understand you correctly, Vout= iR.
Show your math in detail.

  • #11

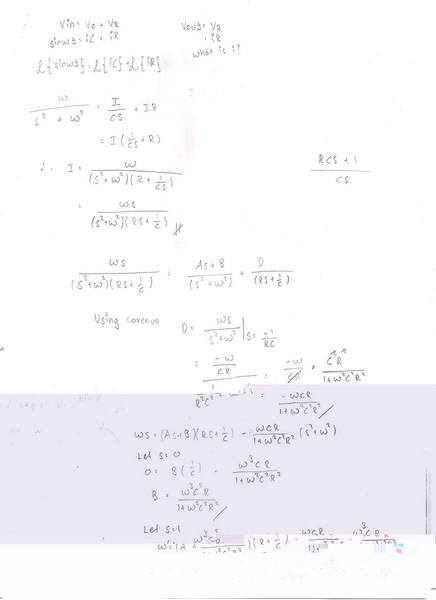

Hey This is my written solutions. If you could tell me where i went wrong I would greatly appreciate it.


Attachments

  • 001.jpg
    12.6 KB · Views: 513
  • 002.jpg
    14.7 KB · Views: 509
  • #13
rude man said:
This is correct



Show your math in detail.


Hope It helps

  • #14
Your equation at the top of page 1 is correct. And your answer is almost correct, obviously.

You just made an algebraic mistake somewhere. You can see that the last term in your answer is incorrect since it's dimensionally incorrect. Each term must be dimensionless
(actually it's Volts but you didn't include volts in your excitation function).

I can't follow your math from the pictures. I will leave it to you to find the mistake you made.

Good luck and good work!
