Mechanical Engineering Stresses

I am really struggling with the following problem:

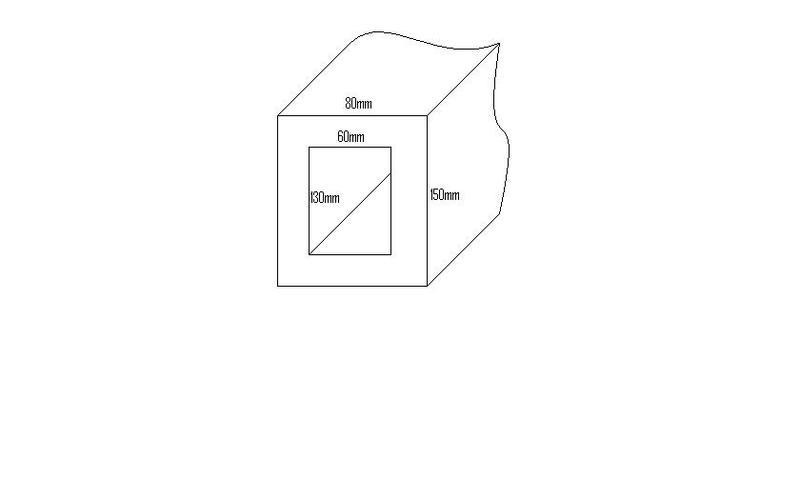

A rectangular tube with no given length has the dimensions shown in the diagram (within the attachment). Find the maximum tensile and compressive stresses that such a section will experience due to a bending moment of 20KNm.

The attachment should be included if I've done it right.

I think i should be using "Second moments of area", but I'm not sure some clarification and possibly the formula would be gratefully received.

Thank you

Chris:confused:


Attachments

  • Example diagram.JPG
    Example diagram.JPG
    7.1 KB · Views: 425
Last edited:
Engineering news on Phys.org
  • #2
What's the definition (mathematical) of normal stress due to a bending moment?

  • #3
how is the bending moment applied? is the bar in torsion?

  • #4
That tube works as a beam. From here, Google is your friend.

  • #6
think about the neutral axis and which side is in tension/compression then use the stress equation for a beam in symmetric (assuming) bending. simple. but I've done it a few times.
