Modern US locomotive design and operation

In summary: The video shows different parts of a locomotive and their function.The locomotive has multiple parts including the engine, driving wheels, rail cars, and cab. The engine powers the locomotive and is made up of multiple parts including the boiler, cylinders, and smoke stack. The driving wheels are on the front of the engine and move it along the track. The rail cars are behind the engine and push the train along the track. The cab is where the engineer and other crew members work. A standard mainline freight locomotive develops 4400 hp (3.24 MW) with some developing up to 6000 hp (4.47 MW).A standard mainline freight
  • #1
Astronuc
Staff Emeritus
Science Advisor
2023 Award
22,190
6,861
Locomotives are a complex combination of mechanical and electrical systems. The video shows different parts of a locomotive and their function. A standard mainline freight locomotive develops 4400 hp (3.24 MW) with some developing up to 6000 hp (4.47 MW).

The previous standard from the late 1970s was 3000 hp (2.24 MW).

  • Like
  • Informative
Likes dlgoff, gmax137, Filip Larsen and 5 others
Engineering news on Phys.org
  • #2
That's cool. I'm happy to say that I spent 10 years working in the ALCO locomotive factory building. In the video it is called "Building next to Erie Boulevard"

The consulting company I worked for bought the building and converted it to offices. When we tried to drill holes in the floor for plumbing, we found that it was nearly a meter of reinforced concrete. The floor was designed to resist damage if the crane dropped locomotives. That's a viewpoint not often heard, "Locomotives falling from the sky." :wink:


  • Like
  • Informative
  • Haha
Likes diogenesNY, Drakkith, Tom.G and 5 others
  • #3
anorlunda said:
That's a viewpoint not often heard, "Locomotives falling from the sky."

This one did. Kind of...

  • Like
  • Wow
  • Haha
Likes russ_watters, Lnewqban, anorlunda and 1 other person
  • #4

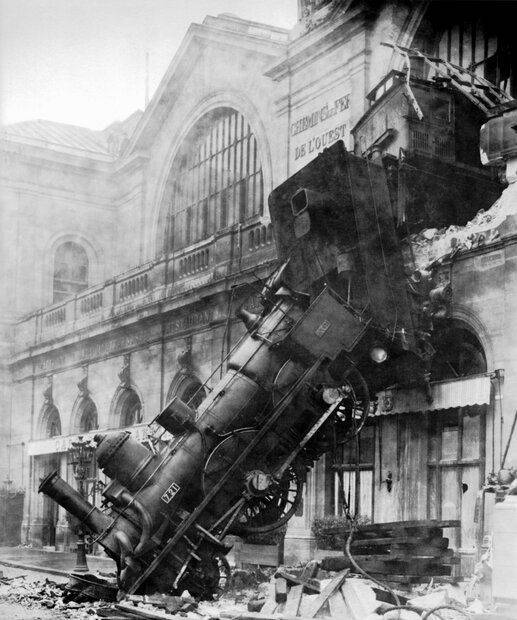

What's interesting about the Montparnasse train wreck in the pic I posted is very minimal damage was done to the locomotive itself aside from cosmetic. It's been recreated in the movie Hugo and in the children's series Thomas the Tank. I never knew much about it until recently other than it was on the cover of Mr. Big's album Lean Into It. An interesting story to say the least. Imagine being the fireman or engineer and jumping out of that.

  • Like
Likes hutchphd
  • #5
anorlunda said:
In the video ...
I wonder if the workers there lost their hearing? Looks like a very dangerous work environment.

  • #6
Averagesupernova said:
View attachment 319428
This one did. Kind of...
I remember that. There was a series of wall posters from the "Oh dang. Great moments in engineering history." series. That picture was one of them.

Another from that series, and my personal favorite, showed a bunch of people looking down at a collapsed RR bridge. If I could find an image of that, I could use it for my PF avatar pic.

  • Like
Likes dlgoff
  • #7
dlgoff said:
I wonder if the workers there lost their hearing? Looks like a very dangerous work environment.
Nobody cared in the days before OSHA laws. I suffered 80% hearing loss handling empty cans at a soda factory. Nobody mentioned ear protection and at age 18, I was too stupid to think about it.

  • Like
Likes dlgoff, Lnewqban and hutchphd
  • #8
Very interesting video. Thanks for sharing.

  • #9
anorlunda said:
....and at age 18, I was too stupid to think about it.
Lol. I think you can be reassured to know that at least at that age you were perfectly normal. I recall being invincible when I was 18. It's an awesome feeling. I'd sure welcome a little bit of it back.

  • Like
Likes dlgoff and scottdave
  • #10
Astronuc said:
The video shows different parts of a locomotive and their function.
What fun it would be to make a locomotive simulator, full size, with full motion, and simulated video scenery viewed out the windows.

  • #11
anorlunda said:
What fun it would be to make a locomotive simulator, full size, with full motion, and simulated video scenery viewed out the windows.
I believe they do for training locomotive engineers.

An example from Canadian Pacific (CP)

GO Train


HENSOLDT offers full scale replica cab simulators for stationary or motion-based installations. I believe this is for EU markets, but in theory could be made for US and Canadian markets.
https://www.hensoldt.net/services/simulation/full-motion-train-simulator-simsphere-train/

  • Like
Likes anorlunda and Lnewqban
  • #12
Averagesupernova said:
Imagine being the fireman or engineer and jumping out of that.
anorlunda said:
What fun it would be to make a locomotive simulator, full size, with full motion, and simulated video scenery viewed out the windows.
:oops:

  • #13
What amazes me is just how small/weak the engines are for locomotives. Even 6,000 hp is just 30 decently powered cars. Yet the locomotive itself weighs more than those 30 cars, as does each of the hundred rail cars that follows. It really drives home how efficient rail travel is, while explaining why the acceleration/deceleration is sooooo slow.

  • Like
Likes scottdave, dlgoff and anorlunda
  • #14
russ_watters said:
What amazes me is just how small/weak the engines are for locomotives. Even 6,000 hp is just 30 decently powered cars. Yet the locomotive itself weighs more than those 30 cars, as does each of the hundred rail cars that follows.
Horsepower (MW) is one factor, and tractive effort is another factor. The weight of the locomotive and wheel geometry in conjunction with the rail geometry ensures a locomotive or set of locomotives can pull a train. Usually, more than one locomotive is used depending on train tonnage and ruling grade; wheel slip is a concern, as is train-track dynamics (including stopping ability) and truck/wheel-rail forces/interactions.

It used to be cars were limited to about 263,000 lbs (131.5 T) gross weight (tare + freight load = light weight + load limit). Then the gross weight was increased to 286,000 lbs (143 T), and trains have normally been 100 cars +/- 20 (4500 - 6700 ft), but railroads have limited train length to about 180 cars (12,000 ft/3657 m) on mainline railroads in US.
https://en.wikipedia.org/wiki/Longest_trains
There are special cases or exceptions.
https://www.freightcourse.com/longest-freight-trains/

Usually, long trains will use distributed power units (DPU) mid-train and at the end for a total of 6-9 on flat/level grade and more on mountain grades.

UP's exception - https://www.latimes.com/archives/la-xpm-2010-jan-13-la-me-monster-train13-2010jan13-story.html

I found an article on the desire for longer trains, which states, "the upper limit on North American freight trains is generally in the 170-220 car range, totally 14,000 feet or so, with average weights of around 14,000 tons or less. The record breaking trains above were found to be impractical and subsequently weren’t run at this length during normal operation. The average freight train is smaller at a little over a mile, but this average has still increased around 25% since 2008."
https://zmodal.com/2020/04/30/trains-are-longer-and-heavier-than-ever/

  • Informative
Likes scottdave, berkeman and anorlunda
  • #15

Union Pacific Testing First-of-its-Kind Hybrid Locomotive​

https://www.up.com/aboutup/community/inside_track/ztr-hybrid-locomotives-it-240429.htm
The first of six cutting-edge hybrid battery-electric locomotives designed and built by Union Pacific Railroad and its partner ZTR, a leading rail technology company, will undergo extensive testing next month in a Union Pacific facility and rail yard.

The first of its kind within North America’s freight rail industry, the prototype has the capacity to run on both diesel and batteries – much like today’s plug-in hybrid cars.

The next of the remaining five hybrid locomotives is expected to be ready for testing next year.

  • #16
Astronuc said:

Union Pacific Testing First-of-its-Kind Hybrid Locomotive​

https://www.up.com/aboutup/community/inside_track/ztr-hybrid-locomotives-it-240429.htm
That is the stupidest idea I've heard in a long time. The advantage of a locomotive is that its path is already known, therefore a fully electric locomotive can be powered by a wire following the path. Oh, Wait! This idea has already been tried, tested, and developed to death, all is left to do is implement it!

A battery cannot offer any advantage over a wire in this case.

  • Like
Likes Bystander
  • #18
jack action said:
That is the stupidest idea I've heard in a long time. The advantage of a locomotive is that its path is already known, therefore a fully electric locomotive can be powered by a wire following the path. Oh, Wait! This idea has already been tried, tested, and developed to death, all is left to do is implement it!

A battery cannot offer any advantage over a wire in this case.
The problem I see with the idea of purely electric locomotives is not any technical issues or challenges with the locomotives themselves.

It’s the power supply lines.

I think there are definitely some areas of the US, especially out west in Basin and Range country and in the mountains, where the logistics of installing, powering, and maintaining those kinds of power lines for the trains might be cost prohibitive. But there are also areas where it would make a lot of sense, such as the Great Plains, or the Eastern Seaboard. There’s plenty of electrical generation capacity there, the terrain is flat and open, and in the case of the east coast, the emissions reductions will certainly be a positive for the neighbors.

The issues that I think are the biggest show stoppers are politics and economics. Politically, I can see it getting shut down by partisanship, for reasons I think most Americans can probably put together themselves. Not going to dig too deeply into that particular barrel of worms here for understandable reasons.
Economically, it’s the electric car paradox all over again. Do you invest in the infrastructure to power the electric locomotives first and hope there’s actually locomotives to use it, or do you build the locomotives first and hope that the infrastructure follows? Granted, the railroads are a little more self-contained, since they own the locomotives and the tracks, but they still need to figure out what to build where.

Personally, I would argue that Union Pacific has a great opportunity to test the concept in California running up and down the Central Valley… if they can find sufficient electricity to make it reliable. I’m pretty sure that the state government would jump at the chance to support it, the terrain in the Valley is quite suitable to it, and it’s a small enough territory for the rollout costs to be acceptable for proof of concept.

  • Like
Likes russ_watters
  • #19
jack action said:
That is the stupidest idea I've heard in a long time. The advantage of a locomotive is that its path is already known, therefore a fully electric locomotive can be powered by a wire following the path. Oh, Wait! This idea has already been tried, tested, and developed to death, all is left to do is implement it!

A battery cannot offer any advantage over a wire in this case.
UP is fairly savvy, with a long history of innovation in-house, and with suppliers. It's not an all electric system, but rather a combo diesel-electric + battery. One advantage may be dynamic braking, which become regenerative breaking if using the downgrade part of the route to recharge the batteries while holding the train without using the mechanical brakes (shoe friction on the wheels of every car).

Yes, it would make sense to electrify - if one could recover the capital costs at a rate to satisfy investors.

Outside of the NE corridor - Washington, DC to NY City to Boston, the longest electrified line was the Milwaukee Road between Harlowton, MT and Avery, ID (Rocky Mountain Division), through the Belt Mountains, over Pipestone Pass in the Rockies, and over St. Paul Pass in the Bitterrott Mountains between Alberton, MT and Avery, ID, and separately, the Coast Division between Othello, WA to Tacoma, WA through the Saddleback and Cascade Mountains.

https://milwaukeeroadarchives.com/Electrification/AProudEraPasses.pdf

There was a lot that went wrong - poor management, deferred maintenance, which lead to increasing derailments and slow orders, loss of business. . . . .

The Milwaukee Road ran out of money and time, and declared bankruptcy in 1977.

UP has survived along with BNSF (merger of BN and ATSF), and both represent a duopoly west of Chicago, St. Louis and New Orleans for E and W freight traffic.

  • Like
Likes SammyS
  • #21
Astronuc said:
One advantage may be dynamic braking, which become regenerative breaking if using the downgrade part of the route to recharge the batteries while holding the train without using the mechanical brakes (shoe friction on the wheels of every car).
You don't need a battery to do that.

Astronuc said:
Yes, it would make sense to electrify - if one could recover the capital costs at a rate to satisfy investors.
If the financing method is the culprit, you change the financing method, not the technology. Everywhere around the world - except North America - people can make electrified railroads work:
https://en.wikipedia.org/wiki/Electric_locomotive said:
The chief disadvantage of electrification is the high cost for infrastructure: overhead lines or third rail, substations, and control systems. Public policy in the U.S. interferes with electrification: higher property taxes are imposed on privately owned rail facilities if they are electrified.[citation needed] [...] Because railroad infrastructure is privately owned in the U.S., railroads are unwilling to make the necessary investments for electrification. In Europe and elsewhere, railway networks are considered part of the national transport infrastructure, just like roads, highways and waterways, so are often financed by the state.[citation needed] Operators of the rolling stock pay fees according to rail use. This makes possible the large investments required for the technically and, in the long-term, also economically advantageous electrification.

I agree with the following statement for battery locomotive:
https://en.wikipedia.org/wiki/Electric_locomotive#Battery_locomotive said:
[Battery] locomotives are used where a diesel or conventional electric locomotive would be unsuitable. An example is maintenance trains on electrified lines when the electricity supply is turned off. Another use for battery locomotives is in industrial facilities (e.g. explosives factories, oil, and gas refineries or chemical factories) where a combustion-powered locomotive (i.e., steam- or diesel-powered) could cause a safety issue due to the risks of fire, explosion or fumes in a confined space. Battery locomotives are preferred for mine railways where gas could be ignited by trolley-powered units arcing at the collection shoes, or where electrical resistance could develop in the supply or return circuits, especially at rail joints, and allow dangerous current leakage into the ground.
Anything else is bad design and poor use or resources.

  • #22
jack action said:
If the financing method is the culprit, you change the financing method, not the technology. Everywhere around the world - except North America - people can make electrified railroads work:
Bingo. That excerpt from Wikipedia hits the nail on the head with a 8 pound sledgehammer.

Unfortunately, I don’t foresee that situation changing anytime.

  • #23
jack action said:
If the financing method is the culprit, you change the financing method, not the technology.
The development of many things we have today was driven by the fact that what existed prior was not cost effective for the general public.
-
If Union Pacific wants to look into this I'm betting they have better qualifications to justify that move than you or I.

  • #24
I think use in the switching yard makes sense if it is also using regenerative braking. There is a lot of starting and stopping in the switch yard.
