Projectile Motion: Finding Total Flight Time of Lettered Images

  • Thread starter Thread starter shin777
  • Start date Start date
  • Tags Tags
    Motion
Click For Summary
SUMMARY

The discussion focuses on calculating the total flight time of a projectile represented by lettered images captured at 0.010-second intervals using a strobe light. The time at point A is defined as zero, and subsequent points (B, C, D, E, F) are calculated based on this interval, leading to a total flight time of 0.040 seconds with a ±1% uncertainty. Participants emphasize the importance of using only the first three and last three points for calculations, as instructed by the teacher, and discuss the need to account for gravitational acceleration along a slanted plane. The final calculations suggest using the ticker tape method to determine average velocities and acceleration.

PREREQUISITES
  • Understanding of basic kinematics and projectile motion
  • Familiarity with strobe light timing and accuracy specifications
  • Knowledge of gravitational acceleration components on inclined planes
  • Ability to perform error calculations in measurements
NEXT STEPS
  • Learn about the ticker tape method for analyzing projectile motion
  • Study the effects of gravitational acceleration on inclined planes
  • Explore error propagation techniques in experimental physics
  • Investigate the relationship between time intervals and position in projectile motion
USEFUL FOR

Students studying physics, particularly those focusing on kinematics and projectile motion, as well as educators looking for practical examples of timing and measurement accuracy in experiments.

shin777
Messages
42
Reaction score
0

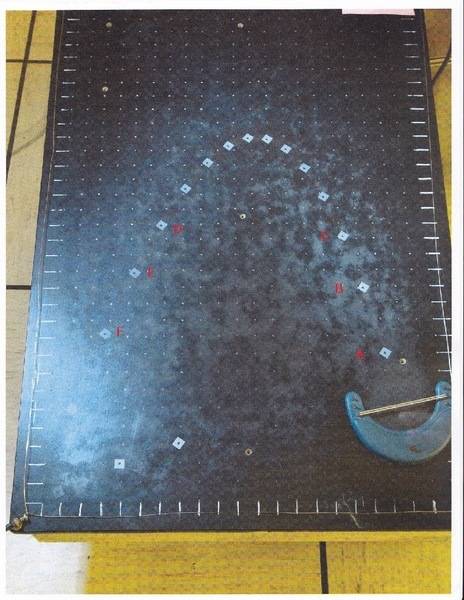

How do I find total time of free flight for lettered images on this photo if time equal zero at point A? The time between flashes is .010s. Note the number of significant figures. The strobe specification say the scale is accurate to +- %1.

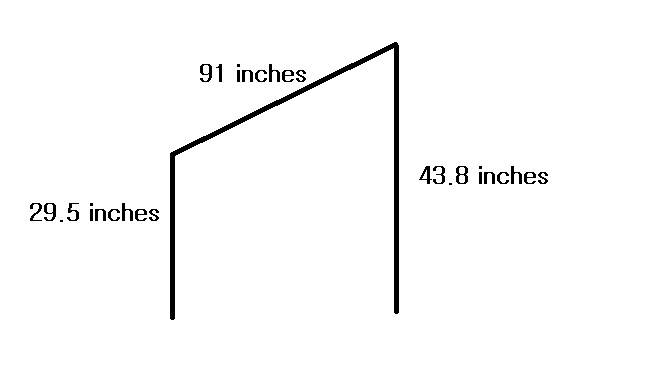

I was also given this diagram for this problem.


I absolutely have no idea how to proceed on this. :(

Physics news on Phys.org
The launched object will be at B 0.010 s after passing point A, 0.020 s later it would be at C ... That is the camera see it in 0.010 s intervals so each position is 0.010 s later in time.

so I just add up numbers? from point to point? it's 0 at a so at B it's 0.010s, at C it's 0.020s, at D same, at E 0.030s and at F 0.040s so total flight time is 0.040s +- 1%?

There are some more points where the camera saw the launched object between points C and D. You should include these in your time reconing. Your problem statement also are not clear. The time of flight will be the total time it spend in its trajectory before hitting the surface. In this case that seems to be where the y-coordinate is zero for which there is no recorded image sou you would need to guess a bit.

My teacher told me use first 3 points and last 3 points as I marked on pictures. He also said horizontal distances between points are always equal.

Yes, the horizontal distance covered between each successive point should be constant. So do your teacher want you to use only the labeled 6 points to somehow determine the time of free flight?

I believe so. When we took pictures at lab, he told us use first 3 and last 3 points. I am reading through lab problems and there aren't any other problems saying that requires all points so I believe we are only using 6 points marked on pic. to be honest, instruction seems to vague to me and this class uses no book and only thing he does at class is solving problems like math class.

Well for starters you could calculate the component of g in the plane of the slanted board.

hmm.. well.. d = Vit+.5(-9.8)t^2 since it's launched... so Vi = 0..
I get -43.8 = .5(-9.8)t^2 resulting t = 2.9 second and uncertainty is +- 1% so answer is 3 second +- 1%.
did I get this wrong? :(

  • #10
You can get the angle of the board from the inches dimensions.

  • #11
which angle should I get? one between 91 and 43.8 or one between 91 and 29.5?
I got theta = 9 degree by using h = 91 , o = 14.3, a = 90.

  • #12
You want to calculate the component of gravitational acceleration along the slanted plane of the board. This will determine the acceleration of the launched object in this plane.

  • #13
I am now more confused.. what does angle have to do with find total flgiht time here? and I don't understand when you say calculate the component of gravitation acceleration along the slanted plane of the board. You totally lost me. :(

  • #14
I am trying to use the given information to solve the problem. This might be one way of doing it.


Attachments

  • component of g along board.jpg
    component of g along board.jpg
    10.2 KB · Views: 400
  • #15
ok then.. how would calculate vertical distance from A to C?
I am thinking D = .5at^2
so D = .5(9.8)(.2^2)
D = .2 inches

  • #16
Sorry, let's drop this approach and rather go for the ticker tape approach (I think that is what your teacher wants you to do).
The acceleration, a, can be calculated from two average velocities, v1a and v2a, in two intervals following each other, eg interval AB and BC.

The average velocities are calculated from

va = Δy/Δt

so that the acceleration will then be

a = (v2a - v1a) / Δt

The Δy you get from the photo between the points and Δt = 0.010 s

  • #17
shin777 said:
<snip large image>

How do I find total time of free flight for lettered images on this photo if time equal zero at point A? The time between flashes is .010s. Note the number of significant figures. The strobe specification say the scale is accurate to +- %1.
Number ALL of the projectile images from 0 through 13 beginning with A being assigned 0. The time period between flashes is 0.010s ± Δt, where Δt determined by the accuracy of the strobe. Then the time of the nth flash is n times the flash period. You'll want to include the error calculation, since the time is ##T_n = n \times (0.010s ± Δt)##.

I was also given this diagram for this problem.
As Basic Physics has stated, that will let you work out a value for the effective acceleration due to gravity acting in the plane of the table surface. Start by finding the angle the surface makes with the horizontal (that's the angle of the slope).

Were you given the measurements of the dot grid (spacing) on the table surface? If not you won't have a direct way to relate image locations to real-world measurements, and you'll have to "invent" a distance unit to work with.
