Simply supported beam vs simply supported flange beam

  • Thread starter tzx9633
  • Start date
  • Tags Tags
    Beam
2 replies · 2K views · last reply
tzx9633

Homework Statement


I want to design the beam as circled . I am wondering should I design it as a simply supported rectangular beam or simply supported flange beam
Someone told me that i should design it as simply supported flange beam . i doubt that it's correct .

Homework Equations

The Attempt at a Solution


I think it should be designed as simply supported rectangular beam . Correct me if i am wrong . [/B]

Attachments

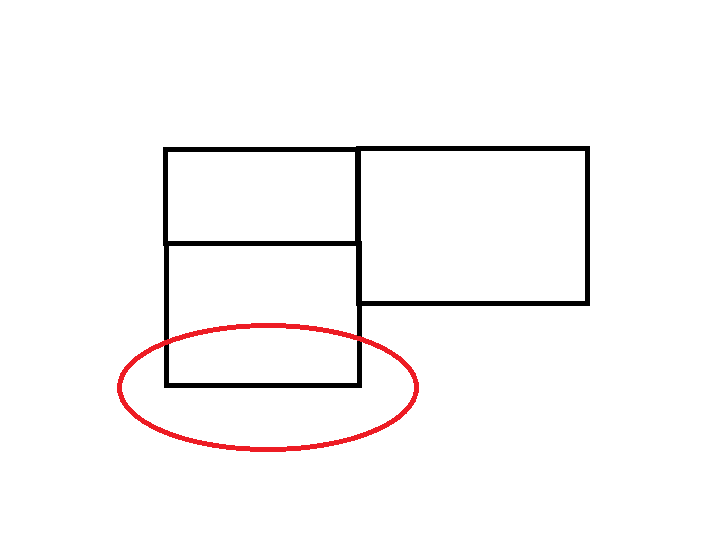

  • Cross-section sketch of two stacked rectangles beside a larger rectangle, with a red ellipse drawn around the bottom of the lower-left rectangle.
    1.2 KB · Views: 550
Hand-drawn sketch of a cross-section: a tall rectangle with a shorter rectangle on top at its left, and a separate wide rectangle to its right, with a red ellipse drawn around the bottom of the tall rectangle.


Could you please explain what that diagram is meant to represent ?

Attachments
  • Hand-drawn sketch of a cross-section: a tall rectangle with a shorter rectangle on top at its left, and a separate wide rectangle to its right, with a red ellipse drawn around the bottom of the tall rectangle.
    1.2 KB · Views: 925
