Solving Geometry Problem in Sediment Bed Research

  • MHB
  • Thread starter Twan
  • Start date
  • Tags
    Geometry
In summary: In summary: you have a problem calculating the height of a sediment layer due to fluctuations in the projection angle, but you don't know what formula to use.
  • #1
Twan
2
0
View attachment 8174View attachment 8175

Hi, this is my first post with a problem that I have during my Msc Project.

I will briefly discuss my project and the reason why I would like to solve this problem, if you do not want to read this part you can skip it.

I am doing experimental research on the scaled laboratory setup where I measure the changes in bottom profiles of a sediment layer under a oscillating fluid flow. Via a pattern matching technique I am able to reconstruct the bottom profile (morphodynamics) of the sediment bed.
The working principle is a beamer that projects a set of projections where white dots are being projected on top op the sediment layer ( trough the water surface ( so refraction will also be part of this problem )). The beamer is positioned under an angle and projects the pattern within my region of interest. Above this region there is a camera that makes pictures of the patterns projected by the beamer.
If the sediment profile in my region of interest changes in height, the projected image will gets distorted. The changes within the projected patterns are then used to reconstruct the ''real'' vertical change in the sediment layer.
- i have 15 pattern images ( within each pattern there are 200 white dots )
- first the 15 patterns are projected on the horizontal surface
- pictures of these patterns are taken and analysed ( i save the (x,y) coordinates of all the 200 dots for each image )
- adding a bit of sediment on the horizontal plate will result in some changes of the x coordinate of some dots
(only the x coordinate varies because the beamer is positioned in line with the x-axis)
- these changes in x coordinate * factor = vertical change.
The factor can be calculated via a calibration where a inclined plane is used, and patterns are projected. Knowing the slope of the plane it is possible to determine the factor.
Every thing is done while water is present.

While analyzing the data I found out that my calculated bed profiles have a small offset ( slope ). This is due to the fact that the projection angle varies throughout my region of interest. ---------------------------
The problem

Is there an analytical solution the the following problem:
I want to have h=h(x,H,deltax) where h is the height of my sediment layer
H is the water level (constant) and deltax is the difference between position of the projection without sediment & with sediment.

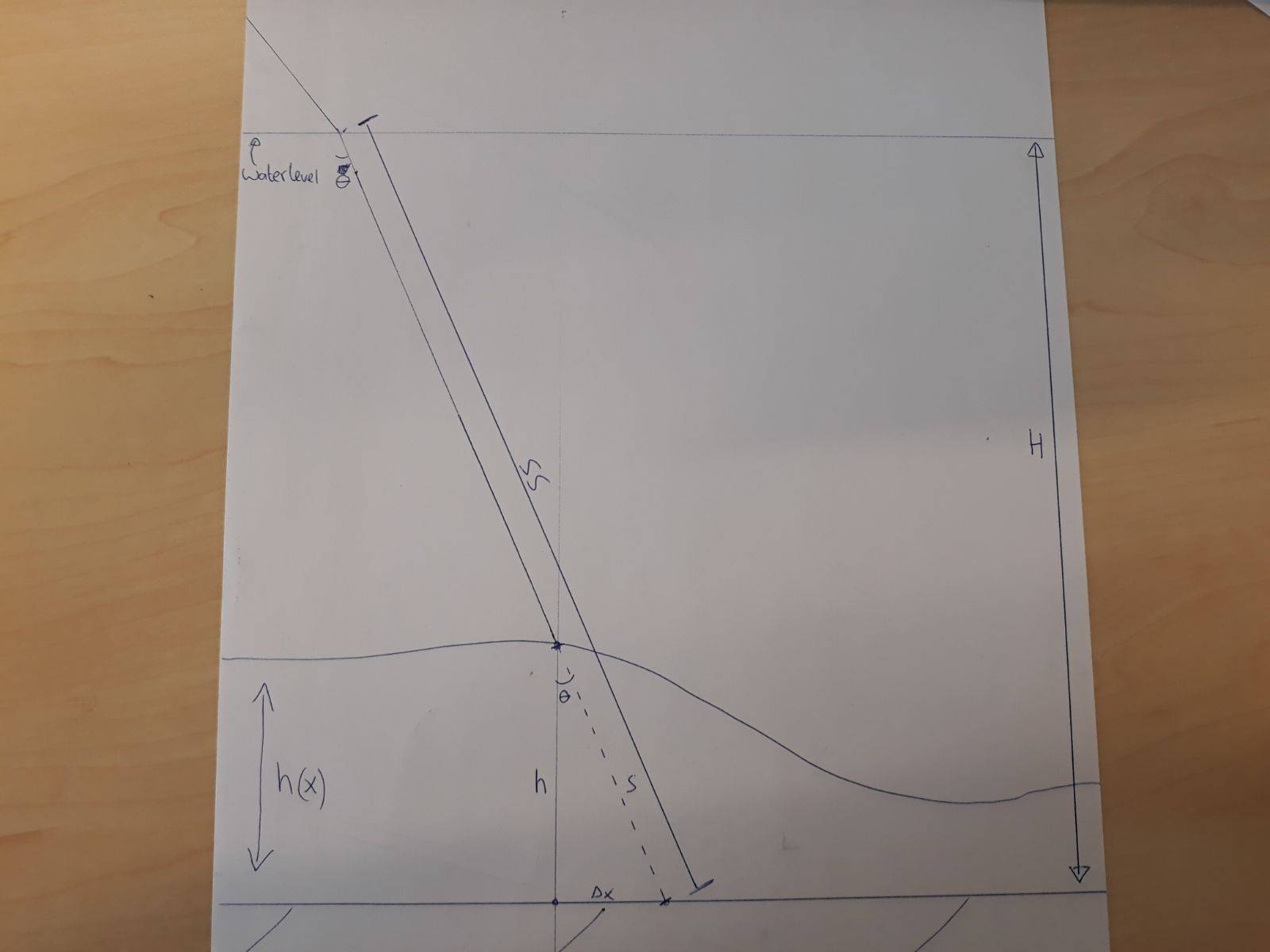

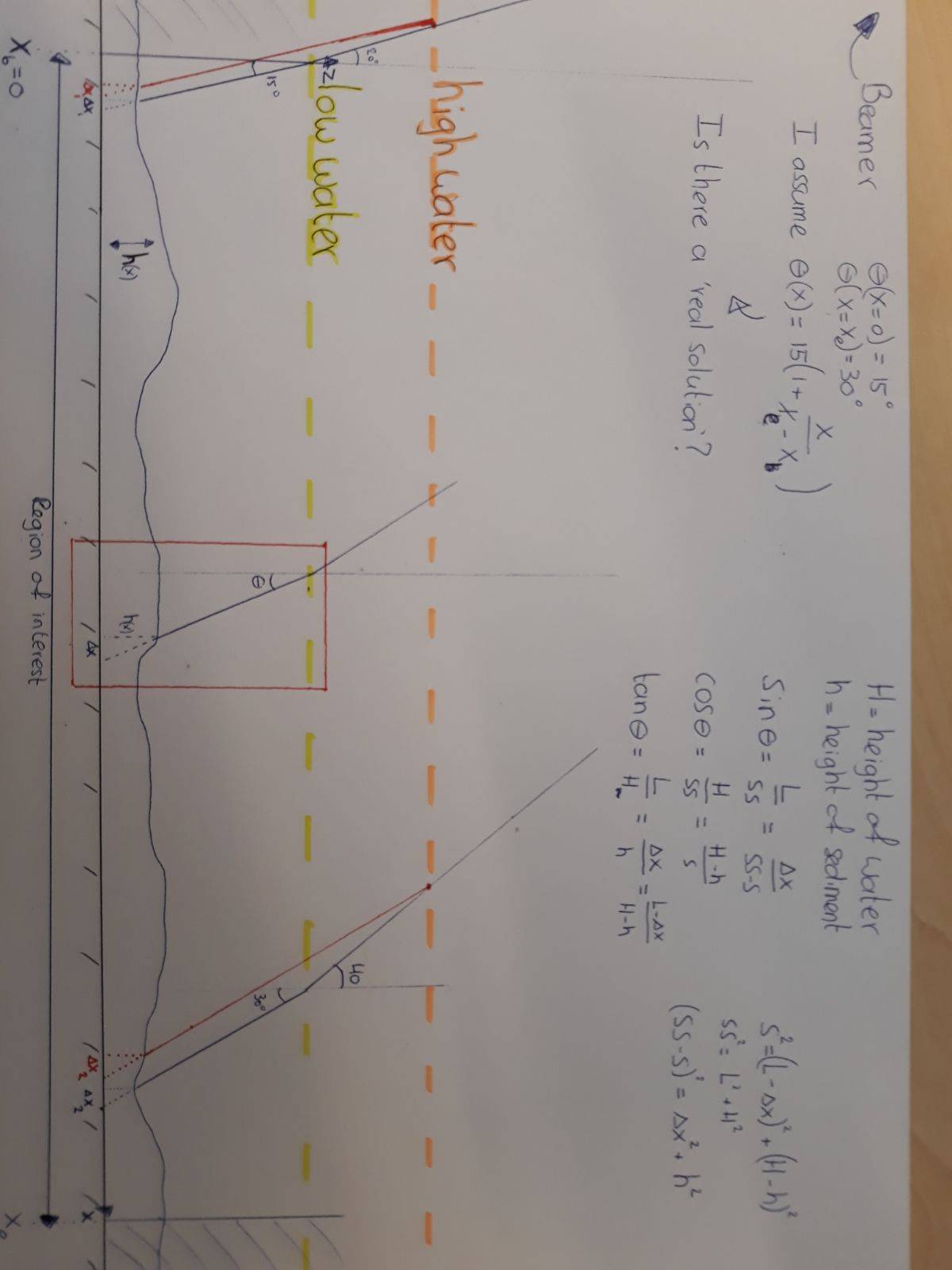

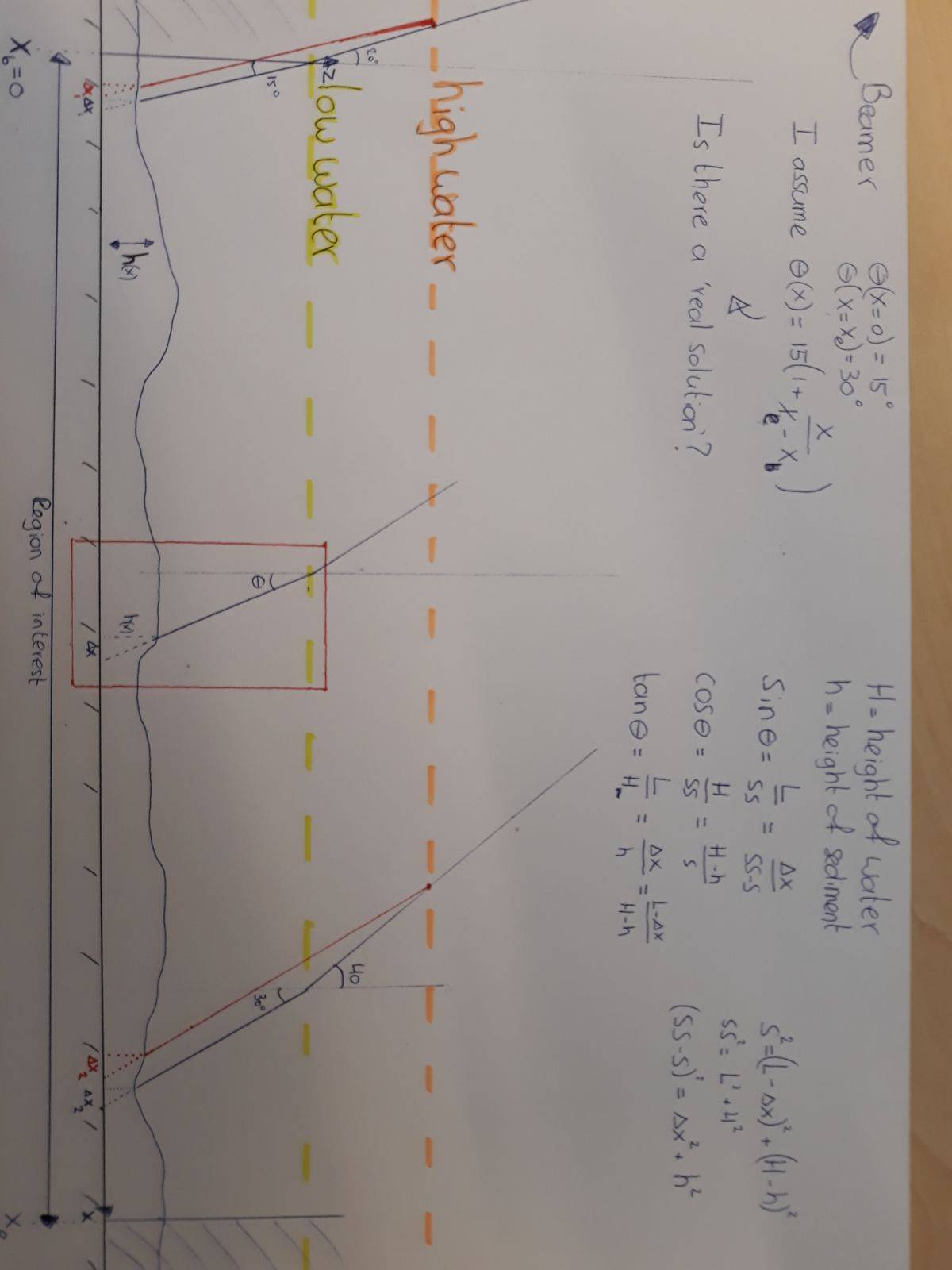

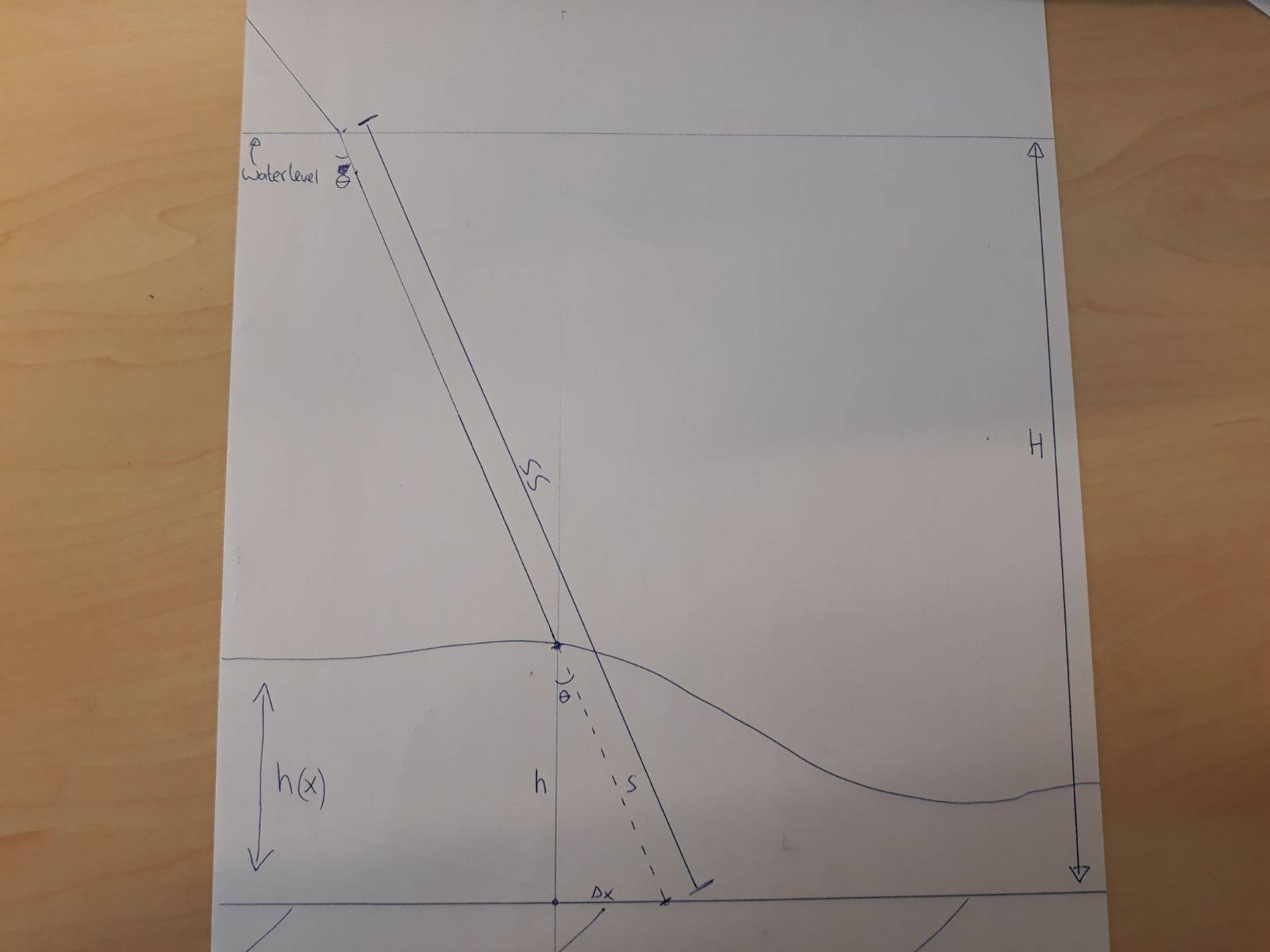

See the image to get an overview of the problem.

So far I have tried several things but I am not able to solve it by hand. (including dummie variables etc)
Maybe someone else can help me by addressing some steps/hints/...

Thanks in advance

Twan


Attachments

  • Question 2.jpeg
    Question 2.jpeg
    53.2 KB · Views: 75
  • Question 1.jpeg
    Question 1.jpeg
    75.9 KB · Views: 73
Mathematics news on Phys.org
  • #2
1) I do not have enough equations to solve for the current number of unknowns.
2) Is there a better ( analytical ) formula for theta i.f.o. x.

  • #3
Hi Twan, welcome to MHB!

To be honest, I'm too lazy too carefully read your post, or to try and understand your problem from the background text, or to try to read a picture that is sideways to begin with.
As no one else has tried to help you yet, I suspect that others may feel the same way.
Can you perhaps break it down a bit, clear if up a bit, or otherwise ask a question that is a bit more specific?


Related to Solving Geometry Problem in Sediment Bed Research

Question 1: What is the purpose of solving geometry problems in sediment bed research?

The purpose of solving geometry problems in sediment bed research is to accurately measure and analyze the shape, size, and arrangement of particles in sediment beds. This information is crucial for understanding sediment transport, erosion, and other geological processes.

Question 2: What types of geometry problems are commonly encountered in sediment bed research?

Commonly encountered geometry problems in sediment bed research include determining the shape and size distribution of sediment particles, measuring the angle of repose of a sediment bed, and calculating the porosity and permeability of a sediment bed.

Question 3: What methods are used to solve geometry problems in sediment bed research?

Various methods can be used to solve geometry problems in sediment bed research, including field measurements, laboratory experiments, and mathematical modeling. These methods often involve using specialized equipment and software to accurately measure and analyze sediment bed geometry.

Question 4: What are some challenges faced when solving geometry problems in sediment bed research?

Solving geometry problems in sediment bed research can be challenging due to the complex and dynamic nature of sediment beds. Factors such as sediment size and shape variation, bedform development, and sediment sorting can make it difficult to obtain accurate measurements and analyze sediment bed geometry.

Question 5: How can solving geometry problems in sediment bed research benefit society?

Solving geometry problems in sediment bed research can provide valuable insights into natural processes such as sediment transport and erosion, which are important for understanding and managing coastal areas, rivers, and other environments. This information can also be used to support engineering projects, such as designing erosion control measures or assessing the potential impact of sediment dredging.
