Technique to analyze complex circuits?
- Thread starter Tekneek
- Start date
In summary, redrawing the circuit multiple times using the rules given will eventually produce a trivial circuit.
- #2
NascentOxygen
Staff Emeritus
Science Advisor
- 9,242
- 1,074
Hi Tekneek. The best approach is to redraw the circuit, preserving its electrical connections but moving or reorienting the drawing of some elements, perhaps just one at a time. You may have to make many attempts before it becomes clear how the arrangement simplifies. It's a case where your skill at this will improve with practice. (Or so they tell me.)
- #3
epenguin
Homework Helper
Gold Member
- 3,636
- 1,010
Nodes connected by simple wire, i.e. nodes with 0 resistance between them are at the same potential and can be condensed into a single node. As you know.
This one seems to condense into a fairly trivial circuit.
This one seems to condense into a fairly trivial circuit.
Last edited:
- #4
Tekneek
- 70
- 0
epenguin said:Nodes connected by simple wire, i.e. nodes with 0 resistance between them are at the same potential and can be condensed into a single node. As you know.
I get what you are saying but i am having hard time redrawing the circuit.
- #5
epenguin
Homework Helper
Gold Member
- 3,636
- 1,010
Tekneek said:
I did a bit. The resistors have numbers, 1,2,2,3,4,5. Giving the nodes letters a,b,c,d,e, I found helped. By what we said before some pairs of them can be fused into one.
Aaargh why am I telling you? - nobody told me. Next time you'll get something I don't. Nice thing about this is that this step involves no calculations.
- #6
AlephZero
Science Advisor
Homework Helper
- 6,982
- 299
There are only 4 different nodes, because of the connecting links. Two are already labeled a and b on your diagram, so label the other two c and d.
To draw a new diagram, start by drawing 4 dots for the nodes and label them. Then draw each resistor between the correct two nodes.
To draw a new diagram, start by drawing 4 dots for the nodes and label them. Then draw each resistor between the correct two nodes.
- #7
NascentOxygen
Staff Emeritus
Science Advisor
- 9,242
- 1,074
See that wire with the neat little bend in the middle of it? Remove it from your schematic. Take it out. This means you have to find somewhere on the remaining circuitry to connect its resistors so that removal of that wire doesn't change a single thing electrically.Tekneek said:
- #8
Tekneek
- 70
- 0
Soo is it like this...
---R1---(R2+R2+R4 in parallel)---R5---
---R1---(R2+R2+R4 in parallel)---R5---
- #9
epenguin
Homework Helper
Gold Member
- 3,636
- 1,010
Tekneek said:
That's what I get.
- #10
jim hardy
Science Advisor
Gold Member
Dearly Missed
- 9,832
- 4,895
The dirt simple general rule is this:
It's an iterative process.
You re-draw the circuit multiple times, in each iteration you combine two elements and replace them with their equivalent. Repeat until it's a trivial circuit.
For example, in your circuit:
You MIGHT go like this:

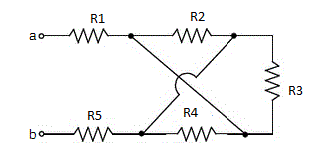

1. Observing that R3 is in parallel with R2, draw the circuit with R3 omitted and R2 replaced by (R2//R3)
2. Observing that R4 is in parallel with (R2//R3), redraw the circuit with R4 omitted and (R2//R3//R4) up there where R2 used to be.
3. Observing that you now have a series circuit of three resistors, redraw it as a single resistor from point a to point b of value (R1 + R5 + (R2//R3//R4)).
Which is what you got.
Now it's a one step solution for current. So you can figure voltage everywhere by reversing the simplifying steps above.
That's the how behind the what. You got the idea already, this is just a simple statement of the process. I hope it's easy to remember.
Practice, practice, practice.
It's an iterative process.
You re-draw the circuit multiple times, in each iteration you combine two elements and replace them with their equivalent. Repeat until it's a trivial circuit.
For example, in your circuit:
You MIGHT go like this:
1. Observing that R3 is in parallel with R2, draw the circuit with R3 omitted and R2 replaced by (R2//R3)
2. Observing that R4 is in parallel with (R2//R3), redraw the circuit with R4 omitted and (R2//R3//R4) up there where R2 used to be.
3. Observing that you now have a series circuit of three resistors, redraw it as a single resistor from point a to point b of value (R1 + R5 + (R2//R3//R4)).
Which is what you got.
Now it's a one step solution for current. So you can figure voltage everywhere by reversing the simplifying steps above.
That's the how behind the what. You got the idea already, this is just a simple statement of the process. I hope it's easy to remember.
Practice, practice, practice.
- #11
Tekneek
- 70
- 0
jim hardy said:
Thanks you and everyone. It does seem practicing with all these different methods is the best :)
