Three vector problems with solutions

  • Thread starter parth0009
  • Start date
1 reply · 6K views · last reply
parth0009
Messages
1
Reaction score
0
[Vectors]Hard Problems... Need to solve Immediately with answer... please... URGENT

Problem 1:

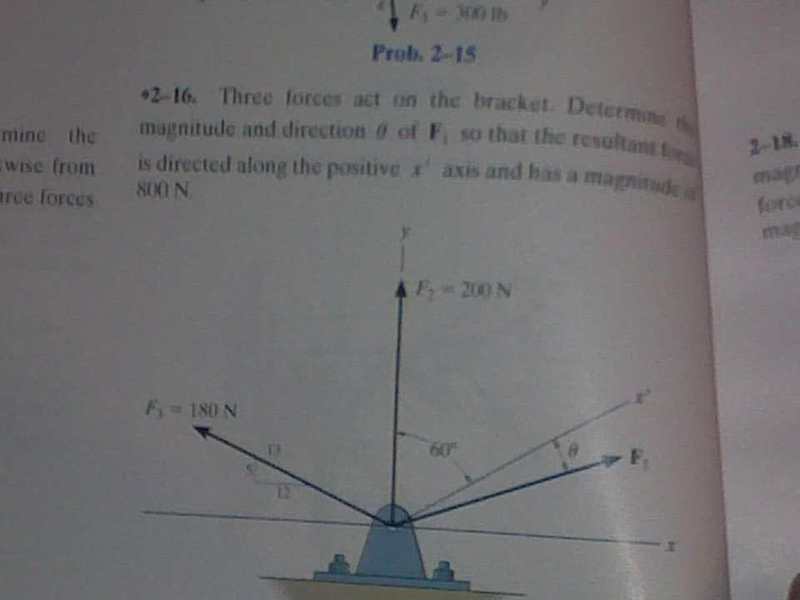

Photo of a textbook page showing Problem 2-16: a bracket with forces F1 = 180 N, F2 = 200 N along y, and F1 at angle theta to the x' axis, with a 60 degree angle marked and a 3-4-5 slope triangle.



Problem 2:

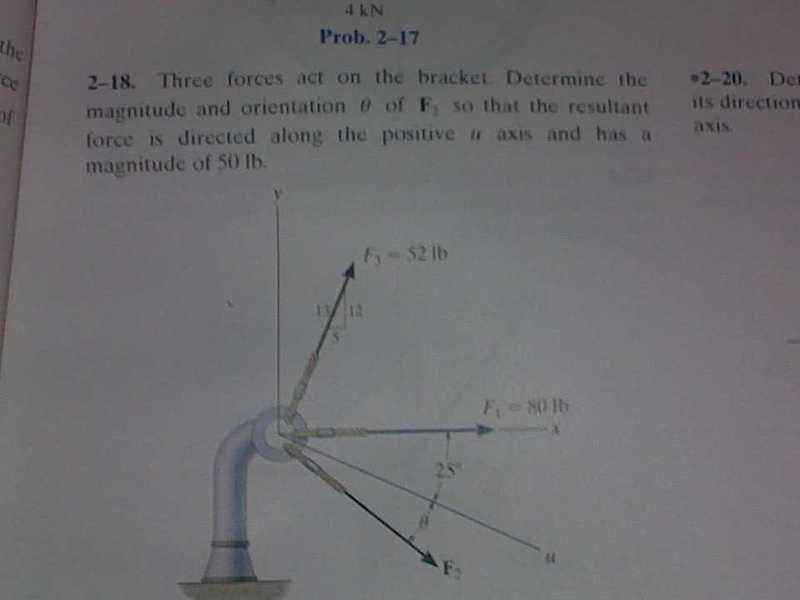

Textbook diagram of a bracket with three forces: F1 = 80 lb horizontal along the x axis, F2 along a u axis at angle θ below it, and F3 = 52 lb at a 5-12-13 slope upward to the left, with x, y and u axes labelled.


Problem 3:

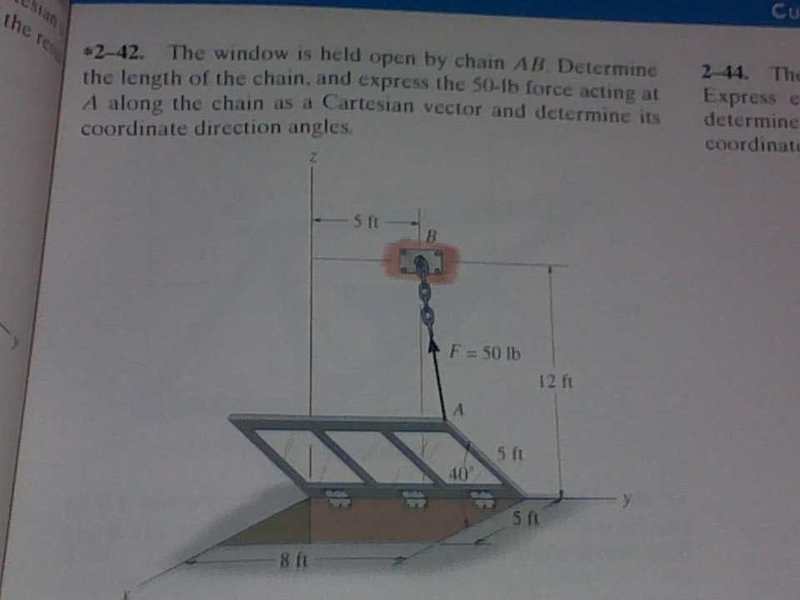

Textbook diagram of a window held open by chain AB: a 12 ft vertical z-axis, 5 ft and 5 ft dimensions, an 8 ft base, a 40° angle, and a 50 lb force F along chain from point A to point B.




Please answer as soon as possible within 3 hours.



You need to pose your attempts.

For the first question try putting the forces into vector form.
