What is the Boolean Equation for This Karnaugh Map?

  • Thread starter Thread starter olimain
  • Start date Start date
  • Tags Tags
    Map
Click For Summary

Discussion Overview

The discussion revolves around determining the Boolean equation for a given Karnaugh Map. Participants are seeking assistance with the process of deriving the equation and sharing tools that may aid in Karnaugh mapping.

Discussion Character

  • Homework-related, Exploratory, Technical explanation

Main Points Raised

  • Oliver expresses difficulty in finding the Boolean equation for a Karnaugh Map and seeks help.
  • One participant suggests that providing working steps or specific difficulties could facilitate assistance.
  • Another participant inquires about the number of groups of minterms visible in the Karnaugh Map.
  • A participant shares a proposed Boolean expression, acknowledging its complexity.
  • Several participants share links to software tools that assist with Karnaugh mapping, indicating a resource-sharing approach.

Areas of Agreement / Disagreement

The discussion does not reach a consensus on the Boolean equation, and multiple approaches and tools are presented without resolution of the initial question.

Contextual Notes

Participants have not provided specific details about the Karnaugh Map itself, which may limit the clarity of the discussion. The proposed Boolean equation and the software suggestions are not evaluated for correctness.

Who May Find This Useful

Individuals interested in digital logic design, Boolean algebra, and those seeking tools for Karnaugh mapping may find this discussion relevant.

olimain
Messages
8
Reaction score
0

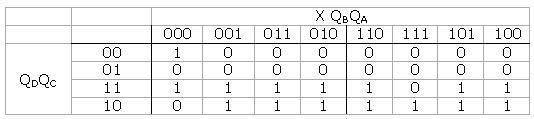

Hi, this should be simple but it's really giving me difficulty. Does anybody know what the Boolean Equation would be for this Karnaugh Map?

Thanks in advance,

Oliver


Attachments

  • kmap.JPG
    12 KB · Views: 485
Physics news on Phys.org
Maybe if you could show some working or where you find the difficulty we could help .

How many groups of minterms do you see?

Urgh, this is kinda bad but:

Qd(QcQa' + QaX' + QbQc' + XQb') + Qa'Qb'Qc'Qd'X'

I know it's not pretty, but it's something.

here is a link to this cool software that i found on the net to help you with k mapping...i use it too

http://www.download.com/KarnaughMap/3000-2054-10374461.html?part=dl-KarnaughM&subj=dl&tag=button

Njoy

-jake

peejake said:
here is a link to this cool software that i found on the net to help you with k mapping...i use it too

http://www.download.com/KarnaughMap/3000-2054-10374461.html?part=dl-KarnaughM&subj=dl&tag=button

Njoy

-jake
Thanks it is very interesting:-p , i am looking for it :biggrin:

i find a better programs from that!
http://www.phoenixbit.com/site/products.asp?productid=karnaughanalyzer
