ian_scotland said:
I don't know if this is of any help to people, but I've an image that may correlate the unit 3 vertical explosion debris visible in the video to the whole Fukushima Daiichi plant layout:

https://www.physicsforums.com/attachments/34094

OK, that attachment failed :-(
How do I attach the image?
click on 'new reply' (bottom left), below where you type in your message, there's a box saying manage attachments, click...browse your pic, upload and close window... submit reply.

Engineering news on Phys.org
  • #3,047
attached image attempt 2 :-)Thanks Artax :-)


Attachments

  • combined image.pdf
    213.6 KB · Views: 251
  • #3,048
artax said:
Anyway, hopefully they'll tell us one day!

I wonder if we will ever know? I mean, doing any kind of forensic analysis is going to be pretty much impossible for any person on site due to radioactivity. Robots might be able to get in certain areas but may be hampered by debris. Getting large stuff off the top to examine the status of the reactor containment and adjacent pools would require a large crane but nobody is going to be able to secure the rigging on the objects being lifted. Or maybe you just try to hook a cable on stuff and drag it off instead of lifting. I just cannot comprehend the task of cleaning up the site or if they choose that path - securing everything for entombment.

  • #3,049
artax said:
{Re red color of dust cloud:} Some of the videos were seriously contrast enhanced due to the distance shot and telephoto lens so the orange will probably be artificial. Though colour can reveal a lot about the chemistry, I suspect simple confined hydrogen explosion full of particles of concrete/dust.

I don't think it is color processing. The buildings did not become reddish.

It is not sunlight either because the time is 11am.

Perhaps they are red-hot glowing particles (=sparks). Note that to have an H2 explosion one must have zirconium at >1000C.

  • #3,051
Re the reddish color of the dust cloud: Perhaps it is also the tar in the roofing material: pulverized by the exposion, heated by the steam and H2 combustion, finally coming in contact with oxygen and burning up.

  • #3,052
Forgive me for going back to the "hallucination" pic:



I had suggested that item (7) could be the water in/out pipes of the spent-fuel pool.

Could be ventilation ducts, but a pic of the reactor's working floor shows only square-section ventilation ducts.

On the other hand, a while ago I saw an NHK framegrab where two guys were debating over a one-foot-tall cutaway 3D model of the SPF. (Sorry, cannot find it now.) Besides the array of fuel assemblies at the bottom, it showed also the two water pipes. *In that model* they were round and painted dull gray. One came inthrough the side, then bent down and ended a couple of meters beloe the water level. The other one came in through the bottom, went up almost to the top, then made two right angles and went back down, siphon-like, almost to the bottom.

  • #3,053

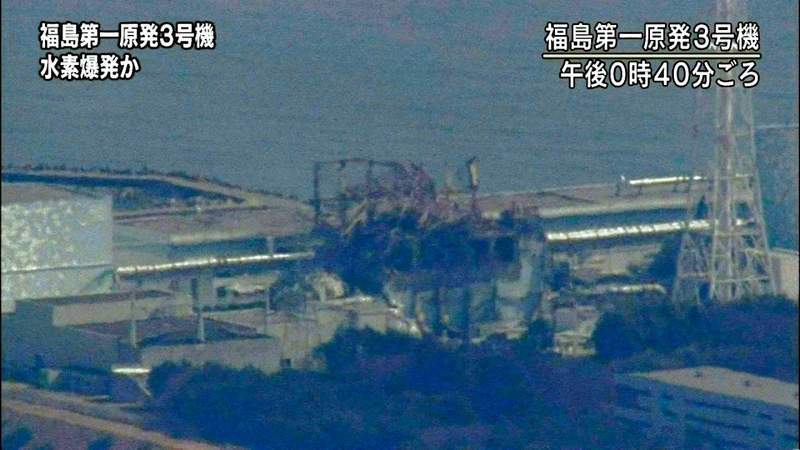

By the size of what is falling from the explosion pillar (right hand side) I would imagine it to be roof sheeting.

fukushimablast.jpe

  • #3,054
PS. Also about item (1): one objection to them being fuel rods is that in the assembly they are held together by several horizontal "spacer" plates, which are missing in the pic.

However, AFAIK the spacer plates are made od steel (MP < 1500C) and the tubes of zircalloy (MP ~1800C). We know that some of the fuel in the SFP #4 was heated to at least 1000C (only way to make enough hydrogen for the explosion in #4). If heating continued past that point, eventually the steel plates would melt leaving the tubes loose. Is that correct?

The outer square jacket is made of zircalloy, correct? If so it would have protected the rods from corrosion (very little steam inside it, not renewed) until the sleeve itself got busted.

  • #3,055
Jorge Stolfi said:
I don't think it is color processing. The buildings did not become reddish.

It is not sunlight either because the time is 11am.

Perhaps they are red-hot glowing particles (=sparks). Note that to have an H2 explosion one must have zirconium at >1000C.
Hydrogen is generated in a corrosion reaction between Zircaloy and water at 300°C. The higher the temperature, the faster the reaction. To have a hydrogen explosion, one only need H2 + O2 with something like a 15% concentration. Below that one gets a fast burn or deflagration.

Also, one doesn't necessarily need O2 as the oxidizer for a hydrogen explosion. Chlorine gas (Cl2) mixed with H2 makes for a pretty good explosion. If there was H2 produced from the Zr + 2 H2O => ZrO2 + 2H2 reactions, and seawater release Cl2, then I wonder if an H2 + Cl2 => 2 HCl reaction in the top of the RPV would be possible.

  • #3,056
artax said:
have a read of this!

http://www.nytimes.com/2011/04/06/world/asia/06nuclear.html?_r=4&hp

(according to a confidential assessment prepared by the Nuclear Regulatory commission...)


"The document also suggests that fragments or particles of nuclear fuel from spent fuel pools above the reactors were blown “up to one mile from the units,” and that pieces of highly radioactive material fell between two units and had to be “bulldozed over,” presumably to protect workers at the site. The ejection of nuclear material, which may have occurred during one of the earlier hydrogen explosions, may indicate more extensive damage to the extremely radioactive pools than previously disclosed. "

Yes, I noted that earlier. The dozer work was necessary before they could bring the crane into spray water at Unit 4.

The confidential report suggests the source of the rods was from "one of the earlier hydrogen explosions". My vote would be Unit 3 as the most likely candidate.

An earlier post referred to differential pressures in an explosion. Hydrogen exploding inside an upper building containment might blow pieces of the roof upward, but is unlikely to blow rods in the bottom of a SFP upward. And that, in my mind, includes hydrogen of origin from dry rods in a SFP.

And so, as ever, in my mind, I keep coming back to steam as the villain and vertical explosion from SFP3 as the vector that ejected fuel rods. And we still don't know for sure if fuel rods are seen atop the NE corner of Bldg 3, which might again implicate the "ballistic" FHM model.

  • #3,057
Jorge Stolfi said:
PS. Also about item (1): one objection to them being fuel rods is that in the assembly they are held together by several horizontal "spacer" plates, which are missing in the pic.

However, AFAIK the spacer plates are made od steel (MP < 1500C) and the tubes of zircalloy (MP ~1800C). We know that some of the fuel in the SFP #4 was heated to at least 1000C (only way to make enough hydrogen for the explosion in #4). If heating continued past that point, eventually the steel plates would melt leaving the tubes loose. Is that correct?

The outer square jacket is made of zircalloy, correct? If so it would have protected the rods from corrosion (very little steam inside it, not renewed) until the sleeve itself got busted.
The spacer grids are fabricated from Zircaloy-2 strip (outer perimeter) and Zircaloy-2 ferrules. There is an Inconel spring shared between pairs of ferrules.

The outer channel (square box with round corners, with width of ~5.3 inches/134 mm) is fabricated from Zircaloy-2 or Zircaloy-4. Hydrogen can be produced by corrosion of Zr by steam at 300°C, although it's expected that without proper cooling the core temperatures were several hundred degrees greater.

  • #3,058
Astronuc said:
The spacer grids are fabricated from Zircaloy-2 strip (outer perimeter) and Zircaloy-2 ferrules. There is an Inconel spring shared between pairs of ferrules.

The outer channel (square box with round corners, with width of ~5.3 inches/134 mm) is fabricated from Zircaloy-2 or Zircaloy-4. Hydrogen can be produced by corrosion of Zr by steam at 300°C, although it's expected that without proper cooling the core temperatures were several hundred degrees greater.

Just to be clear, wouldn't the Hydrogen normally have been vented under such circumstances if it wasn't for the damage from outside forces?

  • #3,059
under normal operating temperatures you don't get hydrogen produced (<300C)

Last edited:
  • #3,060
WhoWee said:
Just to be clear, wouldn't the Hydrogen normally have been vented under such circumstances if it wasn't for the damage from outside forces?
The hydrogen should have been vented up the tall stacks and in a way that it didn't explode. There is certainly something abnormal about the hydrogen detonations/deflagration.

There is apparently unknown damage within the containments. Unit 2 seems to have a very significant leak, and if they are adding water and not able to maintain a certain level in the RPVs or containment, then there is some significant leak or leaks somewhere - whether it's ruptured duct work or cracks in the reinforced-concrete containment structures and steel liners/pipes.

  • #3,061
I too have been curious about the strength of the second explosion.

I have done some online research and would like to share.

These two links provide information on experiments that were performed using molten corium. It was dropped into a pressure vessel partially filled with water. What results is a sudden expansion of steam and pressure.

http://www.osti.gov/bridge/purl.cover.jsp?purl=/5580609-RLgLFl/

http://www.osti.gov/bridge/purl.cover.jsp?purl=/6504026-RyrkV7/

In addition, here are some links about steam explosion in reactor vessels. The stem explosions were triggered by criticality events. However, the end result was the control rods being spat out along with some of the fuel.

http://www.inl.gov/proving-the-principle/chapter_15.pdf

neutron.kth.se/courses/reactor_physics/LectureNotes/BORAX1.pdf

I don’t know what happened at the Unit 3 explosion, but it may be possible that some of the molten fuel dropped into the lower portion of the pressure vessel during an aftershock.

Last edited by a moderator:
  • #3,062
artax said:
under normal operating temperatures you don't get hydrogen produced (<300C)
One gets very little - but one does get hydrogen. Some of the hydrogen produced diffuses into the Zircaloy cladding. At < 300 C, the reaction is very slow. One can do a calculation of how much hydrogen is produced from a reaction of Zr => ZrO2 of thickness ~20-100 microns over the area of the fuel or 400 or 548 assemblies.

Also, if the fuel ruptures, then there is a Zr-linear of 75 microns thickness (which could produce about 200 microns oxide) that can react with water/steam to produce hydrgoen. How much hydrogen generated depends on how many of the cladding tubes and channels oxidized on the outer surface, and how many cladding tubes ruptured in which the liner heavily corroded/oxidized.

  • #3,063
Hi all! Great forum+thread, completely technical and no hysteric radiation fearmogery. This my first post after reading back some 100 posts.

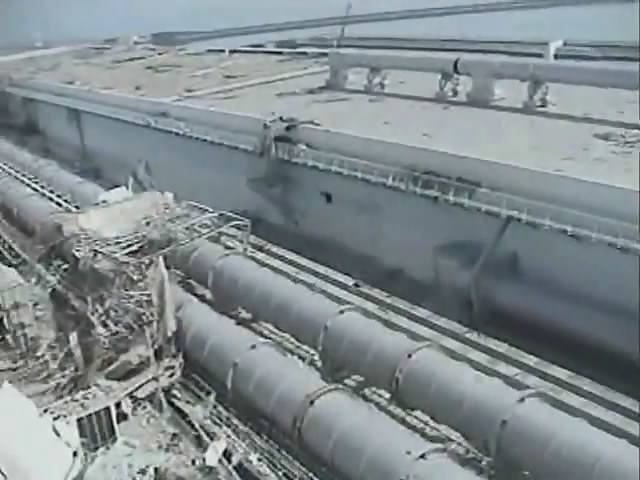

Regarding identification of the items lying around in picture in post #3068:

My "hallucinations" are those:
1. Some tubes, maybe hydraulic, maybe fallen off the green machine.
3. Some part of-red-color-coded plumbery.
4. Impact-broken-off parts of removable pool boundary tubes.
5. Some I-beams from the wall/ceiling girder.

Regarding possibly imminent reactor explosions:

Astronuc in post #3072 mentions the risk of a violent H-Cl-reaction.
Remember back 1979, when all were trembling in hope that the hydrogen bubble in TMI would dissolve before going kaboom.

There seems to be all the needed stuff in the reactors to produce hydrogen in quantities. And there was no venting a long time. Nothing is being reported about the gases composition in the containment.
Just the in-reactor pressure readings are confusing to me. Wasn't there some underpressure? Maybe due to water levels flowing off through cracks etc? However, if I really interpreted the measurements correctly this would mean that air gets sucked into the containment and bringing oxygen in.

As a layman I cannot reject the possibility of an in-containment-explosion and this worries me.

So my question to the experts:

Can you please explain if there is still a risk of reactors exploding and burping out their contents? Or is such just impossible?

I really hope I got something wrong.

  • #3,064
Astronuc said:
Chlorine gas (Cl2) mixed with H2 makes for a pretty good explosion.

That may hold for #1--#3, but in #4 (IIRC) they only started spraying the SPF with seawater AFTER the explosion.

  • #3,065
NUCENG said:
Re: AntonL #3051, NUCENG #3053 BOREK #3054


As promised. I looked at the TEPCO sequence of events and JAIF Plant Status reports.

Explosions were reported on 3/12, 3/14, and 3/15, Unit 4 was damaged about the 15th or 16th.

Seawater had been injected into RPVs on Units 1 and 3.

Seawater injection into containment was still being planned/considered on 3/16.

TEPCO is still reporting no coolant leakage into containment on all units. ?

Conclusion: Sea water injection into contaiment followed explosions and therefor oxygen dissolved in seawater could not have been responsible for creating an explosive mixture inside containment. The only remaining possibility would have been containment failures from the earthquake, but since there was a high pressure in containment, it would be tough to get air inleakage. Unless I missed something about the mixture of steam, oxygen, hydrogen, and nitrogen in containment, I just don't see an condition that could lead to an explosion inside containment.
Time line based on TEPCO/NISA and Der Spiegel reports.

http://www.nisa.meti.go.jp/english/files/en20110327-2-1.pdf
http://www.spiegel.de/images/image-193266-galleryV9-quxr.jpg

16:36 March 11 - Loss of cooling (EDGs) at Unit 1 (about 1 hour, 50 min after earthquake, which is just after the tsunami hit the site)

15:36 March 12 - Explosion of Unit 1 (Upper containment heavily damaged)

20:20 March 12 - Seawater injection into Unit 1 RPV (via fire extinguisher line)

20:41 March 12 - Venting of Unit 3
08:41 March 13 - Venting of Unit 3

09:20 March 13 - Steam release from Unit 3
11:55 March 13 - Fresh water started to be injected to RPV via the Fire Extinguish Line.
13:12 March 13 - Seawater started to be injected to RPV via the Fire Extinguish Line.

01:10 March 14 - Seawater injection for Units 1 and 3 was interrupted due to the lack of seawater in pit.
03:20 March 14 - Seawater injection to RPV for Unit 3 was restarted.
05:20 March 14 - Operation of Vent
07:44 March 14 - The pressure in Primary Containment Vessel (PCV) of Unit 3 rose unusually.
07:52 March 14 - TEPCO reported to NISA on the event falling under the Article 15 of the Act on Special Measures Concerning Nuclear Emergency Preparedness.

11:01 March 14 - Explosion of Unit 3

19:20 March 14 - Seawater injection into Unit 2 RPV (via fire extinguisher line)

06:10 March 15 - Sound of Explosion in Unit 2 - explosion seems to be in containment.

06:14 March 15 - It was confirmed that a part of wall in the operation area of Unit 4 was damaged.
11:00 March 15 - The fire (hydrogen deflagration?) at Unit 4 occurred. (09:38 March 15th) TEPCO reported that the fire was extinguished spontaneously.

It would be useful to review the progression of damage to Unit 4 after the explosion of Unit 3, because immediately after the explosion of U3, the upper containment of Unit 4 seemed to be more or less intact.

Last edited by a moderator:
  • #3,066
Jorge Stolfi said:
That may hold for #1--#3, but in #4 (IIRC) they only started spraying the SPF with seawater AFTER the explosion.
Unit 4 is different from the other units because it's core was empty and in the SFP. The RPV would have been open, so there is no concern about hydrogen from the RPV. Units 1, 2 and 3 would be at risk.

On the othe hand, the explosion in Unit 1 occurred BEFORE seawater, but the explosion of Unit 3 (and possible explosion in Unit 2) occurred AFTER seawater injection, was introduced according to the timeline.

The SFP at Unit 4 had a greater thermal burden than the other pools - more assemblies, and particularly the fuel to be reinserted into the reactor. That fuel had only cooled about 110 days. The older fuel would have cooled for more than one year - ~ 400-500 days, and older fuel even more.

The NYTimes report of the confidential assessment cites that fuel fragments and/or particles were discharged between units, but it doesn't say which units. That would be key in terms of determining which SFP might have been the source.

  • #3,067
Thanks Astronuc and others for the patient clarifications.

Another question: in a TEPCO slide set circulated weeks ago (on long term plans for spent-fuel storage) it said that assembies cool enough for dry-cask storage are individually surrounded by a boron-doped aluminum sleeve to avoid any risk of criticality.

While in the SPF, the assemblies presumably are separated by neutron-absorbing baffles or sleeves, for the same purpose. Are those neutron absorbers also made of boron-doped aluminum (MP ~660C)?

  • #3,068
yes there was a reported explosion in unit 4, but it was never videod, looking at the high res drone images, the explosion seems to have been centred lower down in the building.
The roof has bowed upwards though as can be seen from the way the top of the wall are pulled inwards.
This explosion analysis from images/deformations/debris, is by far the most interesting part of problem to me.
Probably because they've just said hydrogen explosion... and then nothing else!
It just fuels suspicion.

  • #3,069
And yet another dumb question: was the #4 fuel all in one layer at the bottom of the SFP? Any chance that they might have placed some of it in a second layer? (That would still leave 5-6 meters of water above the second layer, right?)

  • #3,071
artax said:
...reported explosion in unit 4, but it was never videod...

It happened in dark night.
Beware: the timeline of the "Der Spiegel" is in german time, not in local time! Don't get confused!

Jorge Stolfi said:
And yet another dumb question: was the #4 fuel all in one layer at the bottom of the SFP? Any chance that they might have placed some of it in a second layer? (That would still leave 5-6 meters of water above the second layer, right?)

Some 100 posts ago somebody explained in detail, and concluded that most of the fuel will probably be in the lower (the second) pool, but some fuel might have been temporarily stored at the instruments (higher) pool together with the activated neutron flux meters etc.

  • #3,072
I have not seen one evidence suggesting that the BWR used at fukushima hast two pool depth. All the document seen so far indicate other wise.
That been said I don't know about stacking

  • #3,073
Jorge Stolfi said:
Thanks Astronuc and others for the patient clarifications.

Another question: in a TEPCO slide set circulated weeks ago (on long term plans for spent-fuel storage) it said that assembies cool enough for dry-cask storage are individually surrounded by a boron-doped aluminum sleeve to avoid any risk of criticality.

While in the SPF, the assemblies presumably are separated by neutron-absorbing baffles or sleeves, for the same purpose. Are those neutron absorbers also made of boron-doped aluminum (MP ~660C)?
The spent fuel racks have either boraflex or boral plates. I'm not sure of the exact construction, but I do know that degradation and loss of boron is a concern, particularly if the pool heats up.

What happened at Fukushima was hypothetical - until it actually happened. :uhh:

  • #3,074
Atomfritz said:
It happened in dark night.
Beware: the timeline of the "Der Spiegel" is in german time, not in local time! Don't get confused!



Some 100 posts ago somebody explained in detail, and concluded that most of the fuel will probably be in the lower (the second) pool, but some fuel might have been temporarily stored at the instruments (higher) pool together with the activated neutron flux meters etc.

You are right. I have been searching for that post - can remember that someone mentioned that Fukushima engineers had begun storing fuel rods at the equipment pool, due to overcapacity of spent fuel pool.

But I haven't found the post yet. But I do know that is has been stated (benefit of a visual memory)

  • #3,075
jensjakob said:
You are right. I have been searching for that post - can remember that someone mentioned that Fukushima engineers had begun storing fuel rods at the equipment pool, due to overcapacity of spent fuel pool.
I find that hard to believe. There was sufficient capacity at Units 1, 2 and 3. Is this a reference to SFP in Unit 4?

They would have had to put a rack in the equipment pool. As far as I know, that pool is not cooled. The water is for shielding of any radiation on the steam separators which normally sit just above core and do get some irradation during operation.

  • #3,076
Jorge Stolfi said:
And yet another dumb question: was the #4 fuel all in one layer at the bottom of the SFP? Any chance that they might have placed some of it in a second layer? (That would still leave 5-6 meters of water above the second layer, right?)

In here http://www.google.co.uk/url?sa=t&so...g=AFQjCNHvmvjzUQY_apDXEqIqcmenR6gKzA&cad=rja"

It says that the spent fuel pools are at about half capacity, however, that is only after "Re-racking", whether re-racking involves more than one layer, or just assemblies beeing placed closer together would be something for people with more expertise.

looking at dates though that does appear to be before number 4 was emptied.

Last edited by a moderator:
  • #3,077
Are they finally getting their s**t together?

http://www.globalnews.ca/sports/Japan+focuses+hydrogen+buildup+after+nuclear+leak/4567696/story.html

  • #3,078
Astronuc said:
I find that hard to believe. There was sufficient capacity at Units 1, 2 and 3. Is this a reference to SFP in Unit 4?

They would have had to put a rack in the equipment pool. As far as I know, that pool is not cooled. The water is for shielding of any radiation on the steam separators which normally sit just above core and do get some irradation during operation.

I don't think the fuel handling machine even goes past the reactor containment to the equipment pool, does it? And that being the case, then the overhead crane would be needed to transfer fuel rods, but than only happens after fuel rods have been put in casks. So, even if they wanted to get the fuel rods into the equipment pool, I can't see how they would do it.

  • #3,079
georgiworld said:
Are they finally getting their s**t together?

http://www.globalnews.ca/sports/Japan+focuses+hydrogen+buildup+after+nuclear+leak/4567696/story.html

Very interesting! and to quote in part the referenced article:

"The possibility of another hydrogen explosion like those that ripped through reactors 1 and 3 early in the crisis, spreading high levels of radiation into the air, was "extremely low," he said.

But TEPCO suspected that the outside casing of the reactor vessel was damaged, said the official.

"Under these conditions, if we continue cooling the reactors with water, the hydrogen leaking from the reactor vessel to the containment vessel could accumulate and could reach a point where it could explode," he added."


and I again refer to my analysis at post #2936
https://www.physicsforums.com/showpost.php?p=3230713&postcount=2936

and my opinion of where damage to the reactor pressure vessel damage from lateral acceleration exceeding design parameters might be likely to occur (X marks the spot)

http://i306.photobucket.com/albums/nn270/tcups/Screenshot2011-04-05at100427AM.png

just saying . . .

Last edited by a moderator:
  • #3,080
Astronuc said:
The spent fuel racks have either boraflex or boral plates.

Google tells me that
* boraflex is some silicone polymer with boron carbide particles
* boral is a layer of boron carbide dispersed in aluminum, sanwiched between aluminum plates.

Is that correct? So
* (H2 was generated in the SFP #4), implies
* (zirconium was exposed to steam at >300C), implies
* (part of the fuel was uncovered for some time), implies
* (temperature may have reached 700C), implies
* (neutron-absorbing baffles between assemblies melted or burned out), implies
* ...?


Similar threads

  • Nuclear Engineering
2
Replies
41
Views
3K
  • Nuclear Engineering
Replies
12
Views
46K
  • Nuclear Engineering
51
Replies
2K
Views
418K
  • Nuclear Engineering
Replies
2
Views
2K
  • Nuclear Engineering
Replies
5
Views
5K
Replies
6
Views
17K
  • Nuclear Engineering
22
Replies
763
Views
259K
  • Nuclear Engineering
2
Replies
38
Views
14K
Replies
6
Views
3K
  • Nuclear Engineering
Replies
4
Views
11K
Back
Top
