Trailer hitch and draw bar (vehicle)

In summary, the conversation is about a person seeking a fundamental understanding of a trailer hitch and its function in stress analysis. The conversation also includes questions about the different parts of a trailer hitch and the operation of a trailer hitch, draw bar, and bolt. The conversation ends with a request for a visual aid to better understand the concept.
  • #1
svishal03
129
1
Hi,

I'm not a mechanical or an automobile engineer and have a poor knowledge of vehicles as I don't drive.

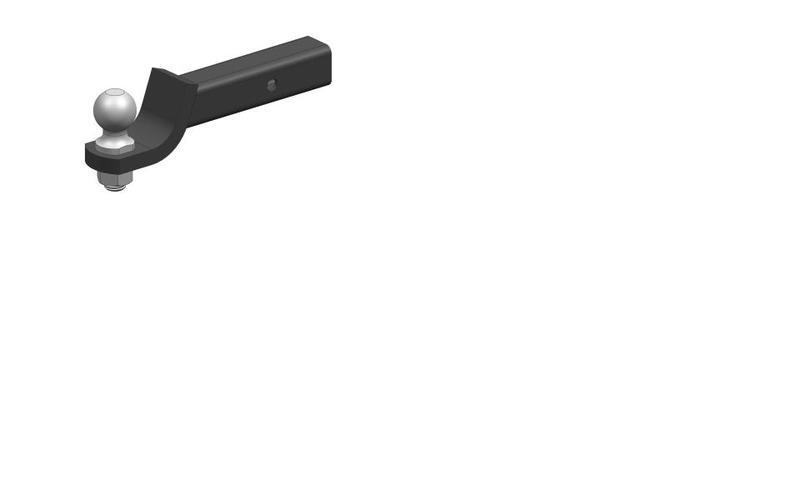

I'm solving a particular problem in mechanics dealing with stress analysis which deals with a trailer hitch (See attached figure)

Can anyoen tell me ina very fundamental manner

1) What is a trailer hitch ? (I understand through wikepedia that a trailer hitch is an unpowered vehicle pulled by a powered vehicle)

2) Considering the attached figure, my questions are

a) Which oen is a trailer hitch and which is a draw bar in the figure?
b)What is the function of the bolt in the figure?
c)Can anyoen explain the operation of the trailer hitch,draw bar and state of stress in thebolt ?

I shall eb grateful



Vishal


Attachments

  • trailer_hitch.jpg
    4.1 KB · Views: 585
Engineering news on Phys.org
  • #2
Can anyone pleaseeeee help?

  • #3
A trailer hitch is a device which allows a car or truck to pull a trailer. The trailer is an unpowered wheeled vehicle.

The draw bar in the attached figure is the straight rectangular piece. The draw bar is attached to the pulling vehicle.

The ball piece on the left end permits the trailer to articulate when the pulling vehicle makes a turn. The trailer has a corresponding piece called a coupler which projects from the front of the trailer and slips over the ball of the hitch.

  • #4
Thank you very much.
Does the attached picture show the trailer? You said the draw bar is the straight rectangular piece.What is the curved piece in the figure - is the curved piece the trailer?

What are the loads / state of stress on the bolt there?

  • #5
It might help to see a trailer hitch attached to a car...



... and towing a trailer



1. What is a trailer hitch and draw bar?

A trailer hitch and draw bar is a towing system that is attached to the chassis of a vehicle to tow a trailer or another vehicle. The hitch is typically a metal receiver attached to the rear of the vehicle, and the draw bar is the part that connects the trailer to the hitch.

2. How do I choose the right trailer hitch and draw bar for my vehicle?

The most important factor in choosing the right trailer hitch and draw bar is the weight capacity. You should check your vehicle's manual to determine the maximum towing weight it can handle. The hitch and draw bar you choose should have a weight capacity that is equal to or greater than the weight of the trailer you will be towing.

3. What is the difference between a weight-carrying and weight-distributing hitch?

A weight-carrying hitch supports the full weight of the trailer on the hitch ball, while a weight-distributing hitch uses spring bars to distribute some of the trailer's weight to the front axle of the towing vehicle. Weight-distributing hitches are recommended for heavier trailers to improve stability and control.

4. Can I install a trailer hitch and draw bar myself?

Installing a trailer hitch and draw bar can be a complex process and it is recommended to have it installed by a professional. However, if you have experience with automotive repairs and have the necessary tools, you may be able to install it yourself. Be sure to carefully follow the instructions provided with the hitch and draw bar.

5. How do I maintain my trailer hitch and draw bar?

To ensure the safety and longevity of your trailer hitch and draw bar, you should inspect and clean them regularly. Check for any signs of wear or damage, and make sure all bolts and connections are tight. Lubricate moving parts and keep them free of dirt and debris. If you notice any issues, have them repaired or replaced by a professional.
