Building a Circuit: GND Grounding

Click For Summary
SUMMARY

The discussion focuses on the proper grounding (GND) techniques for constructing circuits on a breadboard, specifically addressing the use of a round-hole breadboard model with 840 points. Participants emphasize the importance of understanding the internal connections of the breadboard, which features separated power bus strips. A recommendation is made to use a Digital Volt Meter (DVM) to verify connections and ensure proper grounding throughout the circuit. Additionally, a tutorial link is provided to aid in visualizing the breadboarding process.

PREREQUISITES
  • Understanding of breadboard layout and functionality
  • Familiarity with circuit construction techniques
  • Knowledge of grounding principles in electronics
  • Ability to use a Digital Volt Meter (DVM)
NEXT STEPS
  • Research the internal wiring of different breadboard models
  • Learn about proper grounding techniques in circuit design
  • Explore tutorials on breadboarding and circuit assembly
  • Practice using a Digital Volt Meter (DVM) for circuit testing
USEFUL FOR

Electronics students, hobbyists building circuits, and anyone interested in mastering breadboarding techniques and grounding methods.

GregoryGr
Messages
41
Reaction score
0

Homework Statement



Basically construct the circuit on a breadboard and take some measurements:

http://ithaki.eng.auth.gr/aetos/elab/image.php?x=44

Homework Equations



-

The Attempt at a Solution


-

My only question is how am I supposed to do the GND grounding that it wants? o.O

Last edited by a moderator:
Physics news on Phys.org
GregoryGr said:

Homework Statement



Basically construct the circuit on a breadboard and take some measurements:

http://ithaki.eng.auth.gr/aetos/elab/image.php?x=44

Homework Equations



-

The Attempt at a Solution


-

My only question is how am I supposed to do the GND grounding that it wants? o.O

What kind of breadboard are you using? Many breadboards have bus strips that run their length, to let you more conveniently connect power and ground in many parts of the breadboard. Can you post a picture of your breadboard?

Last edited by a moderator:
There should be a spot designated for the ground wire on the bread board.

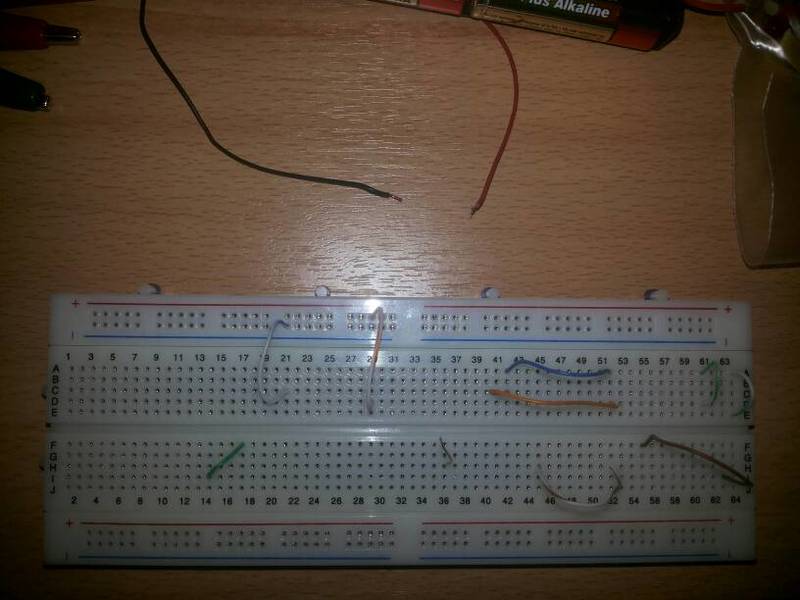

Here's the breadboard...


Attachments

  • 1395151375181.jpg
    49 KB · Views: 482
Do you have the connection diagram for that breadboard? It has a very specific way that the plug holes are connected internally.

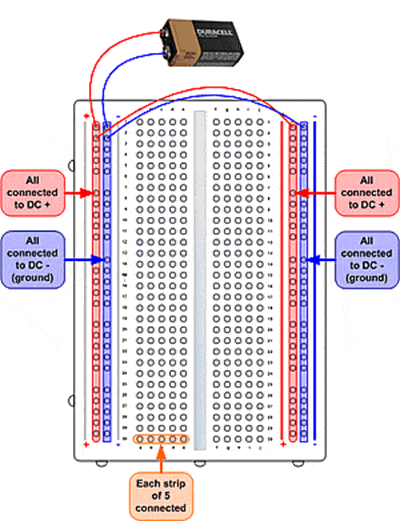

This tutorial about breadboarding shows how the holes are connected on a typical breadboard:

http://www.beavisaudio.com/techpages/SchematicToReality/

The only difference with your breadboard is that there are 2 halves to the breadboard. The long power bus strips are separated in the middle (note the slightly wider gap there), so you need to jumper between the halves if you want to carry a voltage or ground down the full length of the breadboard. Use a DVM and a couple wires to beep out your breadboard to be sure you understand how to hook things up.


Attachments

  • fig6_1.gif
    52 KB · Views: 627
