Circuit Analysis: KVL/KCL Setup Help

Click For Summary
SUMMARY

The discussion focuses on the setup of Kirchhoff's Voltage Law (KVL) and Kirchhoff's Current Law (KCL) for a specific electrical circuit. The user correctly formulates KVL as v0 = i1*R1 + i2*R2 and KCL as i1 = i2 + i3. Additionally, the relationship v2 = i2*R2 and v3 = i3*R3 is established, confirming the user's understanding of the circuit analysis principles.

PREREQUISITES
  • Understanding of Kirchhoff's Voltage Law (KVL)
  • Understanding of Kirchhoff's Current Law (KCL)
  • Basic knowledge of electrical circuit components (resistors, voltages, currents)
  • Familiarity with circuit analysis notation
NEXT STEPS
  • Study advanced applications of Kirchhoff's Laws in complex circuits
  • Learn about Thevenin's and Norton's Theorems for circuit simplification
  • Explore mesh and nodal analysis techniques for circuit analysis
  • Investigate simulation tools like LTspice for circuit verification
USEFUL FOR

Electrical engineering students, circuit designers, and anyone involved in analyzing and designing electrical circuits will benefit from this discussion.

magnifik
Messages
350
Reaction score
0

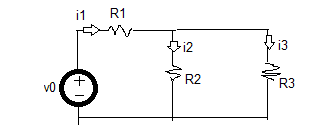

Can someone please tell me if i am setting up the KVL and KCL for the following circuit correctly?



KVL: v0 = i1*R1 + i2*R2
v2 = v3 // v2 = i2*R2; v3 = i3*R3
KCL: i1 = i2 + i3

thanks in advance

Physics news on Phys.org
Looks fine, if I'm understanding your notation correctly.
