Hi,

i want to make automatic on/off the pump with float switch for my tank with contactor(with auxillary contact)

i have,
1. contactor with auxillary contacts
2. Float switch
3. Manual On/Off switch for pump

i want the connection details according to attached diagram.

Thanks.


Attachments

  • Diagram.JPG
    9.3 KB · Views: 489
Engineering news on Phys.org

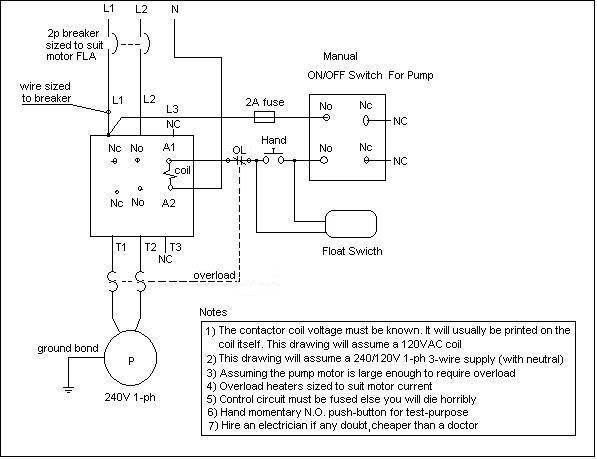

here you go


Attachments

  • pump1.JPG
    38.6 KB · Views: 453
