Determining V0: Using Source Transformation and Node Voltage Analysis

  • Thread starter Thread starter qwerty321
  • Start date Start date
Click For Summary
SUMMARY

The discussion focuses on determining the voltage V0 using source transformation and node voltage analysis in circuit analysis. The user encounters two variables, Io and V0, and seeks assistance in resolving Io to find V0. The mention of a 2-ohm resistor suggests a specific circuit configuration that may influence the calculations. The user is looking for a definitive method to simplify the analysis and solve for V0.

PREREQUISITES
  • Understanding of circuit analysis principles
  • Familiarity with source transformation techniques
  • Knowledge of node voltage analysis
  • Basic concepts of Ohm's Law
NEXT STEPS
  • Study source transformation in depth to clarify its application in circuit problems
  • Learn node voltage analysis techniques for complex circuits
  • Explore methods for resolving multiple variables in circuit equations
  • Review Ohm's Law applications in circuit analysis
USEFUL FOR

Electrical engineering students, circuit designers, and anyone involved in analyzing electrical circuits using source transformation and node voltage analysis.

qwerty321
Messages
56
Reaction score
0

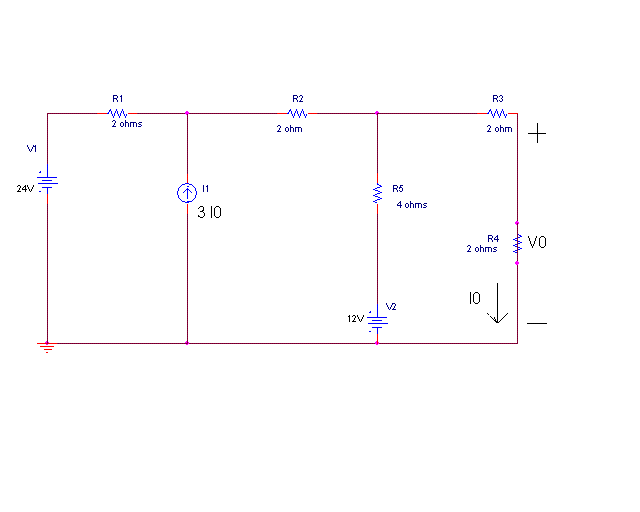

Hello..well i have the figure above and i need to determine V0..

i am using source transformation but at the end,i am ending up with two variables (Io and VO)
so i think i need a way to get I0 but how?

and if i use the node voltage analysis i end up with the same thing
help pelase
thank you


Attachments

  • untitled.GIF
    3.7 KB · Views: 455
Physics news on Phys.org
i am using source transformation but at the end,i am ending up with two variables (Io and VO)

Io = Vo / 2ohm ?
