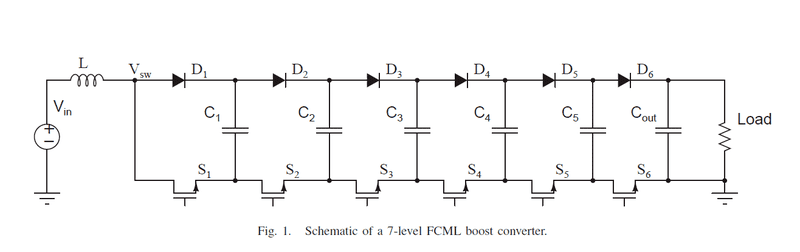

The discussion centers on the voltage balance in capacitors within a circuit described in the paper by Liao et al. (2016). Specifically, it addresses the voltage relationships for capacitors C1 and C2, where C1 has a voltage output of Vout/6 and C2 has 2*Vout/6. The circuit is identified as a variation of voltage multiplier or voltage doubler circuits, which are foundational concepts in electrical engineering.
PREREQUISITESElectrical engineers, circuit designers, and students studying power electronics who are interested in understanding capacitor voltage balancing in advanced converter designs.
Will do. Thanks a lot.anorlunda said:
Your circuit appears to be a variation of "voltage multiplier" or "voltage doubler" circuits. The principles are explained in these articles.
https://en.wikipedia.org/wiki/Voltage_multiplier
https://en.wikipedia.org/wiki/Voltage_doublerRead those first. If you still have questions, post again.
