Electric circuits -- Finding the V-I characteristics of a light bulb

1 reply · 2K views · last reply
Cici2017

Homework Statement

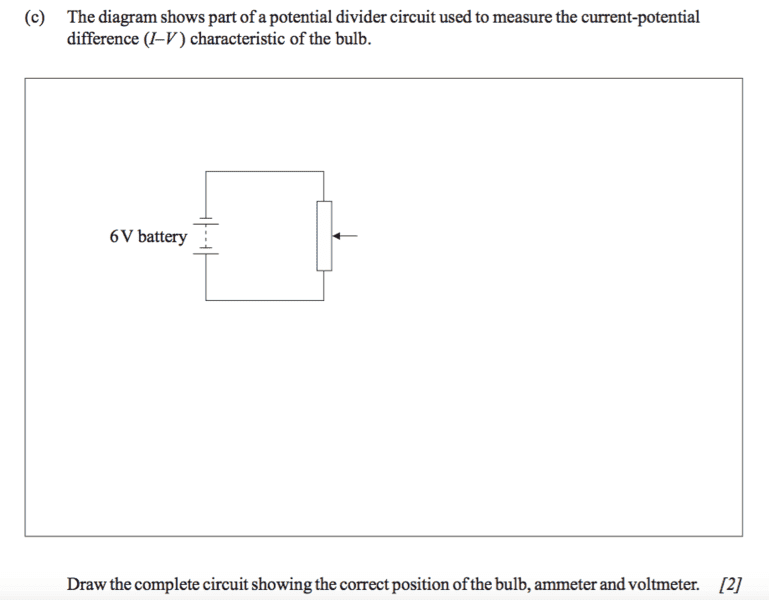

Partial circuit diagram of a potential divider with a 6 V battery on the left, connected by wires to a resistor on the right with a sliding contact arrow, the bulb, ammeter and voltmeter not yet drawn.


Homework Equations

The Attempt at a Solution


I know Ammeter and bulb goes in series and Voltmeters in parallel. But am I supposed to connect the voltmeter to the little arrow on the potential divider, or just across the bulb?
