How are a 2k ohm and 1k ohm resistor in parallel?

2 replies · 2K views · last reply
mike41
Messages
19
Reaction score
0
ok I've been doing some problems but i can't seem to figure out how the top 2k ohm resistor is in parallel with the 1k ohm resistor. can anyone explain this to me?

Attachments

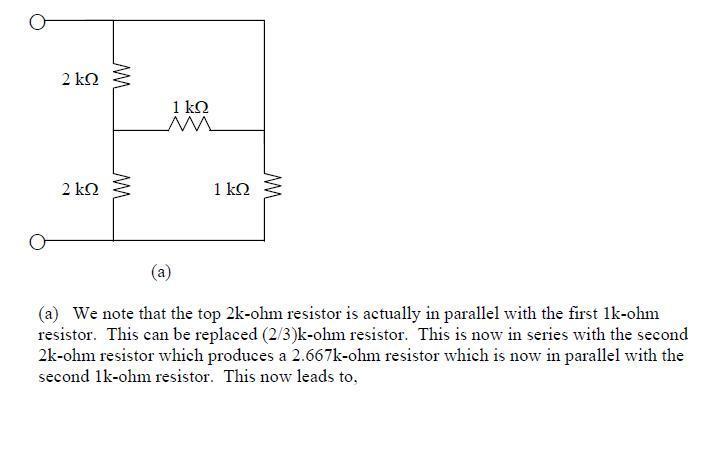

  • Circuit schematic of a resistor network with two terminals on the left: a 2 kΩ resistor on top and a 2 kΩ resistor below, a 1 kΩ resistor in the middle horizontal branch, and a 1 kΩ resistor on the right, with caption (a) below.
    24.2 KB · Views: 429

Discussion

http://dl.dropbox.com/u/4222062/parallel.PNG

Last edited by a moderator:
aha i see. was actually very simple then. thanks a lot.
