How Do You Calculate Reaction Forces in Equilibrium Problems?

  • Thread starter Thread starter tfox
  • Start date Start date
  • Tags Tags
    Equilibrium
Click For Summary
SUMMARY

The discussion centers on calculating reaction forces in equilibrium problems, specifically referencing question #14 from the January 2004 BC Provincial Exam. The correct answer, as indicated by the answer key, is 1.6m. Participants seek clarity on determining the reaction forces at two supports, particularly the implications of tipping on the reaction force at support A.

PREREQUISITES
  • Understanding of static equilibrium principles
  • Knowledge of free body diagrams
  • Familiarity with reaction forces in structural analysis
  • Basic proficiency in physics, particularly mechanics
NEXT STEPS
  • Study the method for drawing and analyzing free body diagrams
  • Learn about calculating moments and their effects on equilibrium
  • Research the concept of tipping points in structural mechanics
  • Explore examples of reaction force calculations in various support scenarios
USEFUL FOR

Students preparing for physics exams, educators teaching mechanics, and engineers involved in structural analysis and design.

tfox
Messages
1
Reaction score
0

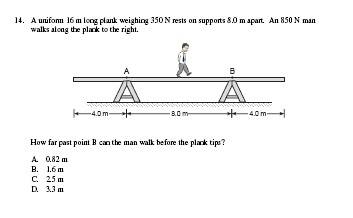

Hi I got this question from the January 2004 BC Provincial Exam. It's question # 14. I have attached the question and picture. The answer key says B which is 1.6m but what is the solution?


Attachments

  • Jan2004 Q # 14.jpg
    Jan2004 Q # 14.jpg
    7.8 KB · Views: 441
Physics news on Phys.org
Do you know how to find the reaction force at each of the two supports?

What do you think happens to the reaction at A when it tips?
