How to calculate spatial resolution from θmin=1.22λ/D

  • Thread starter kenok1216
  • Start date
  • Tags Tags
    Resolution
9 replies · 3K views · last reply
kenok1216
Messages
58
Reaction score
1

Homework Statement

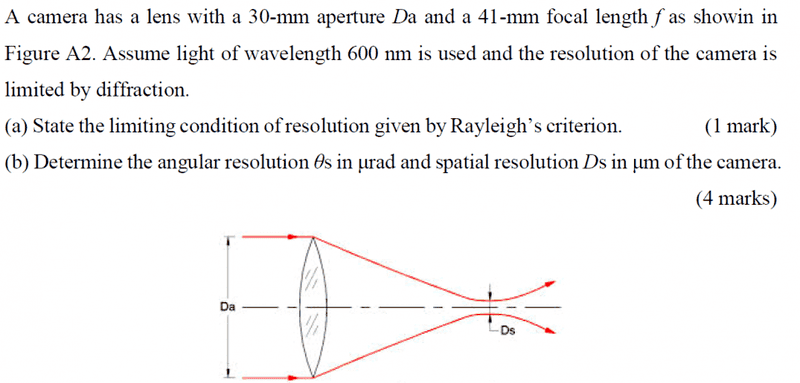

Ray diagram of a camera lens with aperture Da on the left, focusing light to a spot of width Ds at the focal plane on the right, with the red rays converging and crossing the optical axis.


Homework Equations


θmin=1.22λ/D

The Attempt at a Solution


(a)θmin=1.22λ/D
(b)θs=1.22(600nm)/30mm=24.4μm but what is spatial resolution and how to calculate it??

kenok1216 said:

Homework Statement


View attachment 99604

Homework Equations


θmin=1.22λ/D

The Attempt at a Solution


(a)θmin=1.22λ/D
(b)θs=1.22(600nm)/30mm=24.4μm but what is spatial resolution and how to calculate it??
That answer should be in units appropriate for an angle, certainly not μm .

kenok1216 said:
what is spatial resolution and how to calculate it??
It's related to the angular resolution. You can think of the spatial resolution as the arc length of a circle subtended by the angle of angular resolution.

SammyS said:
That answer should be in units appropriate for an angle, certainly not μm .
sor, it is μrad

kenok1216 said:
sor, it is μrad
Yes.

blue_leaf77 said:
It's related to the angular resolution. You can think of the spatial resolution as the arc length of a circle subtended by the angle of angular resolution.
s=rθ, so what is r is this question?object distance? focal length?image distance?

kenok1216 said:
s=rθ, so what is r is this question?object distance? focal length?image distance?
About the circle I was talking about, you can assume it to be centered at the center of the lens and since your image is located at the focal plane, the arc length of interest must touch the focal plane. What will r be?

blue_leaf77 said:
About the circle I was talking about, you can assume it to be centered at the center of the lens and since your image is located at the focal plane, the arc length of interest must touch the focal plane. What will r be?
Focal lenght?

kenok1216 said:
Focal lenght?
Yes.
