MHB How to find currents and voltages with 2 batteries connected?

  • Thread starter Thread starter Logan Land
  • Start date Start date
  • Tags Tags
    Batteries Currents
AI Thread Summary
To analyze a circuit with two connected batteries, it's essential to redraw the schematic and label all currents and voltages across components. The current flows from the negative terminal to the positive terminal of the batteries. Participants suggest using mesh analysis for a systematic approach to determine the values. Alternatively, simplifying the circuit with equivalent components can help clarify the analysis. Ultimately, both methods can be effective depending on the complexity of the circuit.
Logan Land
Messages
83
Reaction score
0

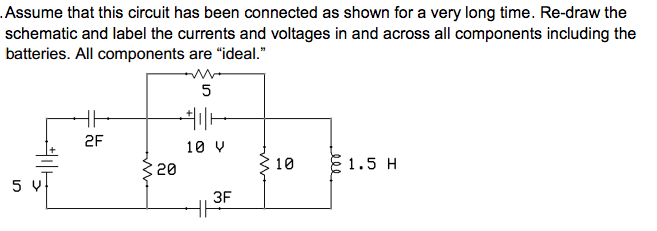

Assume that this circuit has been connected as shown for a very long time. Re-draw the schematic and label the currents and voltages in and across all components including the View attachment 4024batteries. All components are “ideal.”


Attachments

  • Screen Shot 2015-02-24 at 6.08.52 PM.png
    Screen Shot 2015-02-24 at 6.08.52 PM.png
    9.2 KB · Views: 83
Mathematics news on Phys.org
The current runs from the negative side of the battery to the postive correct? So first should I try and replace what I can with equivalent components to clean up the circuit?
or should try try and go ahead and use mesh analysis
