How to find damping ratio from a graph ?

Thread starter Orion_uvw
Start date Apr 25, 2012
Tags

Damping Damping ratio Graph Ratio

In summary, the damping ratio is a measure of energy dissipation in an oscillating system and is important in determining the stability and behavior of the system. It can be identified from a graph by looking at the amplitude of oscillations and can be calculated using the logarithmic decrement method. The damping ratio and natural frequency are inversely related and affect the behavior of a system by determining its stability and response to external forces.

Apr 25, 2012

Orion_uvw

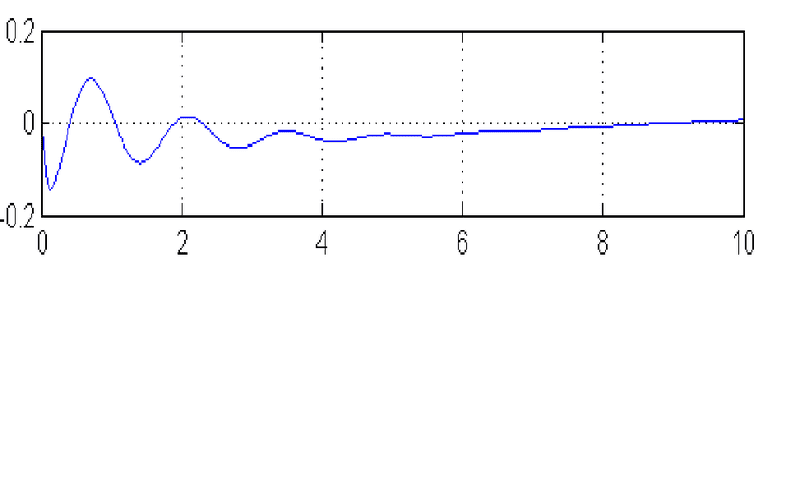

I have a graph. I have all its (x,y) values. How can the damping ratio from this graph ?

Physics news on Phys.org

Apr 25, 2012

Bob S

1) Read http://en.wikipedia.org/wiki/Damping
2) Fit the equation [itex] y(t)=-e^{-at} sin(\omega t) [/itex] to the data.

1. What is damping ratio and why is it important in a graph?

Damping ratio is a measure of the rate at which an oscillating system, such as a mass-spring system, dissipates energy. It is important in a graph because it helps determine the stability and behavior of the system.

2. How can I identify the damping ratio from a graph?

The damping ratio can be identified from a graph by looking at the amplitude of the oscillations. A higher damping ratio will result in smaller and more quickly decreasing oscillations, while a lower damping ratio will result in larger and slower decreasing oscillations.

3. Can the damping ratio be calculated from a graph?

Yes, the damping ratio can be calculated from a graph by using the logarithmic decrement method. This involves measuring the amplitude of two consecutive peaks and plugging the values into a formula to calculate the damping ratio.

4. What is the relationship between damping ratio and natural frequency?

The damping ratio and natural frequency are inversely related. A higher damping ratio will result in a lower natural frequency, meaning the system will oscillate at a slower rate. Conversely, a lower damping ratio will result in a higher natural frequency and faster oscillations.

5. How does the damping ratio affect the behavior of a system?

The damping ratio affects the behavior of a system by determining its stability and response to external forces. A higher damping ratio results in a more stable system that will return to equilibrium faster, while a lower damping ratio can lead to overshooting and instability.
