Improving coupling of a resonator by looking at surface currents

1 reply · 2K views · last reply
yefj
Messages
167
Reaction score
2

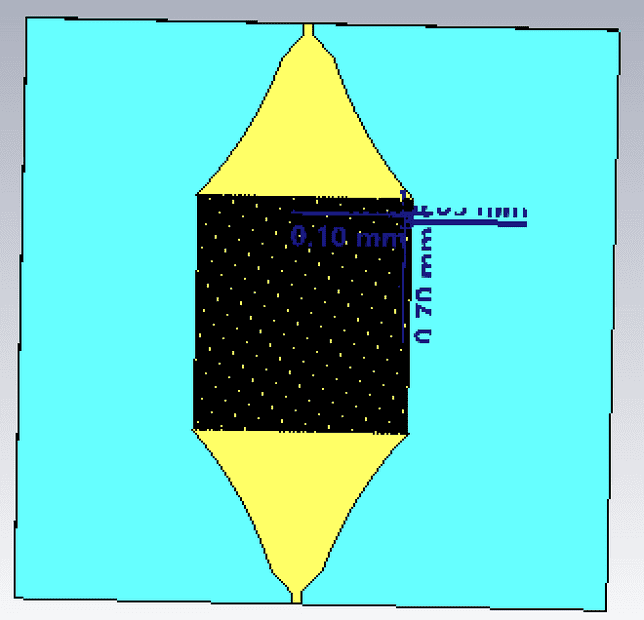

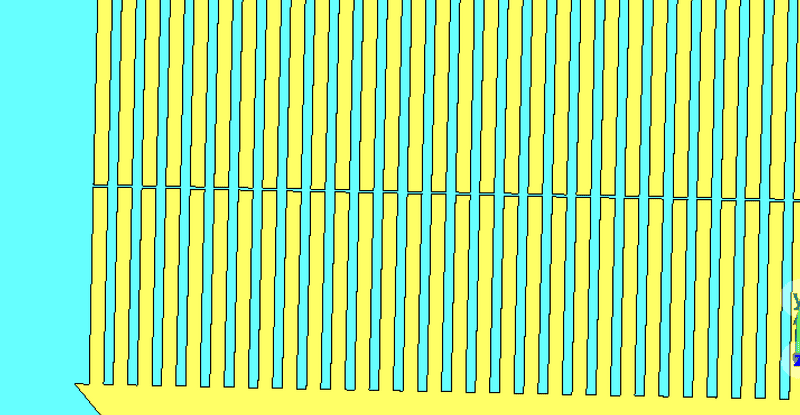

Hello , In the system below there is a mode i am trying to couple.

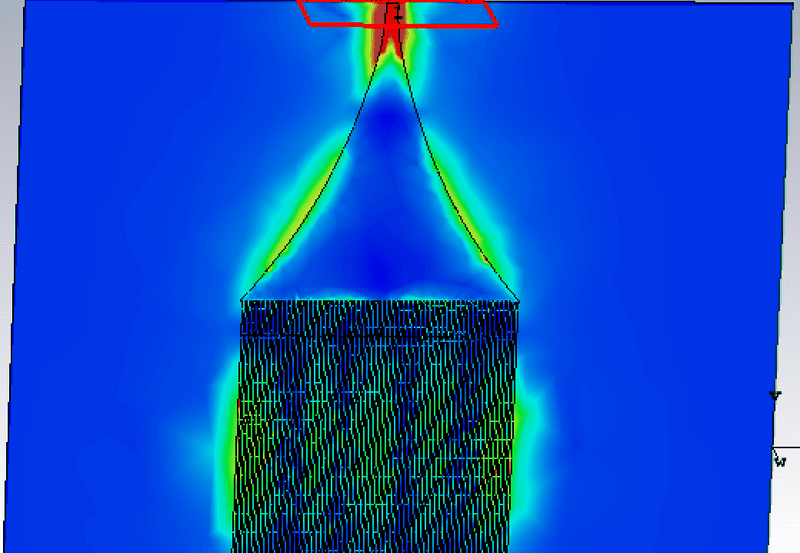

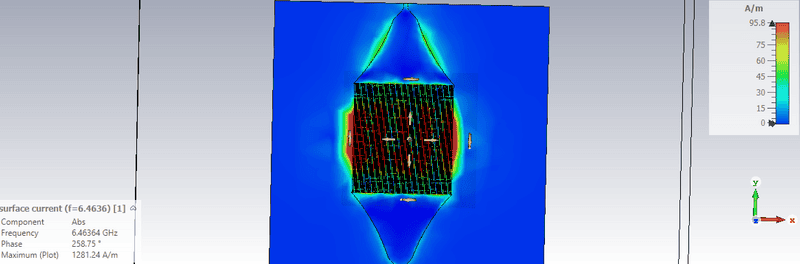

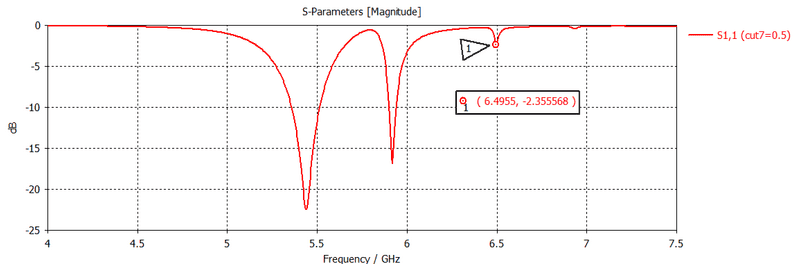

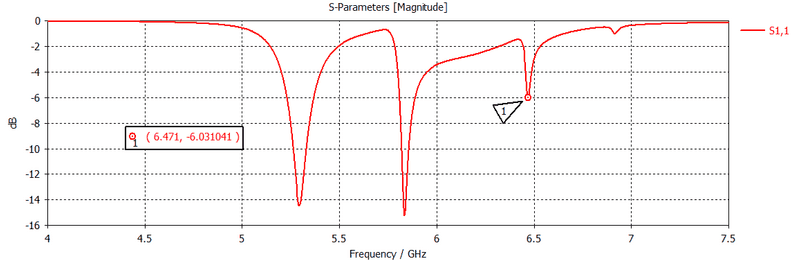

at weak coupling I get a certain surface current responce and in stronger coupling I have different responce as shown below.
How can I see from the surface currents where can i improve the coupling in my model?
