Magnetic levitation with permanent magnets

In summary: direction?well, for a start once the lift to weight ratio has been solved the board could support somones weight, with the lateral motion being controlled the person could propel themselves forward in the same...direction?
  • #1
Mack7963
16
1
so i am literally one step away from producing a floating skateboard powered by permanent magnets,
so here's what i wanted to check, to make sure I haven't missed anything obvious

vertical lift achieved by using vertical repelling fields
rotational motion is controlled by counterbalancing the magnets desire to flip over and attract
Lateral motion controlled by radial magnets
essentially the magnets can't move down, can't flip over and can't move sideways or backwards or forwards, thus leaving the magnet array stationary and suspended.

Physics news on Phys.org
  • #2
Mack7963 said:
to make sure I haven't missed anything obvious
You have missed the other degrees of freedom. Try the same thing on a glass plate, at various heights above the plane of the ring of magnets. Try it without restraining the test magnet's orientation. A hover board hovers. Any magnet will repel upwards is you stop it flipping.

  • #3
Mack7963 said:
so i am literally one step away from producing a floating skateboard powered by permanent magnets

And you'll be one step away forever, I'm afraid. I know you don't believe in Earnshaw's theorem, but it's still a theorem.

  • Like
Likes berkeman and sophiecentaur
  • #5
sophiecentaur said:
You have missed the other degrees of freedom. Try the same thing on a glass plate, at various heights above the plane of the ring of magnets. Try it without restraining the test magnet's orientation. A hover board hovers. Any magnet will repel upwards is you stop it flipping.
thats what the one step away is, getting quotes to have the magnets needed engineered, the requirements are proving costly

  • #7
Vanadium 50 said:
And you'll be one step away forever, I'm afraid. I know you don't believe in Earnshaw's theorem, but it's still a theorem.
if and only if this last part doesn't work, with the dimensions it requires to work, then i will give up and move onto electromagnets :)

  • Like
Likes berkeman
  • #8
Mack7963 said:
yeah I've seen that, but what i figured, especially with magnets is, that if you purposely introduce Newtons third law into the equation, then it let's you approach the problem from a whole new angle
One of the most important lessons I've learned in my very creative and productive engineering career is to look for "non-existence proofs" that can help to keep me from going down an unproductive rabbit hole for way too long in trying to invent something or solve a problem.

I guess a part of that is having enough of a technical background to understand the counterarguments and non-existence proofs. What is your technical background? Do you understand the calculus in the link that I posted? One of the most important reasons that I have the great patents that I have is because I cut short the paths that I was investigating that I found out early-on had valid non-existence proofs, and concentrated my work on the other possible paths.

And BTW, the whole "hoverboard" thing requires a surface to generate a repelling force against, so unless you plan on coating bikepaths with diamagnetic materials, that will probably not be practical, IMO.

Keep on being creative and working on good stuff, but think about more education and more emphasis on early non-existence proof detection. :smile:

  • Like
Likes Asymptotic
  • #9
berkeman said:
And BTW, the whole "hoverboard" thing requires a surface to generate a repelling force against, so unless you plan on coating bikepaths with diamagnetic materials, that will probably not be practical, IMO.

your thinking is a little too literal for me, i would have to be an absolute idiot to think i could make something repel away from the earth, but to have something repel away from a different kind of surface such as a skateboard that can have a means of repulsion attached to it isn't the thinking of an absolute idiot, why coat bike paths when skateboards can quite happily go along them.

  • #10
Mack7963 said:
your thinking is a little too literal for me, i would have to be an absolute idiot to think i could make something repel away from the earth, but to have something repel away from a different kind of surface such as a skateboard that can have a means of repulsion attached to it isn't the thinking of an absolute idiot, why coat bike paths when skateboards can quite happily go along them.
So you wold suspend a overboard over a skateboard? To what end

  • #11
sophiecentaur said:
So you wold suspend a overboard over a skateboard? To what end
well, for a start once the lift to weight ratio has been solved the board could support somones weight, with the lateral motion being controlled the person could propel themselves forward in the same way as a conventional board is used, and lastly magnetic fields move in a very similar way to water, this would create a feeling of riding on a liquid. but mainly cause it would be fun

  • #12
Mack7963 said:
well, for a start once the lift to weight ratio has been solved the board could support somones weight, with the lateral motion being controlled the person could propel themselves forward in the same way as a conventional board is used, and lastly magnetic fields move in a very similar way to water, this would create a feeling of riding on a liquid. but mainly cause it would be fun
Ahh. :smile:

  • Like
Likes Mack7963
  • #13
Do you have a sketch of the proposed setup?

If your arrangement has only permanent magnets, then your levitating magnet has to be supported in at least one degree of freedom, it has to move constantly, or it has to rotate. Otherwise it cannot be stable. This is a very fundamental theorem and it applies to all possible magnet configurations.

  • #14
mfb said:
Do you have a sketch of the proposed setup?

If your arrangement has only permanent magnets, then your levitating magnet has to be supported in at least one degree of freedom, it has to move constantly, or it has to rotate. Otherwise it cannot be stable. This is a very fundamental theorem and it applies to all possible magnet configurations.
mfb said:
Do you have a sketch of the proposed setup?

If your arrangement has only permanent magnets, then your levitating magnet has to be supported in at least one degree of freedom, it has to move constantly, or it has to rotate. Otherwise it cannot be stable. This is a very fundamental theorem and it applies to all possible magnet configurations.

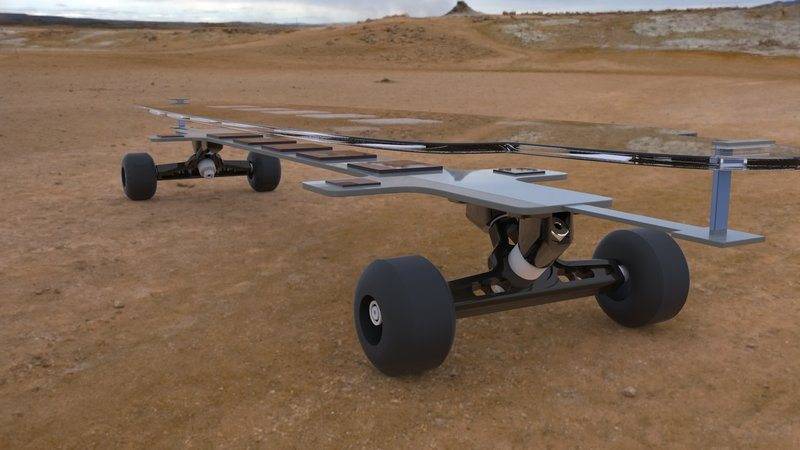

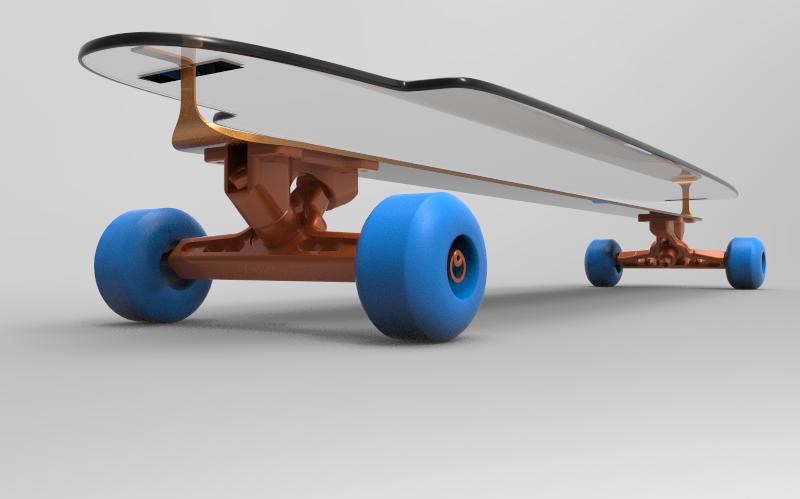

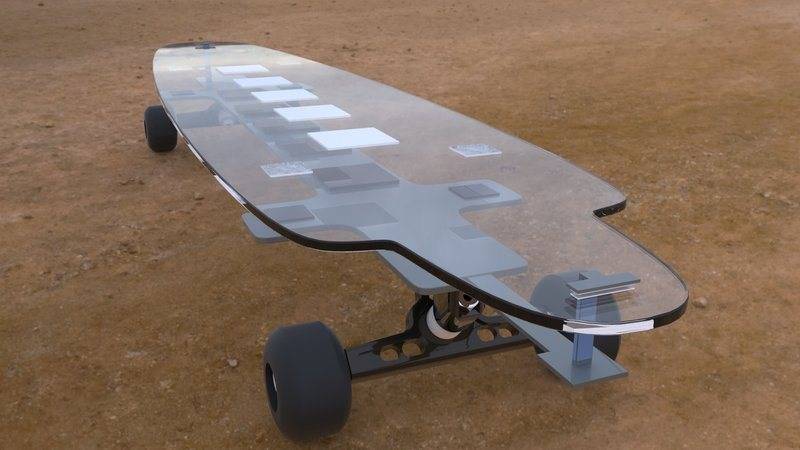

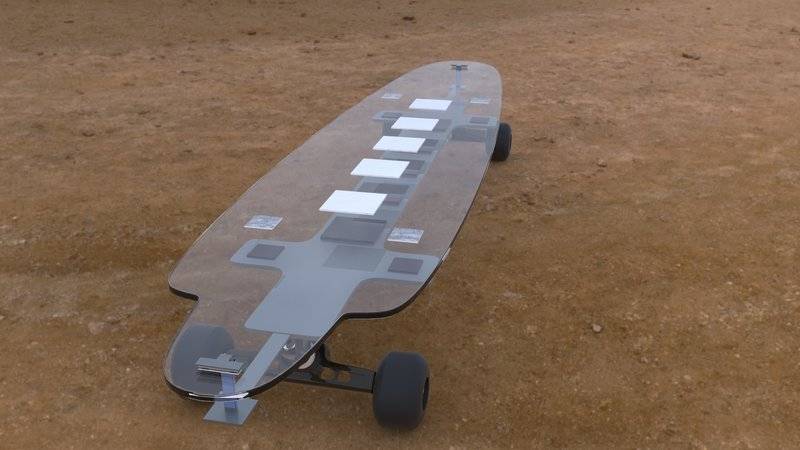

the only thing i have at the moment are renders of the concept, which i have included in this reply, , as far as the stability of the floating board, i have the vertical lift sorted, i have the rotational aspect sorted and i have the lateral control sorted, as i said in an earlier post, i am talking to companies about getting the final magnets engineered, their height is causing major issues, but all potential problems as far as preventing the magnets from attracting has been taken into account
full board 2.jpg
Full Board 03.jpg
full board.jpg
halbach array to surround Vert Post.jpg
RENDER 1 OF MAGBOARD.jpg
RENDER 2 OF MAGBOARD.jpg

  • #15
Ah, it is supported at both ends.

I would expect that there are easier ways to make a "soft" board, but it looks like an interesting concept.

  • #16
mfb said:
Ah, it is supported at both ends.

I would expect that there are easier ways to make a "soft" board, but it looks like an interesting concept.
Spring suspension, comes to mind. I would expect a skateboarder to want a better feel of contact with the ground than a soggy suspension, though. Certainly for tricks.

  • #17
mfb said:
Ah, it is supported at both ends.

So what exactly is levitating?

  • Like
Likes sophiecentaur
  • #18
I was thinking springs as well.

@Mack7963 -- Beautiful work. You could win an Industrial Design award with that kind of work. I don't think the magnet thing will work out for you, but you have a lot of talent in Industrial Design. :smile:

  • #19
Vanadium 50 said:
So what exactly is levitating?
the top board

  • #20
berkeman said:
I was thinking springs as well.

@Mack7963 -- Beautiful work. You could win an Industrial Design award with that kind of work. I don't think the magnet thing will work out for you, but you have a lot of talent in Industrial Design. :smile:
i will take that complement about the design and pay for it with thanks, at this stage its no longer about if it will work or not, now its about getting it to that point where my own eyes see the end result, and above all else its been a learning experience, i know more about magnets now than i did 6 years ago, so even IF it fails, i still walk away from this as a winner...just not a rich one :)

  • #21
sophiecentaur said:
Spring suspension, comes to mind. I would expect a skateboarder to want a better feel of contact with the ground than a soggy suspension, though. Certainly for tricks.
as would i if this were designed to be a trick board, taking into account the downward forces generated on landing and the weight of the rider, the magnets would never last past one trick, this is primarily a cruising board, the sogginess of t supportive magnetic field will give a feeling of riding on a liquid, which is where skateboarding came from, surfers, after seeing the 13 second bounce the top board did when pushed down and released was incredibly similar to the motion of a liquid, it will take some relearning as far as control, but i suspect that will be minimal.
one interesting thing i did discover is that the magnets i was using in the live vertical support test, on the bottom board were able to repel the top board far enough upwards so the board cleared the 12" bolts that were keeping the top board in place, that's the weight of the board and the magnets all being propelled upward, add to that the bolts that were acting as lateral anchors, were threaded, and there were 4 of them. which does open up the possibility of tricks still being able to be done, except the board doesn't spin in mid air...the rider does.

  • #22
Mack7963 said:
will take that complement about the design
Do you have a background in Industrial Design or in Art? Seriously, that is beautiful work. :smile:

  • #23
berkeman said:
Do you have a background in Industrial Design or in Art? Seriously, that is beautiful work. :smile:
i dont, i didnt design the trucks by the way, they were the closest thing to what i wanted i could find in the time i had, i have a very basic working knowledge of a lot of 3d software but no real skill in any of them, the top board and the bottom bar are the only things i designed from scratch.

  • #24
Mack7963 said:
i dont, i didnt design the trucks by the way, they were the closest thing to what i wanted i could find in the time i had, i have a very basic working knowledge of a lot of 3d software but no real skill in any of them, the top board and the bottom bar are the only things i designed from scratch.
The trucks are not the beauty in that design. Nice work. :smile:

  • #25
I wonder if there is a longboard design in your work that you could sell without the magnets part. The transparent board and 2-story deign work so well, and with longboards, you don't have to worry about scratches from tricks. Have you considered making some longboards for general sale without the magnetic floating effect?EDIT/ADD -- I would probably buy one for my son as a gift (he's a longboarder at 22 y/o)

  • #26
berkeman said:
I wonder if there is a longboard design in your work that you could sell without the magnets part. The transparent board and 2-story deign work so well, and with longboards, you don't have to worry about scratches from tricks. Have you considered making some longboards for general sale without the magnetic floating effect?EDIT/ADD -- I would probably buy one for my son as a gift (he's a longboarder at 22 y/o)
to be honest i hadnt, i but with this developing in the way it has i have been playing around with different shapes, with 3d printing so cheap, and the added bonus of the magnetic field that will support the weight will also act like a pillow, in other words, there will be no point that the riders weight will cause a critical failure of the top board because the bubble supports the board equally, that in turn means that boards can be made thinner, haven't done any actual testing yet but from what I've seen so far everything would indicate that if you filled a bag with a viscous liquid and placed a board on the bag, the magnetic bubble would support the board i the same way that the bag of liquid would the object, as far as the long board suggestion, absolutely.

<< Post edited slightly by Mentor >>

Last edited by a moderator:
  • #27
So, i figured that youd like an update on the Leviskate PM, after realising that a radial array of magnets i the configuration i wanted them in was going to cost anywhere from £1500 to £2800 to have made i started to think that it may turn out to be an idea that has zero appeal due to manufacturing cost, then for some reason while i was in rhino designing a second hoverboard it came to me, a way to do exactly the same thing as a radial magnet but without the costs, anyway, basically ill be doing some tests this week and posting them on you tube, the links wil be posted on her,
just as a side note this is what i was designing when the idea for came to me, it was going to be an electromagnet hoverboard, till i found out that if elctromagnets are constantly on they tend to melt, sooo. it would have been so pretty as well :(


Attachments

  • Levisk8 EM 01 blue chrome poss logo.jpg
    Levisk8 EM 01 blue chrome poss logo.jpg
    21.5 KB · Views: 422
  • Levisk8 EM 01 Wood.jpg
    Levisk8 EM 01 Wood.jpg
    26.1 KB · Views: 384
  • Levisk8 EM Like no other 01.jpg
    Levisk8 EM Like no other 01.jpg
    15.9 KB · Views: 439
  • Levisk8 EM Like no other 02.jpg
    Levisk8 EM Like no other 02.jpg
    22.5 KB · Views: 279
