Meshing a multi body part as shown below (ANSYS)

Click For Summary
SUMMARY

The discussion focuses on meshing a multi-body part in ANSYS, specifically addressing the challenges of combining a coarse mesh (3mm element size) with an adaptive fine mesh. The user has attempted to mesh the two blocks but has not achieved the desired results. Key tools mentioned include the ANSYS mesher and ICEM. The conversation emphasizes the need for proper setup and meshing techniques to achieve optimal results.

PREREQUISITES
  • Understanding of ANSYS meshing techniques
  • Familiarity with multi-body part modeling
  • Knowledge of mesh element sizing and adaptation
  • Experience with hex meshing in finite element analysis
NEXT STEPS
  • Explore advanced meshing techniques in ANSYS
  • Learn about adaptive meshing strategies in ICEM
  • Research best practices for combining coarse and fine meshes
  • Investigate troubleshooting methods for ANSYS meshing issues
USEFUL FOR

Engineers and analysts working with finite element analysis in ANSYS, particularly those involved in multi-body part modeling and meshing optimization.

AH515253
Messages
1
Reaction score
0

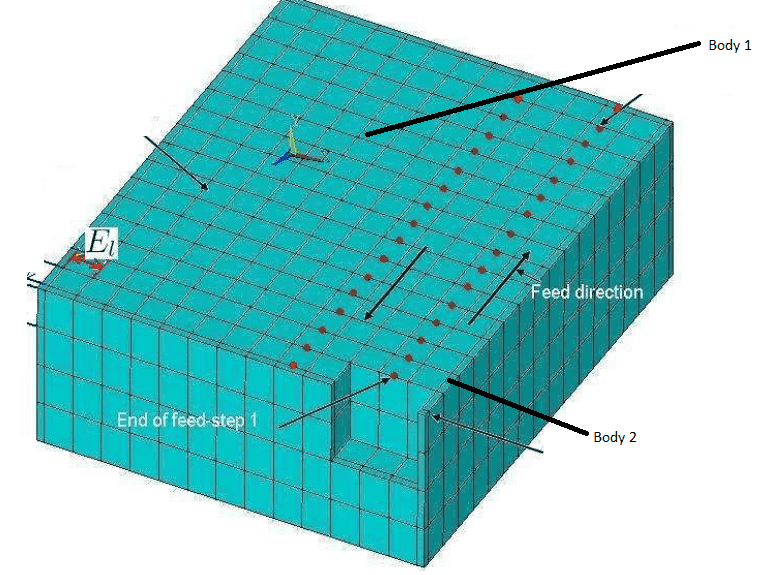

I have one block which i sliced into two blocks and glue them to form one part. so now I have multibody part I want to mesh them as it shown below in the image. Both parts have hex mesh but one body has course mesh and other has fine mesh, For body one size of element is 3mm and other body mesh should be adaptive. I tried meshing multibody part in ansys but it is not given me desired result. can somebody help me please.


Attachments

  • new1.png
    149.8 KB · Views: 632
Engineering news on Phys.org
So, what is your setup, what is the obtained result, and what is the desired result? Which mesher do you use? ICEM? ANSYS mesher?
